Disassemble/assemble center console - AR68.20-P-2150ECM
MODEL 207 as of model year 2014 with CODE 427 (7-speed automatic transmission)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Disassemble/assemble | |||
| 1 | Switch off ignition and remove transmitter key | ||

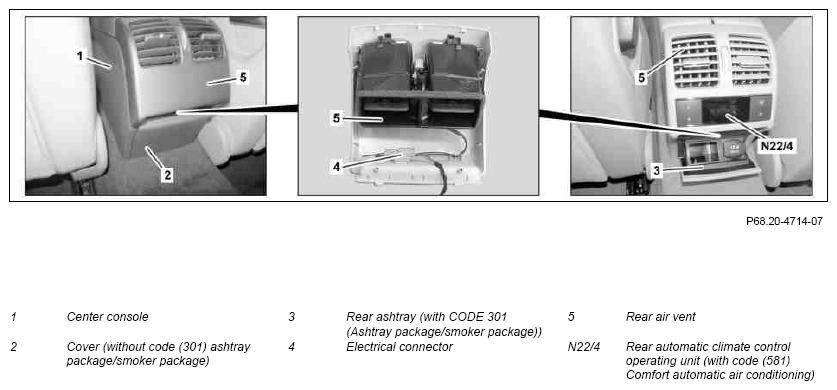

| 2.1 | Unclip cover (2) from center console (1) | MODEL 207 as of model year 2014 with CODE 427 (7-speed automatic transmission) without CODE 301 (Ashtray package/smoker package) |
|
| 2.2 | Remove rear ashtray (3) | MODEL 207 as of model year 2014 with CODE 301 (Ashtray package/smoker package) with CODE 427 (7-speed automatic transmission) |
|
| AR68.20-P-2230CW | |||
| 3 | Remove rear air vent (5) upward from center console (1) and disconnect electrical connector (4) | ||
| 4 | Detach electrical connector (4) from rear automatic air conditioning operating unit (N22) | MODEL 207 as of model year 2014 with CODE 427 (7-speed automatic transmission) with CODE 581 (Comfort automatic air conditioning) |
|
| 5 | Remove rear air vent (5) | ||

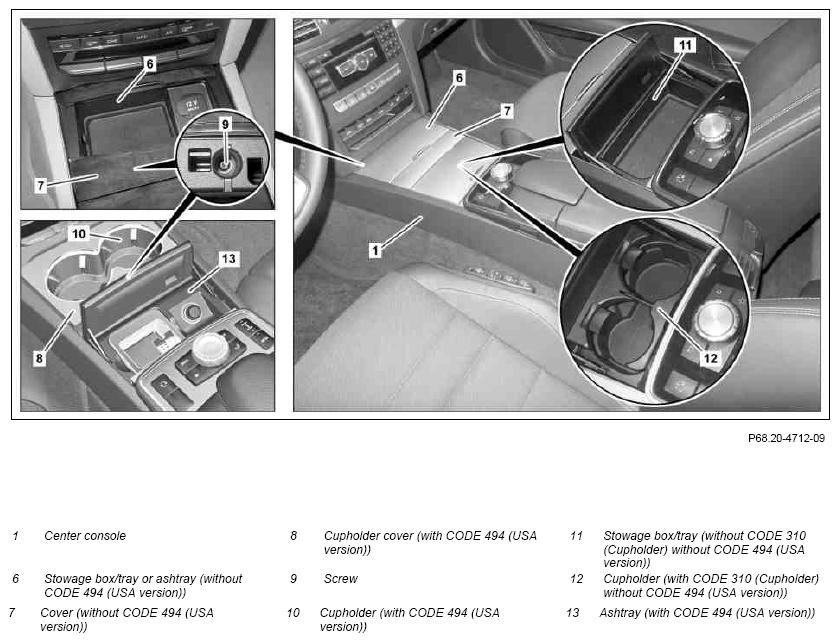

| 6 | Open stowage box/tray (6) or ashtray | MODEL 207 as of model year 2014 with CODE 427 (7-speed automatic transmission) without CODE 494 (US version) |
|
| 7.1 | Unclip cover (7) toward front by hand and remove | MODEL 207 as of model year 2014 with CODE 427 (7-speed automatic transmission) without CODE 494 (US version) |
|
| 7.2 | Unclip and remove cupholder cover (8) | MODEL 207 as of model year 2014 with CODE 427 (7-speed automatic transmission) with CODE 494 (US version) |
|
| 8 | Unscrew screw/bolt (9) | ||
| 9 | Open stowage box/tray (6) or ashtray | MODEL 207 as of model year 2014 with CODE 427 (7-speed automatic transmission) without CODE 494 (US version) |
|
| 10 | Remove cup holder (10) | MODEL 207 as of model year 2014 with CODE 427 (7-speed automatic transmission) with CODE 494 (US version) |
|
| 11.1 | Remove stowage tray (11) | MODEL 207 as of model year 2014 with CODE 427 (7-speed automatic transmission) without CODE 310 (Cup holder) without CODE 494 (US version) |
|
| 11.2 | Remove cup holder (12) | MODEL 207 as of model year 2014 with CODE 310 (Cup holder) with CODE 427 (7-speed automatic transmission) without CODE 494 (US version) |
|
| 11.3 | Remove ashtray (13) | MODEL 207 as of model year 2014 with CODE 427 (7-speed automatic transmission) with CODE 494 (US version) |
|

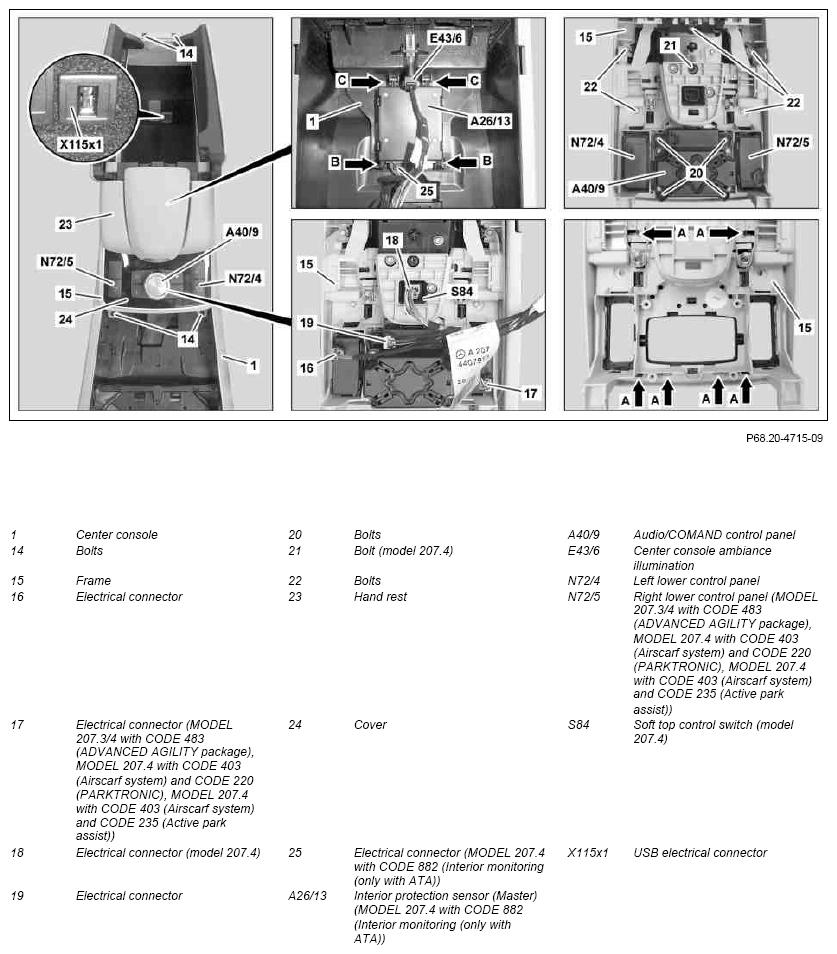

| 12 | Remove screws/bolts (14) | ||
| 13 | Unclip frame (15) from center console (1) and remove until electrical connectors (16, 17, 18, 19) are accessible | ||
| 14 | Disconnect electrical connection (16) | Mark electrical connectors (16, 17). Otherwise the electrical connectors (16, 17) can be mixed up later when installing. |
|
| 15 | Disconnect electrical connector (17) | MODEL 207.4 as of model year 2014 with CODE 220 (PARKTRONIC) with CODE 403 (Airscarf system) with CODE 427 (7-speed automatic transmission) MODEL 207.4 as of model year 2014 with CODE 235 (Active Parking Assist) with CODE 403 (Airscarf system) with CODE 427 (7-speed automatic transmission) MODEL 207 as of model year 2014 with CODE 427 (7-speed automatic transmission) with CODE 483 (ADVANCED AGILITY package) |
|
| 16 | Disconnect electrical connection (18) | MODEL 207.4 as of model year 2014 with CODE 427 (7-speed automatic transmission) |
|
| 17 | Disconnect electrical connector (19) | ||
| 18 | Remove screws/bolts (20) and remove Audio/COMAND control panel (A40/9) | ||
| 19 | Unscrew bolt (21) and remove soft top control switch (S84) | MODEL 207.4 as of model year 2014 with CODE 427 (7-speed automatic transmission) |
|
| 20 | Unclip left lower control panel (N72/4) from frame (15) and remove | ||
| 21 | Unclip right lower control panel (N72/5) from frame (15) and remove | MODEL 207.4 as of model year 2014 with CODE 220 (PARKTRONIC) with CODE 403 (Airscarf system) with CODE 427 (7-speed automatic transmission) MODEL 207.4 as of model year 2014 with CODE 235 (Active Parking Assist) with CODE 403 (Airscarf system) with CODE 427 (7-speed automatic transmission) MODEL 207 as of model year 2014 with CODE 427 (7-speed automatic transmission) with CODE 483 (ADVANCED AGILITY package) |
|
| 22 | Remove screw/bolts (22) | ||
| 23 | Unclip hand rest (23) from frame (15) and remove | ||
| 24 | Unclip cover (24) on catch hooks (arrows A) from frame (15) with suitable screwdriver and remove | ||
| 25 | Remove center console ambiance illumination (E43/6) from optical fiber | ||
| 26 | First unhook interior protection sensor (Master) (A26/13) from pins (arrows B), then from pins (arrows C) | MODEL 207.4 as of model year 2014 with CODE 427 (7-speed automatic transmission) with CODE 882 (Interior monitoring (with ATA [EDW] only)) |
|
| 27 | Disconnect electrical connector (25) and remove interior protection sensor (Master) (A26/13) | MODEL 207.4 as of model year 2014 with CODE 427 (7-speed automatic transmission) with CODE 882 (Interior monitoring (with ATA [EDW] only)) |
|
| 28 | Remove center console (1) | AR68.20-P-2000CW | |
| 29 | Unclip USB electrical connector (X115x1) and remove | ||
| 30 | Remove electrical wiring harnesses from center console (1) | ||
| 31 | Assemble in the reverse order |
