Retrofit reversing camera - AN54.65-P-0030ECM

MODEL 207.3## 1# as of 6/1/13 as of model year 2014 with CODE 512 (COMAND APS with DVD changer) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version)

MODEL 207.3## 1# as of 6/1/13 as of model year 2014 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version)

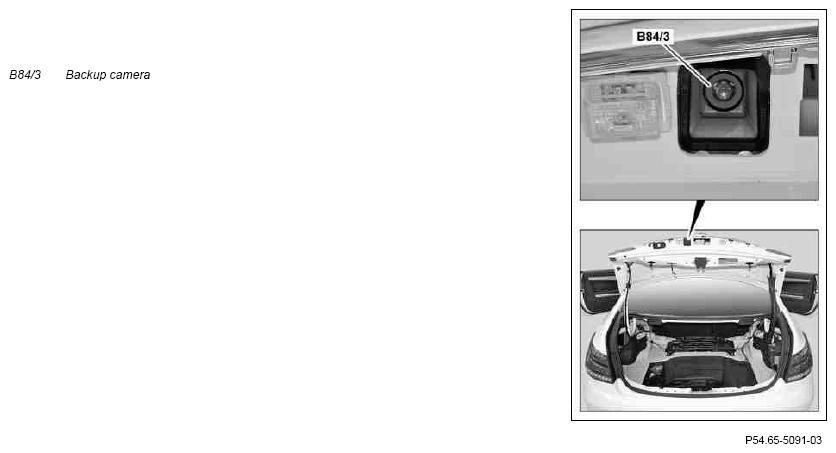

Fig 1: Identifying Backup Camera

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Move drivers seat toward rear
2	Disconnect battery ground line
			AR54.10-P-0003EW
3	Remove cover below left of instrument panel
4	Loosen left front edge guard in the area of the A-pillar cover and in the area of the door sill
5	Remove left door sill molding
6	Remove left front floor covering in footwell
7	Remove COMAND controller unit
			AR82.60-P-7502EW
8	Remove trims in trunk
			AR68.30-P-4600EC
9	Remove handle strip from trunk lid
			AR88.50-P-5062EW
		Remove the trunk lid cover completely. The old trunk lid handle strip is replaced with the trunk lid handle strip contained in the scope of supply.
10	Remove rear side paneling at left of rear passenger compartment
			AR68.30-P-4780ED
	Install
11	Retrofit wiring harness and reversing camera (B84/3)		AN54.65-P-0030-03ECM
		New passenger car wiring harness repair kit	Figure
		Wiring harness repair kit, basic	Figure
12	Install remaining parts
13	Enter special equipment in online vehicle data card using the vehicle documentation system (VeDoc)	Add:  CODE 218 (Reversing camera)
14	Document retrofitted equipment in VeDoc	Attach a note "Reversing camera retrofitted as per AN54.65-P-0030ECM " under field organization texts for DG 54 and DG 88.
15	Connect diagnostic system and select vehicle using vehicle identification number (VIN)
			AD00.00-P-2000-04A
16	Perform variant coding with XENTRY using the software calibration number (SCN)	Variant coding must be carried out with XENTRY using the SCN for the following control unit: "Front SAM control unit with fuse and relay module" "Central gateway (CGW)" "COMAND controller unit"
17	Disconnect diagnostic system
			AD00.00-P-2000-04A
	Check
18	Perform function test	See the operating instructions for the reversing camera (B84/3).

Fig 2: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA
