Remove/Install Charge Air Distributor - AR09.41-P-8683MRH
Engine 264 in model 213, 238, 257
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||

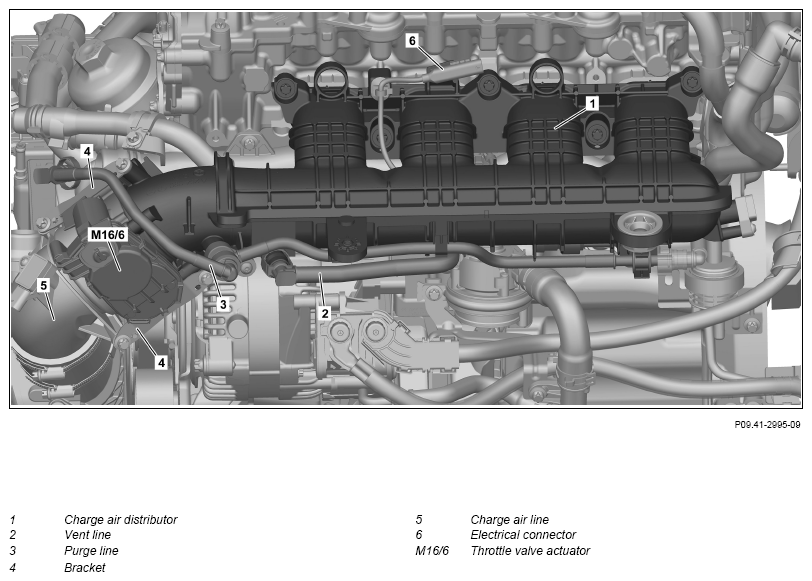

| 1 | Remove air filter housing | AR09.10-P-1150MRH | |
| 2 | Remove the brackets (4) | *BA09.41-P-1003-01ZA | |
| 3 | Release and disconnect throttle valve actuator electrical connection (M16/6) | ||
| 4 | Unclip the electrical lines from the charge air distributor (1) | ||
| 5 | Remove the purge line (3) including purge valve from the charge air distributor (1) | ||
| 6 | Remove the bleed line (2) from the charge air distributor (1) | ||
| 7 | Unlock and disconnect the electrical plug connection for the pressure and temperature sensor downstream of the throttle valve (B28/27) | AR09.41-P-2012MRH | |
| 8 | Unlock and disconnect the electrical plug connections (6) and unclip the electrical cable from the charge air distributor (1) | ||
| 9 | Unscrew the charge air distributor screws (1) in contrary to the direction indicated on the tightening diagram | Tightening procedure for charge air distributor | AR09.41-P-8683-01MRH |
| *BA09.20-P-1001-01H | |||
| 10 | Disassemble and remove the charge air distributor (1) including throttle valve actuator (M16/6) from the charge air line (5) | ||
| 11 | Remove the pressure and temperature sensor downstream of the throttle valve (B28/27) | When replacing the charge-air distributor (1). | AR09.41-P-2012MRH |
| 12 | Remove throttle valve actuator (M16/6) | When replacing the charge-air distributor (1). | AR07.70-P-0005MRH |
| 13 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 14 | Perform an engine test run and check engine for proper operation and leaktightness |
INTAKE MANIFOLD
| Number | Designation | Engine 264 | |
|---|---|---|---|
| BA09.20-P-1001-01H | Screw/bolt, charge air distributor to cylinder head | Nm | 14 |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 264 | |
|---|---|---|---|
| BA09.41-P-1003-01ZA | Bolt, bracket for charge air line to charge-air distributor | Nm | 9 |
