Remove/Install Charge Air Pressure And Temperature Sensor Downstream Of Throttle Valve - AR09.41-P-2012MRH
Engine 264 in model 213, 238, 257

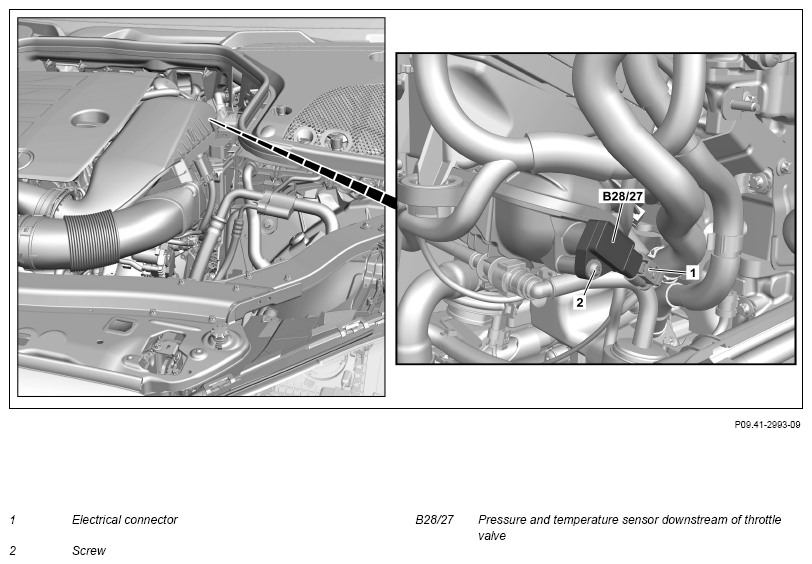

Fig 1: Charge Air Pressure And Temperature Sensor Downstream Of Throttle Valve Components Location - Engine 264 In Model 213
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove center and rear sections of lower engine compartment lining. | Engine 264 in model 257 | AR61.20-P-1105FR |
| Engine 264 in model 213, 238 | AR61.20-P-1105LWE | ||
| 2 | Release electrical connector (1) and disconnect. | ||
| 3 | Remove screw/bolt (2). | *BA09.20-P-1002-01H | |
| 4 | Remove pressure and temperature sensor downstream of throttle valve (B28/27) and seal opening with suitable stop plug. | Fig 2 | |
| 5 | Install in the reverse order. | ||
| 6 | Read out and delete fault memory. | ||
| Engine 264 in model 257 | AD00.00-P-2000-06FR | ||
| Engine 264 in model 213 | AD00.00-P-2000-04B | ||
| Engine 264 in model 238 | AD00.00-P-2000-06LWO |
INTAKE MANIFOLD
| Number | Designation | Engine 264 | |
|---|---|---|---|
| BA09.20-P-1002-01H | Bolt, pressure sensor to charge air distributor | Nm | 6 |
