Remove/Install Front Bumper - AR88.20-P-2000LWE

Model 213, 238

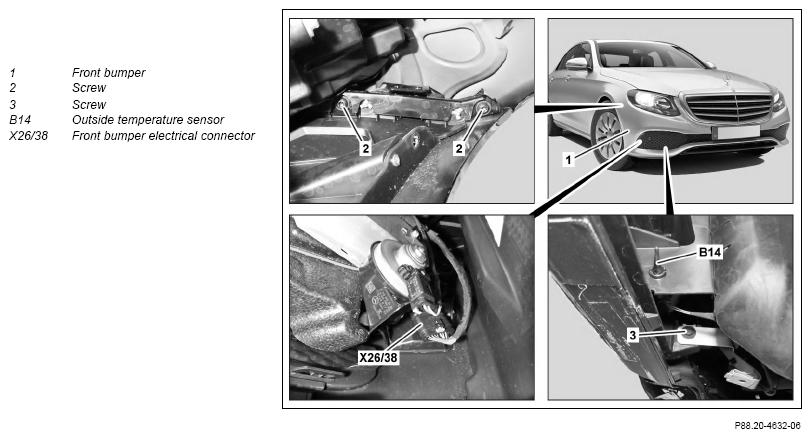

Shown on model 213.045

Courtesy of MERCEDES-BENZ USA

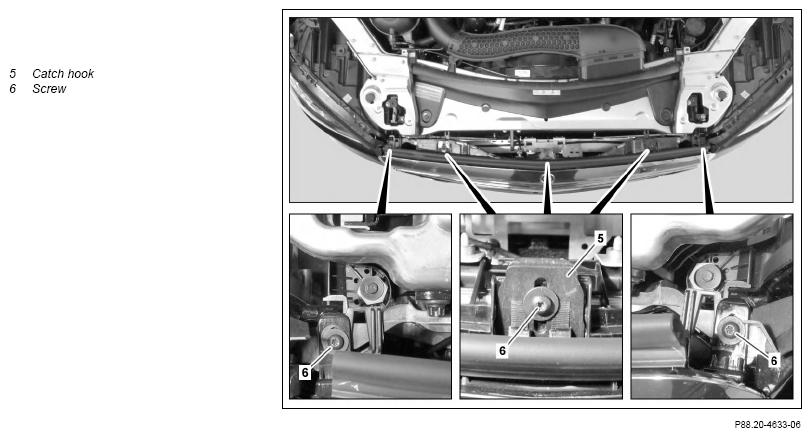

Shown on model 213.045

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

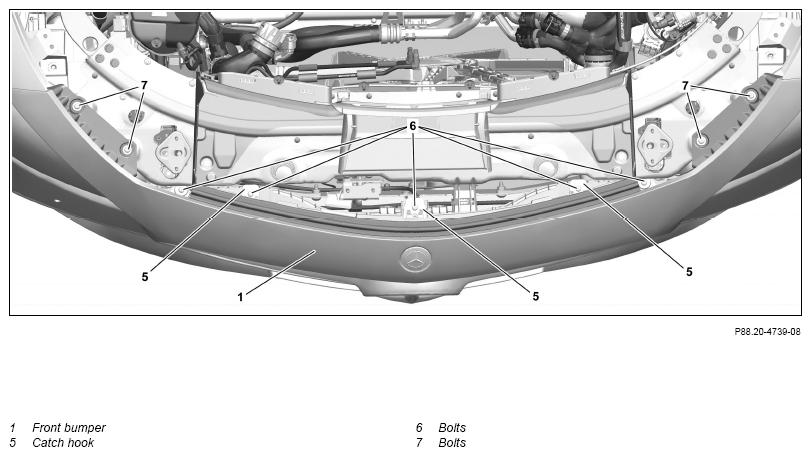

Shown on model 213.088

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Disconnect battery ground line	Model 213	AR54.10-P-0003LW
		Model 238	AR54.10-P-0003LWO
2	Remove Mercedes star	Model 213, 238 with code 233 (DISTRONIC PLUS) Model 213, 238 with code 239 (DISTRONIC PLUS)
			AR88.40-P-4050LW
3	Remove wheel arch liner from front fenders	Model 213.2 with code M035 (Allroad version)	AR88.80-P-0005LWT
4	Remove front engine compartment paneling		AR61.20-P-1105LWE
5	Remove fender liner in left and right front fender from front bumper (1)		AR88.10-P-1300LWE
6	Remove bolts (2) on left and right of front bumper (1)
7	Remove bolts (3) on left and right of front bumper (1)
8	Disconnect front bumper electrical connector (X26/38)
9	Remove outside temperature sensor (B14) from front bumper (1)
10	Remove bolts (7)	Model 213.088/089/288/289 : Tighten bolts (7) only after adjusting the gap dimensions.
11	Remove bolts (6)	: Tighten bolts (6) only after adjusting the gap dimensions.
12	Unlock catch hooks (5) and remove	: Press in catch hooks (5) only to first catch.
13	Disconnect electrical connector from 360° camera at front	Model 213, 238 with code 501 (360° camera)
14	Disconnect electrical connector from AIRPANEL	Model 213 with code 5U3 (AIRPANEL)
15	Remove front bumper (1)	Helper required.
	Check
	General information on the impact absorber		AH88.20-P-1000-01A
16.1	Check impact absorber for damage	Model 213, 238 except code U60 (Active Bonnet (Pedestrian protection)) If damage on impact absorber is visible. ↓ Replace impact absorber.
16.2	Check the pedestrian protection sensor and impact absorber for damage of any kind (cracks, holes, breakovers, etc.)	Model 213, 238 with code U60 (Active Bonnet (Pedestrian protection))
	Notes on pedestrian protection sensor		AH91.60-P-0001-01A
		If damage on impact absorber is visible. ↓ Replace the impact absorber and pedestrian protection sensor.
		If damage on the pedestrian protection sensor is visible. ↓ Replace the pedestrian protection sensor.	AR91.60-P-0950LWE
			AR91.60-P-0950LWE
17	Install in the reverse order
18	Adjust gap dimensions on front bumper (1)		AR88.20-P-2001LW
19	Calibrate front 360° camera using the diagnostic system
		Model 213 with code 501 (360° camera)	AD00.00-P-2000-04B
		Model 238 with code 501 (360° camera)	AD00.00-P-2000-06LWO
