Remove/Install Left High-Pressure Fuel Pump - AR07.02-P-1023MNE

Engine 177 in model 213

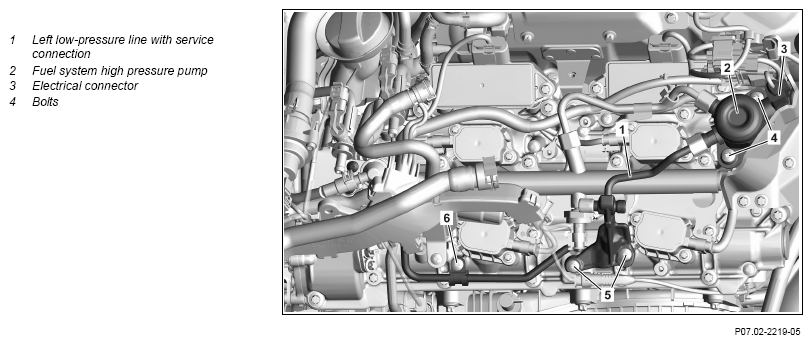

Fig 1: Left High-Pressure Fuel Pump Components Location - Engine 177 In Model 213
G13744305Courtesy of MERCEDES-BENZ USA
  Risk of explosion  caused by fuel igniting.
Risk of injury  to skin and eyes caused by fuel spraying out at high pressure
Keep all ignition sources out of hazard area.
Do not carry out any work on system when it is pressurized.
AS07.16-Z-0001-01A
  Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking.
Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil Wear protective gloves, protective clothing and safety glasses.
Do not fill engine oil into beverage containers.
AS18.00-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
  General information on work on gasoline direct injection system   AH07.00-P-2000-01A

REMOVINGINSTALLING Remove/install
1 Remove left high-pressure line   AR07.03-P-1001MNE
    INSTALLATION IMPORTANT Only install upper engine cover after the leak test.
2 Remove left low-pressure line with service connection (1), and place to one side with hose connection connected   AR07.03-P-1121MNE
3 Release and disconnect electrical connection (3)
4 Clean area around fuel system high-pressure pump (2) NOTES
Thoroughly clean area around fuel system high-pressure pump (2) at points to be disconnected.

    Failure can occur otherwise to the fuel system.
Assembly cleaner
*BR00.45-Z-1028-04A
5 Remove screws/bolts (4) and remove fuel system high-pressure pump (2) upwards NOTES
Screws (4) must be removed or screwed in alternately by a half revolution.
Damage could occur to the fuel system high pressure pump (2) otherwise.
INSTALLATION IMPORTANT: Replace seal.

    TORQUE SPECIFICATION Bolt, fuel system high pressure pump to cylinder head *BA07.02-P-1001-01E
6 Install in the reverse order
7 Read out and erase fault memory
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
8 Check fuel high-pressure circuit for leaktightness   AR07.03-P-1010-04MM
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
9 Perform an engine test run and check engine for proper operation and leak tightness
10 Install upper engine cover   AR01.10-P-2405MNE
INJECTION PUMP, HIGH-PRESSURE FUEL PUMP

Number Designation Engine 177
BA07.02-P-1001-01E Bolt, fuel system high pressure pump to cylinder head Nm 14
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
