Remove/Install Right Charge Air Distributor - AR09.41-P-8685MNE
Engine 177 in model 213
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove engine with front axle carrier | Engine 177 in model 213 with code M005 (4MATIC) | AR01.10-P-2500MNE |
| 2 | Remove charge air coolers | AR09.41-P-6817MNE | |

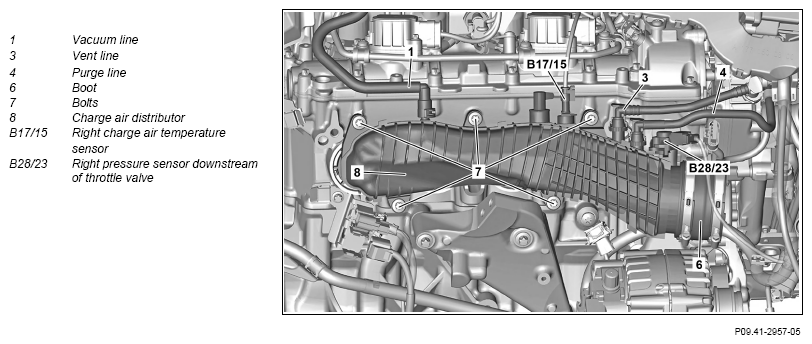

| 3 | Remove vacuum line (1) from charge-air distributor (8) | ||
| 4 | Release and disconnect electrical connector of right charge air temperature sensor (B17/15) | ||
| 5 | Remove vent line (3) from charge-air distributor (8) | ||
| 6 | Remove purge line (4) from charge-air distributor (8) | ||
| 7 | Release and disconnect electrical connector of right pressure sensor downstream of throttle valve (B28/23) | ||
| 8 | Remove screw/bolts (7) | AR09.41-P-8683-01MNE | |
| *BA09.41-P-1004-01X | |||
| 9 | Remove charge-air distributor (8) | ||
| 10 | Remove right pressure sensor downstream of throttle valve (B28/23) | When replacing the charge-air distributor (8). | AR09.41-P-1031MNE |
| 11 | Remove right charge air temperature sensor (B17/15) | When replacing the charge-air distributor (8). | AR09.41-P-0042MNE |
| 12 | Remove boot (6) | When replacing the charge-air distributor (8). |
*BA09.41-P-1002-01X |
| 13 | Remove seal guides from charge-air distributor (8) | When replacing the charge-air distributor (8). | |
| 14 | Install in the reverse order |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.41-P-1002-01X | Bolt, clamp for charge air hose to charge-air distributor | Nm | 6 |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.41-P-1004-01X | Bolt, charge air distributor to cylinder head | Nm | 13 |
