Remove/Install Right Boost Pressure Sensor Downstream Of Throttle Valve - AR09.41-P-1031MNE
Engine 177 in model 213

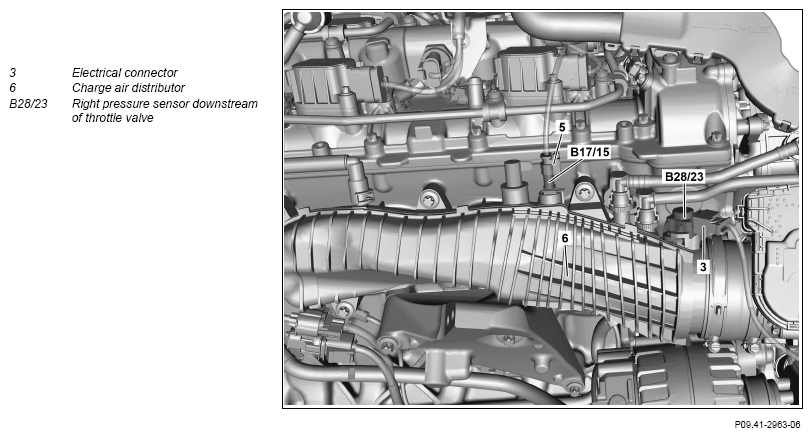

Fig 1: Right Boost Pressure Sensor Downstream Of Throttle Valve Components Location - Engine 177 In Model 213
| Remove/install | |||
| 1 | Remove charge air coolers | AR09.41-P-6817MNE | |
| 2 | Remove expansion reservoir | AR20.30-P-4950MNE | |
| 3 | Remove lower vent line on right oil separator | AR01.20-P-7902MNE | |
| 4 | Remove vent line and purge line on right charge-air distributor (6) | AR09.41-P-8685MNE | |
| 5 | Release and disconnect electrical connection (3) | ||
| 6 | Unscrew screw/bolt and remove right pressure sensor downstream of throttle valve (B28/23) | *BA09.41-P-1005-01X | |
| 7 | Seal opening on charge-air distributor (6) using suitable stop plug | Fig 2 | |
| 8 | Install in the reverse order | ||
| 9 |
Read out and erase fault memory | AD00.00-P-2000-04B | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Perform an engine test run and check engine for proper function |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.41-P-1005-01X | Bolt, boost pressure sensor upstream/downstream of throttle valve | Nm | 6 |
