Adjust Rear Door - AR72.12-P-0650LW

Model 205.0/1/2

Model 213

Model 253

Model 293

Courtesy of MERCEDES-BENZ USA

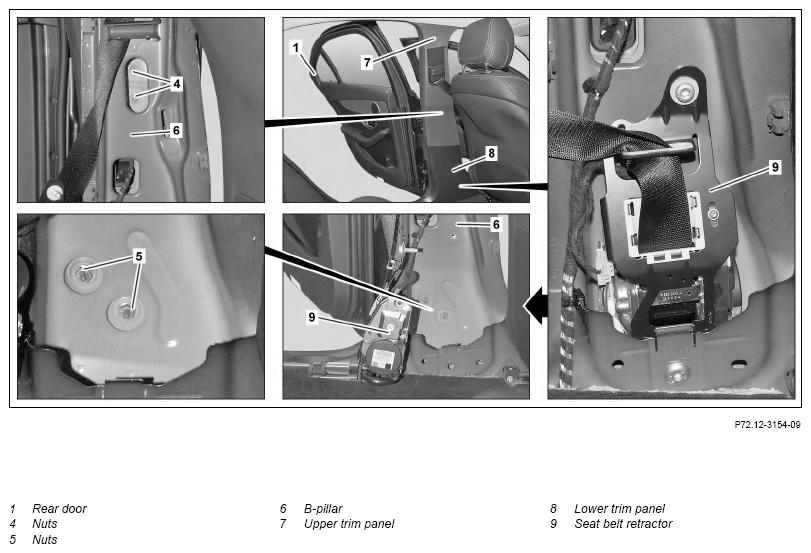

Shown on MODEL 205.0 with Code 299 (PRE-SAFE® system)

Courtesy of MERCEDES-BENZ USA

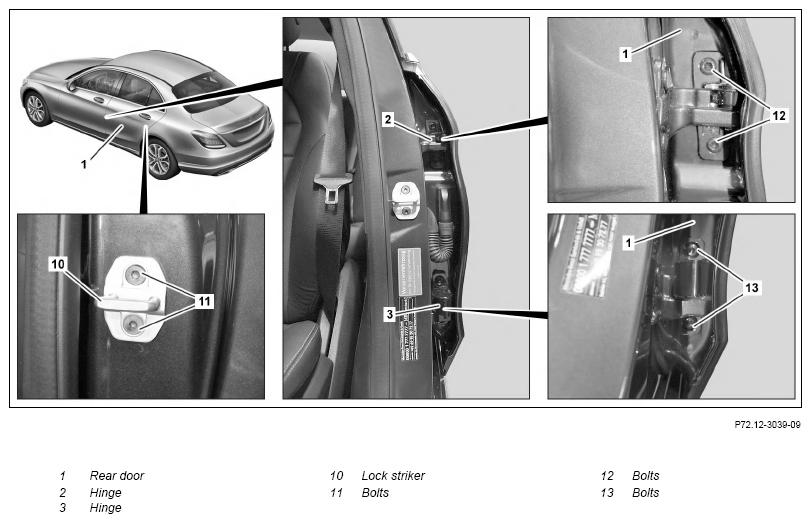

Shown on model 205.0

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Check
1	Check gap dimensions at Rear door (1).	Model 205.0/1/2, 253, 293	AR60.00-P-0700-01LW
		Model 213 Always perform adjustment work on uneven gap dimensions on upper and lower hinge leaves. Otherwise tension and damage can occur.	AR60.00-P-0700-01LWE
		Model 293 Front door to Rear door	*BE60.00-P-1009-01OA
		Model 293 Rear door to side piece	*BE60.00-P-1010-01OA
		Model 293 Front door cover to Rear door cover	*BE60.00-P-1011-01OA
		Model 205.0/1/2 Front door to Rear door	*BE60.00-P-1009-01BB
		Model 205.0/1/2 Rear door to side section, bottom	*BE60.00-P-1010-01BB
		Model 205.0/1/2 Front door cover to Rear door cover	*BE60.00-P-1011-01BB
		Model 213 Front door to Rear door	*BE60.00-P-1008-01GA
		Model 213 Rear door to side section, bottom	*BE60.00-P-1009-01GA
		Model 213 Front door cover to Rear door cover	*BE60.00-P-1010-01GA
		Model 253 Front door to Rear door	*BE60.00-P-1007-01FA
		Model 253 Rear door to side piece	*BE60.00-P-1008-01FA
		Model 253 Front door cover to Rear door cover	*BE60.00-P-1009-01FA
		Feeler gauge	Fig 1
	Remove
2	Move Front seat toward the Front to end position.	When performing adjustment work on hinge halves on B-pillar (6).
3	Release top paneling (7) and remove from working area.	When performing adjustment work on hinge halves on B-pillar (6). Do not remove belt end fitting.	AR68.30-P-4700LW
4	Remove bottom paneling (8).	When performing adjustment work on hinge halves on B-pillar (6).	AR68.30-P-4700LW
5	Release seat belt retractor (9) and remove from working area.	When performing adjustment work on hinge halves on B-pillar (6). Do not disconnect electrical connectors.	AR91.40-P-1010LW
	Adjust
6	Mark position of lock striker (10) relative to C-pillar.
7	Remove screws (11) and remove lock striker (10).
8	Release nuts (4) and nuts (5) at B-pillar (6) alternately.	When performing adjustment work on hinge halves on B-pillar (6). During adjustment ensure that only nuts (4) or nuts (5) are loosened. Otherwise the paint can be damaged when the Rear door (1) comes into contact with other components.
9	Adjust corresponding gap dimensions by moving Rear door (1).	When performing adjustment work on hinge halves on B-pillar (6).
		Model 205.0/1/2, 253, 293	AR60.00-P-0700-01LW
		Model 213 Completely move Rear door (1). Otherwise the paint can be damaged when the Rear door (1) comes into contact with other components.	AR60.00-P-0700-01LWE
		Model 293 Front door to Rear door	*BE60.00-P-1009-01OA
		Model 293 Rear door to side piece	*BE60.00-P-1010-01OA
		Model 293 Front door cover to Rear door cover	*BE60.00-P-1011-01OA
		Model 205.0/1/2 Front door to Rear door	*BE60.00-P-1009-01BB
		Model 205.0/1/2 Rear door to side section, bottom	*BE60.00-P-1010-01BB
		Model 205.0/1/2 Front door cover to Rear door cover	*BE60.00-P-1011-01BB
		Model 213 Front door to Rear door	*BE60.00-P-1008-01GA
		Model 213 Rear door to side section, bottom	*BE60.00-P-1009-01GA
		Model 213 Front door cover to Rear door cover	*BE60.00-P-1010-01GA
		Model 253 Front door to Rear door	*BE60.00-P-1007-01FA
		Model 253 Rear door to side piece	*BE60.00-P-1008-01FA
		Model 253 Front door cover to Rear door cover	*BE60.00-P-1009-01FA
		Feeler gauge	Fig 1
10	Tighten nuts (4) and nuts (5) at B-pillar (6).	When performing adjustment work on hinge halves on B-pillar (6). Nut, hinge to B-pillar	*BA72.12-P-1002-01R
11	Loosen screws (12) and screws (13) on Rear door (1) alternately.	When performing adjustment work on hinge halves on Rear door (1). During adjustment ensure that only bolts (12) or bolts (13) are loosened. Otherwise the paint can be damaged when the Rear door (1) comes into contact with other components.
12	By moving Rear door (1), adjust transition of Front door to Rear door (1) and door position in a vertical direction.	When performing adjustment work on hinge halves on Rear door (1). The contour of the Rear door (1) must align with the contour of the Rear door or project by a maximum of 1 mm.
13	Tighten screws (12) and screws (13) on Rear door (1).	When performing adjustment work on hinge halves on Rear door (1). Screw/bolt, hinge to Rear door	*BA72.12-P-1001-01R
14	Position lock striker (10) at C-pillar and screw in screws (11) up to end stop.	It must still be possible to adjust lock striker (10).
15	Adjust transition between Rear door (1) and C-pillar by moving lock striker (10).	The contour of the Rear door (1) must align with the contour of the C-pillar or project by a maximum of 1 mm.
16	Tighten screws (11) of lock striker (10) at C-pillar.	Bolt, lock striker to C-pillar	*BA72.12-P-1004-01R
	Install
17	Repair paint damage at bolt heads of screws (12, 13).	When performing adjustment work on hinge halves on Rear door (1).
18	Protect Rear door (1) or B-pillar (6) against corrosion in area of both hinges (2, 3).	Wax for engine compartment (400 ml spray can)	*BR00.45-Z-1018-05A
19	Install seat belt retractor (9).	When performing adjustment work on hinge halves on B-pillar (6).	AR91.40-P-1010LW
20	Install bottom paneling (8).	When performing adjustment work on hinge halves on B-pillar (6).	AR68.30-P-4700LW
21	Fasten top paneling (7).	When performing adjustment work on hinge halves on B-pillar (6).	AR68.30-P-4700LW
22	Move Front seat back.	If adjustment work is performed over the hinge leaves on the B-pillar (6).

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA
