Remove/Install Front Seat Belt - AR91.40-P-1010LW

Model 205.0/1/2

Model 213

Model 253

Model 293

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 205.0 with CODE 299 (PRE-SAFE® system)

Courtesy of MERCEDES-BENZ USA

Model 213 with code 581 (Automatic air conditioning)

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
	Risk of injury.  Injury may result when the tension in the spring in the automatic belt retractor is released.	Never disassemble automatic belt retractors.	AS91.00-Z-0002-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Remove B-pillar trim.		AR68.30-P-4700LW
2	Remove retaining clips (10).	Model 213 with code 581 (Automatic air conditioning)

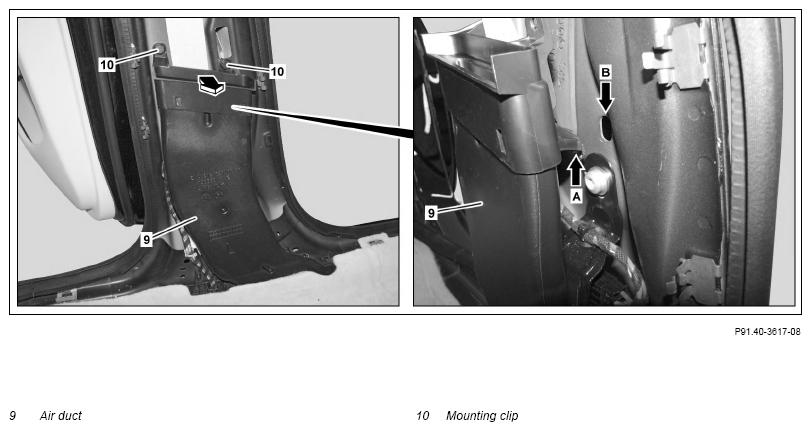

3	Lift air duct (9) and swivel inwards until screws (4, 7) are accessible.	Model 213 with code 581 (Automatic air conditioning) Ensure correct seating of bracket (arrow A) in opening (arrow B).
4	Disconnect ground line from on-board electrical system battery.	Model 293	AR54.10-P-0003EQ
		Model 205.0/1/2 Model 213 Model 253	AR54.10-P-0003LW

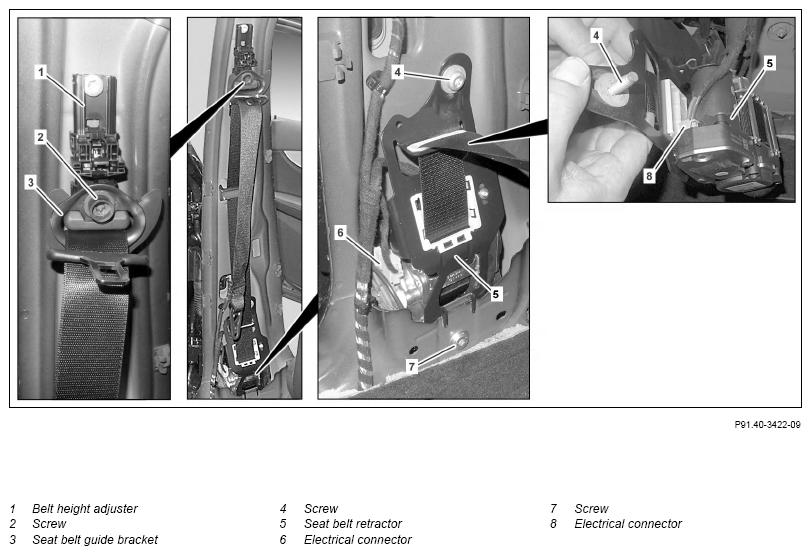

5	Remove bolt (2) and remove seat belt guide bracket (3) from seat belt height adjuster (1).	Bolt, front belt guide bracket	*BA91.40-P-1002-01U
6	Unscrew screw (4).	Model 205.0/1/2, 253, 293 with code 299 (PRE-SAFE® system) Model 213 Bolt, front seat belt retractor	*BA91.40-P-1001-01U
7	Unscrew bolt (7).	Bolt, front seat belt retractor	*BA91.40-P-1001-01U
8	Remove seat belt retractor (5) from B-pillar.
9	Disconnect electrical connector (8).	Model 205.0/1/2, 253, 293 with code 299 (PRE-SAFE® system) Model 213
10	Disconnect electrical connector (6) and remove seat belt retractor (5).
11	Dispose of removed belt retractor (5) properly	When replacing the belt retractor (5).
12	Install in the reverse order.
13	Commission PRE-SAFE® system using vehicle diagnosis system.	Model 205.0/1/2, 253, 293 with code 299 (PRE-SAFE® system) Model 213 When replacing the belt retractor (5).
		Model 293 with code 299 (PRE-SAFE® system)	AD00.00-P-2000-06FR
		Model 205.0/1/2, 253 with code 299 (PRE-SAFE® system)	AD00.00-P-2000-04B
14	Check seat belt slack reduction for proper operation.	Model 205.0/1/2, 253, 293 with code 299 (PRE-SAFE® system) Model 213 Precondition: The function must be activated in the instrument cluster.
