Gap Dimensions On Hoods, Doors And Lids - Ar60.00-P-0700-01LWE

Model 213

CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.0/1 Model 213.2
BE60.00-P-1001-01GA Engine hood to fender Dimension "A" mm 3 (±0, 5) 3 (±0, 5)
For picture, see AR60.00-P-0700-01LWE  AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.0/1 Model 213.2
BE60.00-P-1002-01GA Engine hood to headlamp Dimension "B" mm 5, 2 (±1, 5) 5, 2 (±1, 5)
For picture, see AR60.00-P-0700-01LWE  AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.0/1 Model 213.2
BE60.00-P-1003-01GA Engine hood to radiator trim/soft nose Dimension "C" mm 3, 6 (±0, 8) 3, 6 (±0, 8)
For picture, see AR60.00-P-0700-01LWE  AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.0/1 Model 213.2
BE60.00-P-1004-01GA Protrusion of radiator trim/soft nose, engine hood Dimension "C" 1 (±1) 1 (±1)
For picture, see AR60.00-P-0700-01LWE  AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.0/1 Model 213.2
BE60.00-P-1005-01GA Engine hood to bumper Dimension "D" mm 3, 8 (±1) 3, 8 (±1)
For picture, see AR60.00-P-0700-01LWE  AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.0/1 Model 213.2
BE60.00-P-1006-01GA Bumper to headlamp Dimension "E" mm 2 (±0, 75) 2 (±0, 75)
For picture, see AR60.00-P-0700-01LWE  AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.0/1 Model 213.2
BE60.00-P-1007-01GA Front door to fender Dimension "G" mm 3, 6 (±0, 5) 3, 6 (±0, 5)
For picture, see AR60.00-P-0700-01LWE  AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.0/1 Model 213.2
BE60.00-P-1008-01GA Front door to rear door Dimension "H" mm 3, 9 (±0, 5) 3, 9 (±0, 5)
For picture, see AR60.00-P-0700-01LWE  AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.0/1 Model 213.2
BE60.00-P-1009-01GA Rear door to side section, bottom Dimension "I" mm 3, 3 (±0, 5) 3, 3 (±0, 5)
For picture, see AR60.00-P-0700-01LWE  AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.0/1 Model 213.2
BE60.00-P-1010-01GA Front door cover to rear door cover Dimension "J" mm 4, 3 (±0, 75) 4, 3 (±0, 75)
For picture, see AR60.00-P-0700-01LWE  AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.0/1
BE60.00-P-1011-01GA Trunk lid to fender at rear, top Dimension "K" mm 3, 3 (±0, 8)
For picture, see AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.0/1 Model 213.2
BE60.00-P-1012-01GA Taillamp to bumper Dimension "L" mm 1, 9 (±1, 0) 2, 2 (±1, 0)
For picture, see AR60.00-P-0700-01LWE  AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.0/1
BE60.00-P-1013-01GA Trunk lid to bumper Dimension "M" mm 3, 8 (±1)
Dimension "M1" mm 5, 5 (±1)
For picture, see AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.0/1 Model 213.2
BE60.00-P-1014-01GA Rear sidewall to taillamp Dimension "N" mm 1 (±0, 7) 1 (±0, 7)
For picture, see AR60.00-P-0700-01LWE  AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.0/1 Model 213.2
BE60.00-P-1015-01GA Fuel filler flap Dimension "O" mm 2 (±0, 5) 2 (±0, 5)
For picture, see AR60.00-P-0700-01LWE  AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.2
BE60.00-P-1016-01GA Rear side window to rear triangular window Dimension "P" mm 4, 6 (±1, 0)
For picture, see AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.2
BE60.00-P-1017-01GA Roof to rear spoiler Dimension "Q" mm 4, 9 (±1, 4)
For picture, see AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.2
BE60.00-P-1018-01GA Sidewall to rear spoiler Dimension "R" mm 3, 9 (±1, 3)
For picture, see AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.2
BE60.00-P-1019-01GA Center of liftgate to rear bumper Dimension "U1" mm 5, 5 (±1, 5)
For picture, see AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.2
BE60.00-P-1020-01GA Outside of liftgate to rear bumper Dimension "U2" mm 3, 8 (±1, 0)
For picture, see AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.2
BE60.00-P-1021-01GA Sidewall to liftgate Dimension "S" mm 3, 5 (±0, 8)
For picture, see AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.2
BE60.00-P-1022-01GA Outside of taillamp to inside of taillamp Dimension "T" mm 3, 8 (±1, 0)
For picture, see AR60.00-P-0700-01LWE
Fig 1: Feeler Gauge (129 589 03 21 00)
G07469060Courtesy of MERCEDES-BENZ USA
G13773674Courtesy of MERCEDES-BENZ USA

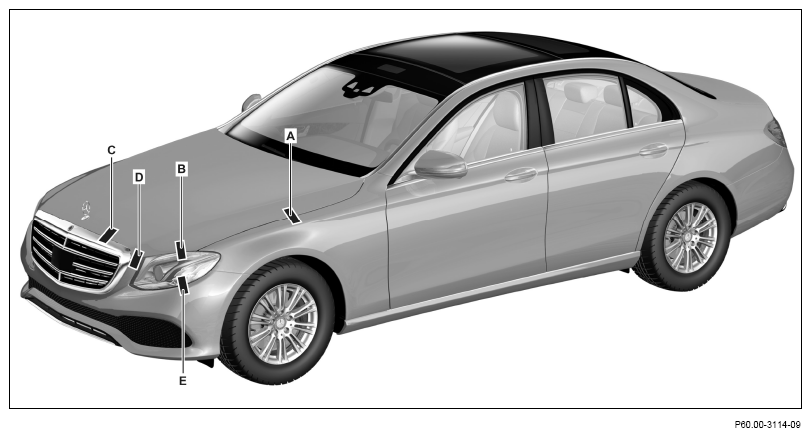

Front gap dimensions, shown on model 213.0

G13773675Courtesy of MERCEDES-BENZ USA

Model 213.0/1 rear and side gap dimensions, shown on model 213.0

G13773676Courtesy of MERCEDES-BENZ USA

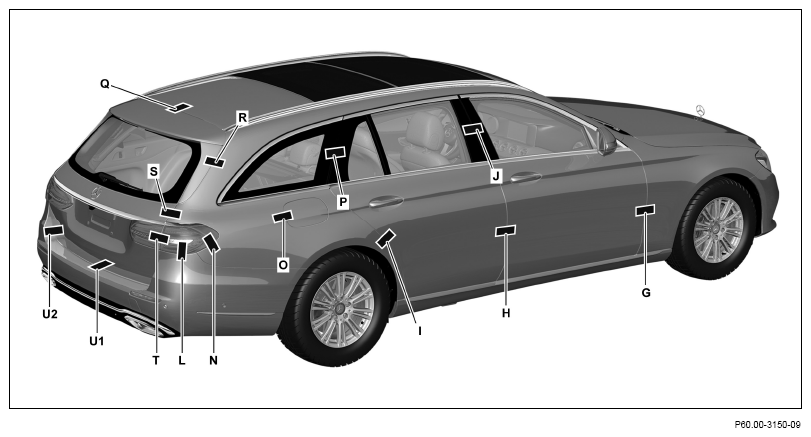

Model 213.2 rear and side gap dimensions

  1. Check gap dimensions on hoods, doors and covers with SPECIAL TOOL feeler gauge as shown in drawings.

    IMPORTANT Adjust hoods, door and cover as shown in drawing.

    The gap should not run wedge-shaped or be too narrow at points. Deviations from parallel gap should be max.

    1 mm over the entire length. If the inside clearance is too large or too small, the movable body parts must be centered accordingly. The reference measurements apply only for repair work on vehicles damaged in accidents.
