Remove/Install Side Paneling In Rear - AR68.30-P-4780LWE

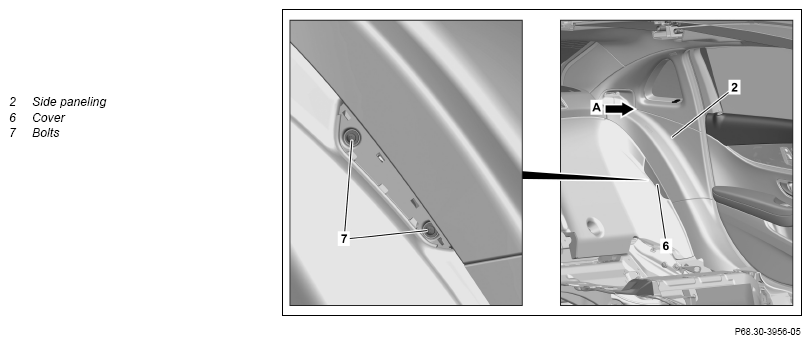

Model 213.0/1

Shown on model 213.0

Shown on model 213.1 except code 293

(Sidebags in rear) and except code 223

(Electrically adjustable rear bench seat)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown on model 213.1 with code 293

(Sidebags in rear) and with code 223

(Electrically adjustable rear bench seat)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Remove seat backrest	Model 213.0 except code 287 (Foldable seat backs in the rear) Model 213.1
		Model 213.0 except code 287 (Foldable seat backs in the rear)	AR91.12-P-1620LW
		Model 213.1 except code 223 (Electrically adjustable rear bench seat)	AR91.12-P-1713LWV
		Model 213.1 with code 223 (Electrically adjustable rear bench seat)	AR91.12-P-1713LWW
1.2	Remove side bolster	Model 213.0 with code 287 (Foldable seat backs in the rear)
			AR91.12-P-1710LW
2	Remove door sill molding (3)		AR68.30-P-4100LW
3	Detach edge guard (1) in area of side paneling (2)
4	Unclip cover (6)	Model 213.1 with code 223 (Electrically adjustable rear bench seat)
5	Remove bolts (7)	Model 213.1 with code 293 (Sidebags in rear)
6	Unscrew nuts (4)	Model 213.1 Only the lower nut (4) is installed.
7	Unclip side paneling (2) on side wall and connection to C-pillar paneling (arrow A) and remove	Model 213.1 Observe installation position of insulation (5). The number and positon of the insulation (5) varies according to equipment.
8	Install in the reverse order
