(Remove/Install Backrest In Rear - AR91.12-P-1713LWV)
Model 213.1
except code 223 (Electric backrest adjustment and head restraints)

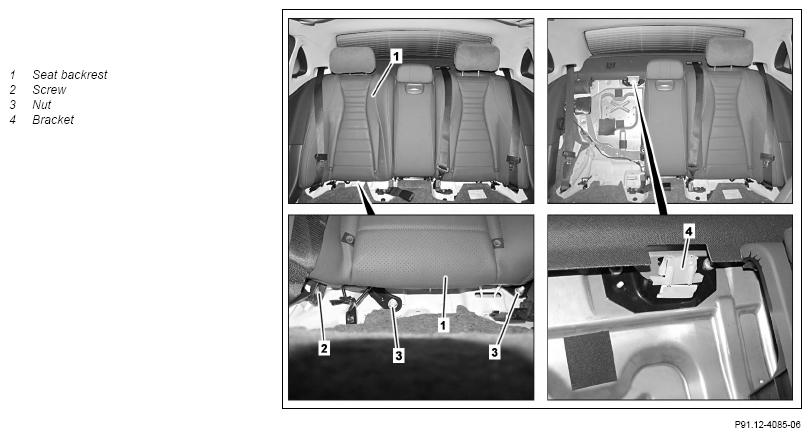

Shown on right side of vehicle
| Remove/install | |||
| 1 | Remove seat cushion | Model 213.1 except code 223 (Electric backrest adjustment and head restraints) except code 248 (Rear seat with integrated child seat) |
AR91.12-P-1020LW |
| 2 | Unscrew bolt (2) | ||
| 3 | Unscrew nuts (3) | ||
| 4 | Expose electrical connector for seat heater and disconnect | Model 213.1 with code 872 (Left and right rear seat heating) except code 223 (Electric backrest adjustment and head restraints) |
|
| 5 | Slide seat backrest (1) upwards and guide out of bracket (4) | ||
| 6 | Remove seat backrest (1) | ||
| 7 | Install in the reverse order |
