Remove Paneling In Trunk - AR68.30-P-4600LW
Model 205.0/1/3
Model 213.0/1

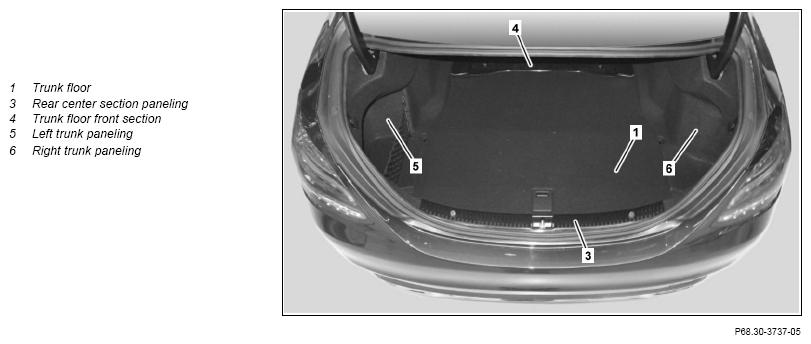

Shown on model 205.0 (except 205.013/047/053/054)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1.1 | Remove trunk floor front section (4). | Model 205.0 (except 205.013/047/053/054), 205.1 (except 205.147), 205.3 Model 213.0 (except 213.016/050/053/054), 213.1 (except 213.153/155) | |
| AR68.80-P-0005LWW | |||
| 1.2 | Remove high-voltage battery cover. | Model 205.013/047/053/054/147 Model 213.016/050/053/054/153/155 | |
| Model 213.050 | AR68.80-P-6000LHV | ||
| Model 205.013/047/053/054/147 | AR68.80-P-6000LWH | ||
| Model 213.016/053/054/153 | |||
| Model 213.155 | AR68.80-P-6000LHW | ||
| 2 | Remove rear-end center section trim (3). | AR68.30-P-4785LW | |
| 3 | Remove left trunk lining (5) and right trunk lining (6). | Model 205.0/1/3 | AR68.30-P-4800LW |
| Model 213.0/1 | AR68.30-P-4800LWE | ||
| 4 | Install in the reverse order. |
