Remove/Install Trunk Floor Front Section - AR68.80-P-0005LWW

Model 205.0 (except 205.013/047/053/054), 205.1 (except 205.147), 205.3, 213.0 (except 213.016/050/053/054), 213.1 (except 213.153/155)

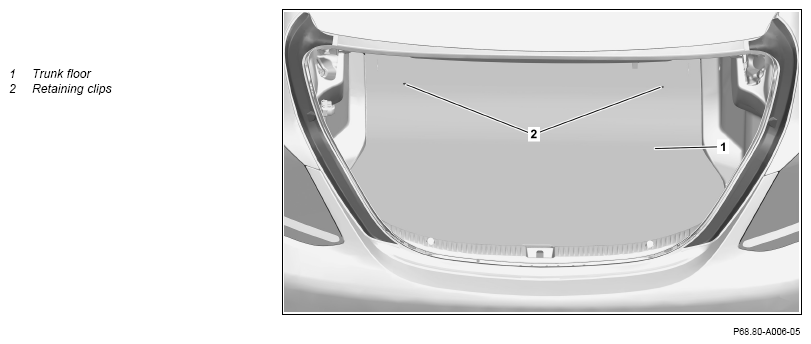

Shown on model 205.0

Courtesy of MERCEDES-BENZ USA

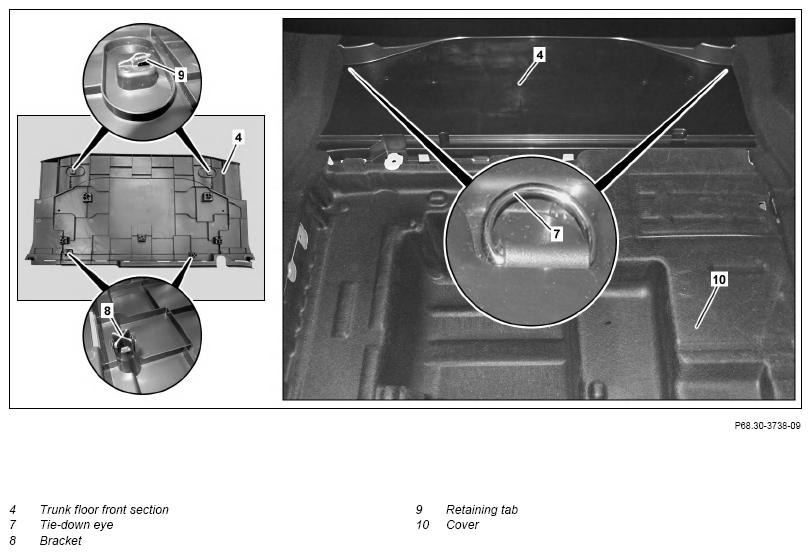

Shown on model 205.0 with code 287 (Folding seat backrests in rear)

Courtesy of MERCEDES-BENZ USA

	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Remove retaining clips (2) and trunk floor (1).	Dismantling tool	Fig 1
2	Remove trim (10).
3.1	Remove tie-down eyes (7).	Model 205.0 (except 205.013/047/053/054), 205.3, 213.0 (except 213.016/050/053/054) with code 287 (Folding seat backrests in rear passenger compartment) Model 205.0 (except 205.013/047/053/054), 205.3, 213.0 (except 213.016/050/053/054) with code 30P (Stowage Space package)
		Model 213.0 (except 213.016/050/053/054) with code 287 (Folding seat backrests in rear passenger compartment)	*BA68.50-P-1001-03J
		Model 213.0 (except 213.016/050/053/054) with code 30P (Stowage Space package) Bolt cargo retainers/tie-down eye to body
		Model 205.0 (except 205.013/047/053/054), 205.3 with code 287 (Folding seat backrests in rear passenger compartment)	*BA68.50-P-1001-03I
		Model 205.0 (except 205.013/047/053/054), 205.3 with code 30P (Stowage Space package) Screw/bolt for tie-down eye
3.2	Remove expansion rivet at trunk floor front section (4).	Model 205.0 (except 205.013/047/053/054), 205.3, 213.0 (except 213.016/050/053/054) except code 287 (Folding seat backrests in rear passenger compartment) Model 205.1 (except 205.147), 213.1 (except 213.153/155) Expansion rivets are installed instead of tie-down eyes (7).
		Dismantling tool	Fig 1
4	Unclip trunk floor front section (4) and remove towards rear.	Ensure that retaining tabs (9) and brackets (8) are seated correctly.
5	Install in the reverse order.

CARGO RETAINERS

Number	Designation		Model 205
BA68.50-P-1001-03I	Screw/bolt for tie-down eye	Nm	24

CARGO RETAINERS

Number	Designation		Model 213.0
BA68.50-P-1001-03J	Bolt, cargo retainers/tie-down eye to body	Nm	24

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA
