Remove/Install Side Paneling In Trunk - AR68.30-P-4800LWE

Model 213.0/1

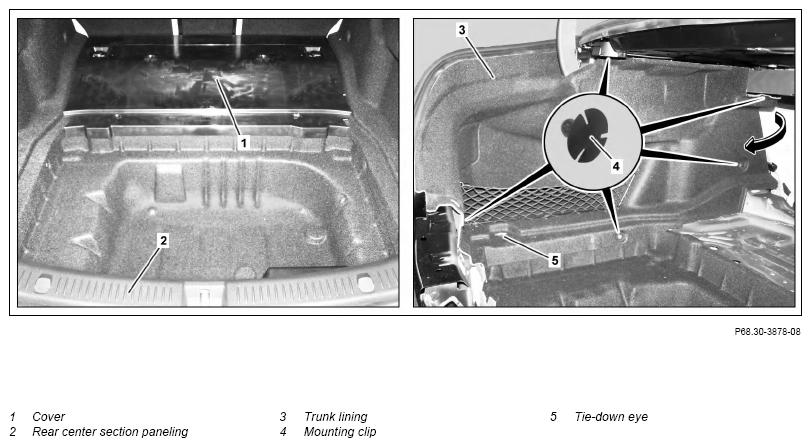

Shown on left side of vehicle on model 213.0 with code 287 (Folding backrest in rear)

Courtesy of MERCEDES-BENZ USA

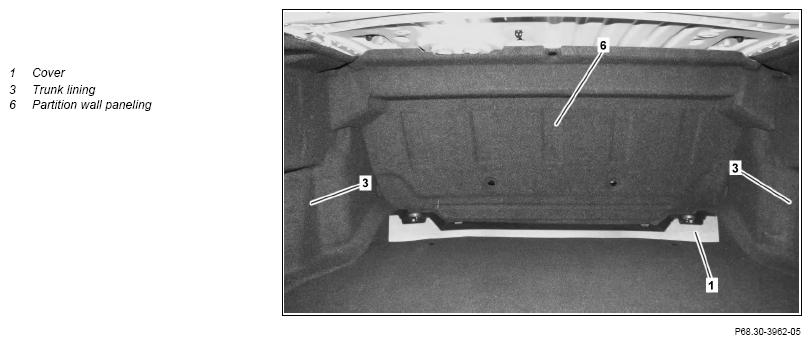

Shown on model 213.1

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Remove rear-end center-section trim (2).		AR68.30-P-4785LW
2.1	Remove cover (1).	Model 213.0 (except 213.016/050/053/054), 213.1 (except 213.153)
			AR68.30-P-4600LW
2.2	Remove high-voltage battery cover.	Model 213.016/053 except code 498 (Japanese version) Model 213.050/054/155
		Model 213.155	AR68.80-P-6000LHW
		Model 213.050	AR68.80-P-6000LHV
		Model 213.016/053 except code 498 (Japanese version)	AR68.80-P-6000LWH
		Model 213.054
3	Remove partition trim (6).	Model 213.0 with code 700 (Vehicle production location China) Model 213.1
4.1	Remove tie-down eye (5).	Model 213.0 with code 287 (Through-loading feature) Model 213.0 with code 30P (Stowage Space package)
		Model 213.0 with code 287 (Through-loading feature)	*BA68.50-P-1001-03J
		Model 213.0 with code 30P (Stowage Space package) Bolt cargo retainers/tie-down eye to body
4.2	Remove expansion rivet at trunk lining (3).	Model 213.0 except code 287 (Through-loading feature) except code 30P (Stowage Space package) Model 213.1 An expansion rivet is installed instead of a tie-down eye (5).
		Dismantling tool	Fig 1
5	Remove retaining clips (4).	Dismantling tool	Fig 1
6	Remove trunk lining (3) from rear to front in direction of arrow.
7	Install in the reverse order.

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)
