Remove/Install Wheel Arch Liner On Front Fender - AR88.80-P-0005LWT

Model 213.2

with code M035 (Allroad version)

Courtesy of MERCEDES-BENZ USA

	Remove
1	Raise vehicle		AR00.60-P-1002LWG

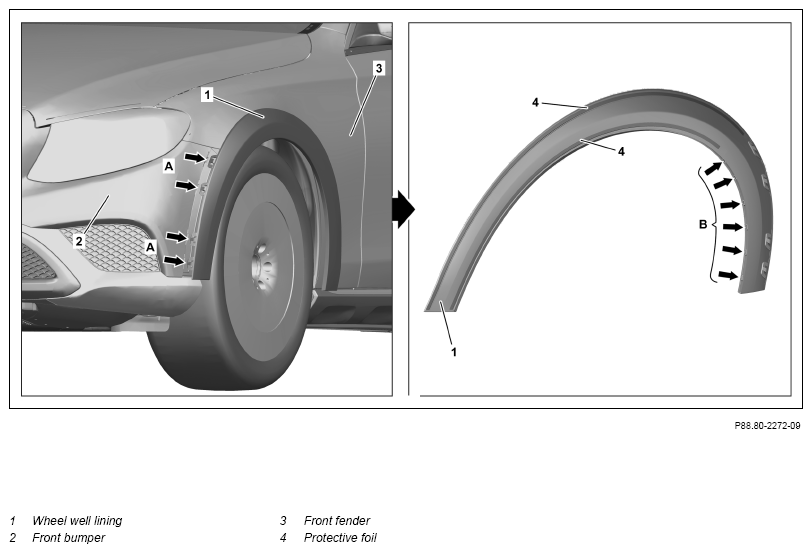

2	Unclip wheel arch liner (1) first from front retaining clips (arrows A) and then from rear retaining clips (arrows b) on front bumper (2)
3	Heat wheel arch liner (1) and detach from front fender (3)
	000 588 00 84 00 Heat gun		WS54.00-P-0049B
		Wheel arch liner (1) is bonded to front fender (3) and must be replaced after removal.
		Mounting wedge	Fig 1
	Clean
4	Remove adhesive residues from front fender (3) and clean bonding surfaces
	Notes on removing adhesive residues and foils on paint and metal surfaces with surface conditioning disks		AH00.00-P-0013-01AK
		Do not touch bonding surfaces with bare fingers and they should be free of dust, oil, grease, wax and other adhesive components or dirt residues. Otherwise the strength of the adhesive connection can be impaired and proper adhesion of the adhesive material is not ensured.
		Observe air drying time for cleaning agent. Cleaner	*BR00.45-Z-1025-04A
	Install
5	Hook new wheel arch liner (1) first into rear retaining clips (arrows B) and then clip into front retaining clips (arrows A) on front bumper (2)
6	Remove protective foils (4) on adhesive strips from wheel arch liner (1) starting in rear area and press on wheel arch liner (1)	When pressing on, press directly on adhesive strips on wheel well liner (1).
7	Lower vehicle		AR00.60-P-1002LWG

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
