Adjust Front Bumper - AR88.20-P-2001LW

Model 205, 213, 238

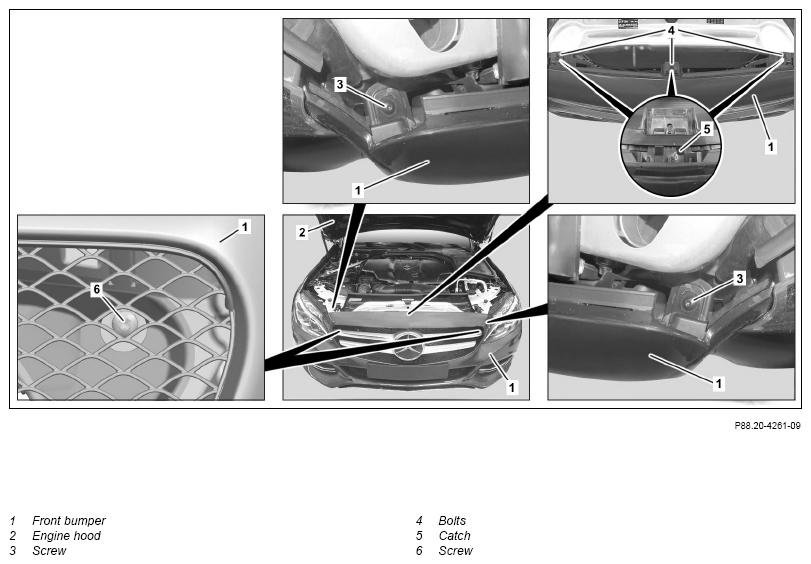

Shown on model 205 with code P76 (Standard equipment, Exterior)

G13747913

Courtesy of MERCEDES-BENZ USA

	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Check
1	Check adjustment of front bumper (1).	Model 205	AR60.00-P-0700-01LW
		Model 213	AR60.00-P-0700-01LWE
		Model 238	AR60.00-P-0700-01LWO
		Model 205 Engine hood to radiator trim/soft nose	*BE60.00-P-1003-01BB
		Model 205 Protrusion of radiator trim/soft nose engine hood	*BE60.00-P-1004-01BB
		Model 205 Engine hood to bumper	*BE60.00-P-1005-01BB
		Model 205 Bumper to headlamp	*BE60.00-P-1006-01BB
		Model 213 Engine hood to radiator trim/soft nose	*BE60.00-P-1003-01GA
		Model 213 Protrusion of radiator trim/soft nose engine hood	*BE60.00-P-1004-01GA
		Model 213 Engine hood to bumper	*BE60.00-P-1005-01GA
		Model 213 Bumper to headlamp	*BE60.00-P-1006-01GA
		Model 238 Engine hood to radiator trim/soft nose	*BE60.00-P-1003-01HA
		Model 238 Protrusion of radiator trim/soft nose engine hood	*BE60.00-P-1004-01HA
		Model 238 Engine hood to bumper	*BE60.00-P-1005-01HA
		Model 238 Bumper to headlamp	*BE60.00-P-1006-01HA
		Feeler gauge	Fig 1
	Adjust
2	Open hood (2).
3	Loosen screws (3, 4).
4	Release front bumper (1) from arrests (5) and pull toward front.
5	Switch on ignition.	Model 205 with code 5U3 (AIRPANEL) The flaps in the radiator trim open after approx. 120 s.
6	Release screws (6).	Model 205 (except 205.064/086/087/264/286/287/364/386/387/464/486/487), 213, 238
7	Close hood (2).
8	Adjust front bumper (1) in relation to hood (2) and headlamps.	Model 205 Engine hood to radiator trim/soft nose	*BE60.00-P-1003-01BB
		Model 205 Protrusion of radiator trim/soft nose engine hood	*BE60.00-P-1004-01BB
		Model 205 Engine hood to bumper	*BE60.00-P-1005-01BB
		Model 205 Bumper to headlamp	*BE60.00-P-1006-01BB
		Model 213 Engine hood to radiator trim/soft nose	*BE60.00-P-1003-01GA
		Model 213 Protrusion of radiator trim/soft nose engine hood	*BE60.00-P-1004-01GA
		Model 213 Engine hood to bumper	*BE60.00-P-1005-01GA
		Model 213 Bumper to headlamp	*BE60.00-P-1006-01GA
		Model 238 Engine hood to radiator trim/soft nose	*BE60.00-P-1003-01HA
		Model 238 Protrusion of radiator trim/soft nose engine hood	*BE60.00-P-1004-01HA
		Model 238 Engine hood to bumper	*BE60.00-P-1005-01HA
		Model 238 Bumper to headlamp	*BE60.00-P-1006-01HA
		Feeler gauge	Fig 1
9	Open hood (2).
10	Tighten screws (3, 4).
11	Tighten screws (6).	Model 205 (except 205.064/086/087/264/286/287/364/386/387/464/486/487), 213, 238
12	Close hood (2).
13	Switch off ignition.	Model 205 with code 5U3 (AIRPANEL)
	Calibrate
14	Calibrate 360° camera with diagnosis system.
		Model 205, 213 with code 501 (360° camera)	AD00.00-P-2000-04B
		Model 238 with code 501 (360° camera)	AD00.00-P-2000-06LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.0/1	Model 205.2
BE60.00-P-1003-01BB	Engine hood to radiator trim/soft nose	Dimension "C"	mm	3, 5 (±1)	3, 5 (±1)
BE60.00-P-1003-01BB	Engine hood to radiator trim/soft nose	For picture, see		AR60.00-P-0700-01LW	AR60.00-P-0700-01LW

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.3	Model 205.4
BE60.00-P-1003-01BB	Engine hood to radiator trim/soft nose	Dimension "C"	mm	3, 5 (±1)	3, 5 (±1)
BE60.00-P-1003-01BB	Engine hood to radiator trim/soft nose	For picture, see		AR60.00-P-0700-01LW	AR60.00-P-0700-01LW

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 213.0/1	Model 213.2
BE60.00-P-1003-01GA	Engine hood to radiator trim/soft nose	Dimension "C"	mm	3, 6 (±0, 8)	3, 6 (±0, 8)
BE60.00-P-1003-01GA	Engine hood to radiator trim/soft nose	For picture, see		AR60.00-P-0700-01LWE	AR60.00-P-0700-01LWE

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3	Model 238.4
BE60.00-P-1003-01HA	Engine hood to radiator trim/soft nose	Dimension "C"	mm	3, 5 (±0, 5)	3, 5 (±0, 5)
BE60.00-P-1003-01HA	Engine hood to radiator trim/soft nose	For picture, see		AR60.00-P-0700-01LWO	AR60.00-P-0700-01LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.0/1	Model 205.2
BE60.00-P-1004-01BB	Protrusion of radiator trim/soft nose, engine hood	Dimension "C"	mm	1 (±1)	1 (±1)
BE60.00-P-1004-01BB	Protrusion of radiator trim/soft nose, engine hood	For picture, see		AR60.00-P-0700-01LW	AR60.00-P-0700-01LW

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.3	Model 205.4
BE60.00-P-1004-01BB	Protrusion of radiator trim/soft nose, engine hood	Dimension "C"	mm	1 (±1)	1 (±1)
BE60.00-P-1004-01BB	Protrusion of radiator trim/soft nose, engine hood	For picture, see		AR60.00-P-0700-01LW	AR60.00-P-0700-01LW

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation		Model 213.0/1	Model 213.2
BE60.00-P-1004-01GA	Protrusion of radiator trim/soft nose, engine hood	Dimension "C"	1 (±1)	1 (±1)
BE60.00-P-1004-01GA	Protrusion of radiator trim/soft nose, engine hood	For picture, see	AR60.00-P-0700-01LWE	AR60.00-P-0700-01LWE

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3	Model 238.4
BE60.00-P-1004-01HA	Protrusion of radiator trim/soft nose, engine hood	Dimension "C1"	mm	1, 5 (±1)	1, 5 (±1)
BE60.00-P-1004-01HA	Protrusion of radiator trim/soft nose, engine hood	For picture, see		AR60.00-P-0700-01LWO	AR60.00-P-0700-01LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.0/1	Model 205.2
BE60.00-P-1005-01BB	Engine hood to bumper	Dimension "D"	mm	4 (±1)	4 (±1)
BE60.00-P-1005-01BB	Engine hood to bumper	For picture, see		AR60.00-P-0700-01LW	AR60.00-P-0700-01LW

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.3	Model 205.4
BE60.00-P-1005-01BB	Engine hood to bumper	Dimension "D"	mm	4 (±1)	4 (±1)
BE60.00-P-1005-01BB	Engine hood to bumper	For picture, see		AR60.00-P-0700-01LW	AR60.00-P-0700-01LW

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 213.0/1	Model 213.2
BE60.00-P-1005-01GA	Engine hood to bumper	Dimension "D"	mm	3, 8 (±1)	3, 8 (±1)
BE60.00-P-1005-01GA	Engine hood to bumper	For picture, see		AR60.00-P-0700-01LWE	AR60.00-P-0700-01LWE

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3	Model 238.4
BE60.00-P-1005-01HA	Engine hood to bumper	Dimension "D"	mm	4, 5 (±1)	4, 5 (±1)
BE60.00-P-1005-01HA	Engine hood to bumper	For picture, see		AR60.00-P-0700-01LWO	AR60.00-P-0700-01LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.0/1	Model 205.2
BE60.00-P-1006-01BB	Bumper to headlamp	Dimension "E"	mm	2 (±1)	2 (±1)
BE60.00-P-1006-01BB	Bumper to headlamp	For picture, see		AR60.00-P-0700-01LW	AR60.00-P-0700-01LW

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.3	Model 205.4
BE60.00-P-1006-01BB	Bumper to headlamp	Dimension "E"	mm	2 (±1)	2 (±1)
BE60.00-P-1006-01BB	Bumper to headlamp	For picture, see		AR60.00-P-0700-01LW	AR60.00-P-0700-01LW

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 213.0/1	Model 213.2
BE60.00-P-1006-01GA	Bumper to headlamp	Dimension "E"	mm	2 (±0, 75)	2 (±0, 75)
BE60.00-P-1006-01GA	Bumper to headlamp	For picture, see		AR60.00-P-0700-01LWE	AR60.00-P-0700-01LWE

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3	Model 238.4
BE60.00-P-1006-01HA	Bumper to headlamp	Dimension "E"	mm	2 (±0, 5)	2 (±0, 5)
BE60.00-P-1006-01HA	Bumper to headlamp	For picture, see		AR60.00-P-0700-01LWO	AR60.00-P-0700-01LWO

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

G07469060

Courtesy of MERCEDES-BENZ USA
