Overview Of System Components Of Parking Assistance Systems - GF54.00-P-9997FQM
MODEL 218
as of year 2015
with CODE 218 (Rear view camera)
with CODE 235 (Active Parking Assist with PARKTRONIC)
with CODE 501 (360° camera)

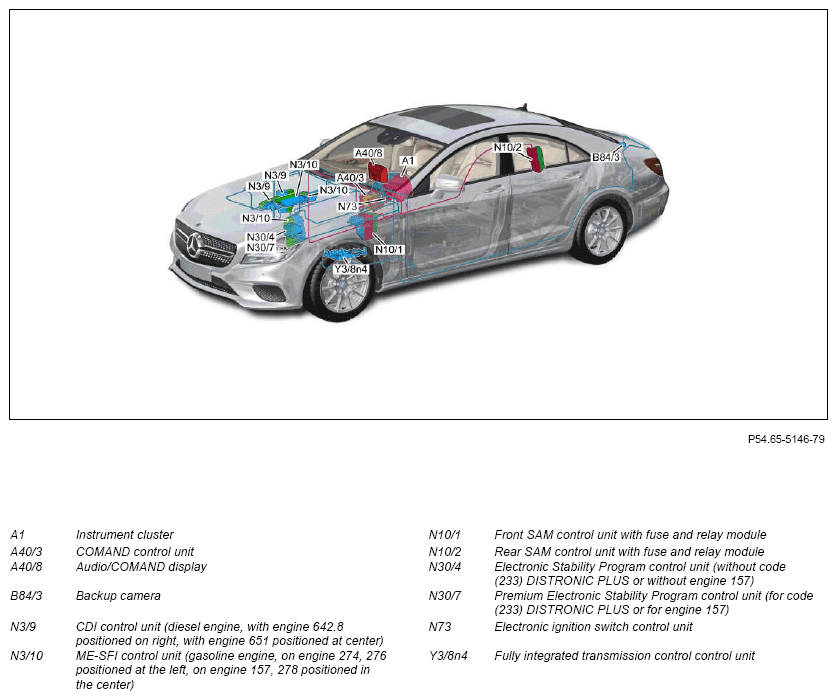

Reversing camera (with code (218) Reversing camera); shown is model 218.3
The following control unit installed in model 218.9 in combination with code (550) Trailer hitch is not shown:
- Trailer recognition control unit (N28/1)

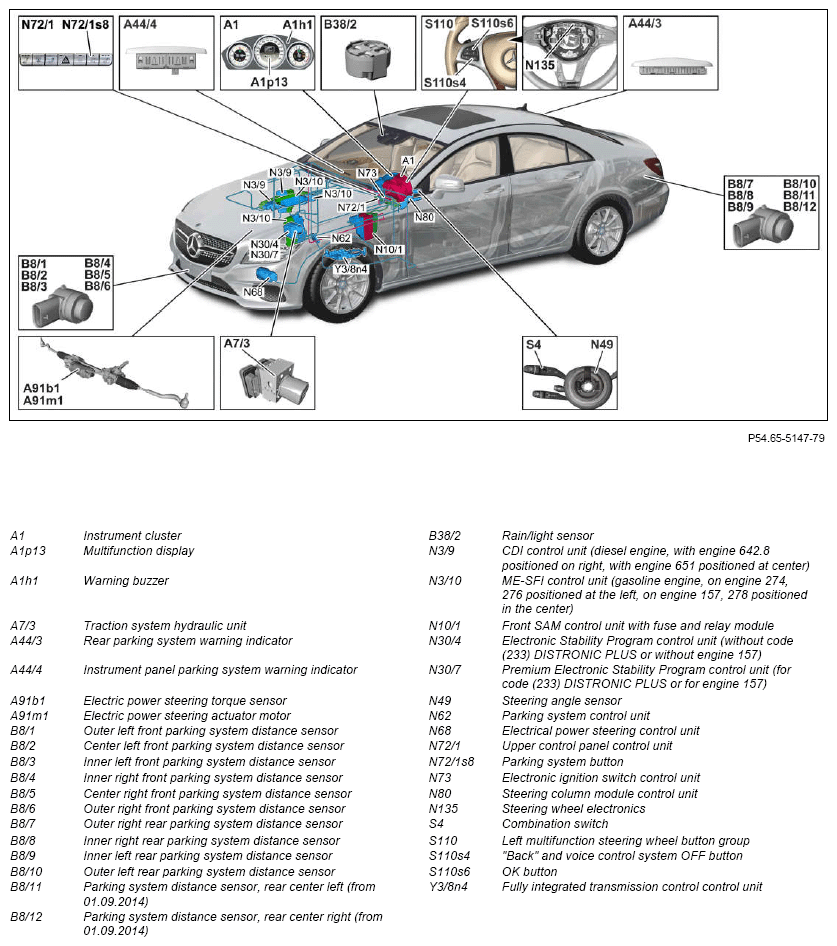

Parking system (with code (235) Active Parking Assist); shown is model 218.3
The following control unit installed in model 218.9 in combination with code (550) Trailer hitch is not shown:
- Trailer recognition control unit (N28/1)

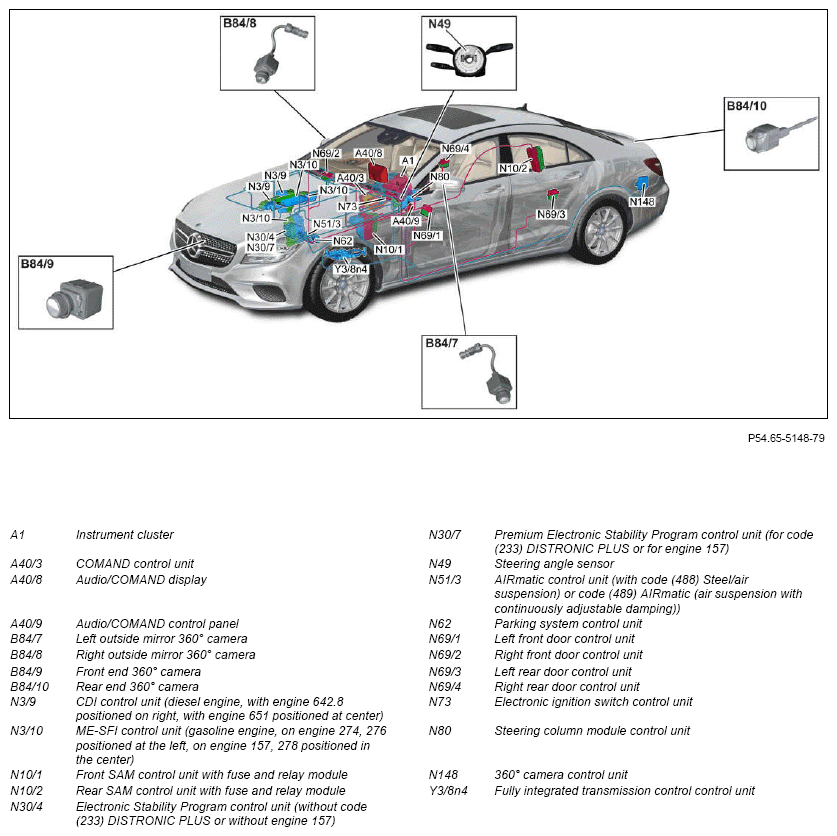

360° camera (with code (501) 360 degree camera); shown is model 218.3
| Component description for instrument cluster | A1 | GF54.30-P-6000FQ | |
| Component description for COMMAND controller unit | Model 218 as of model year 2015 with code 218 (Rear view camera) with code 531 (COMMAND APS) Model 218 as of model year 2015 with code 235 (Active Parking Assist with PARKTRONIC) with code 531 (COMMAND APS) Model 218 as of model year 2015 with code 501 (360° camera) with code 531 (COMMAND APS) A40/3 |
GF82.85-P-3136FQM | |
| Component description for Audio/COMMAND display | Model 218 as of model year 2015 with code 218 (Rear view camera) with code 505 (Radio 20 NTG5, not navigation-enabled) Model 218 as of model year 2015 with code 218 (Rear view camera) with code 522 (Audio 20 radio) Model 218 as of model year 2015 with code 218 (Rear view camera) with code 531 (COMMAND APS) Model 218 as of model year 2015 with code 235 (Active Parking Assist with PARKTRONIC) with code 505 (Radio 20 NTG5, not navigation-enabled) Model 218 as of model year 2015 with code 235 (Active Parking Assist with PARKTRONIC) with code 522 (Audio 20 radio) Model 218 as of model year 2015 with code 235 (Active Parking Assist with PARKTRONIC) with code 531 (COMMAND APS) Model 218 as of model year 2015 with code 501 (360° camera) with code 505 (Radio 20 NTG5, not navigation-enabled) Model 218 as of model year 2015 with code 501 (360° camera) with code 522 (Audio 20 radio) Model 218 as of model year 2015 with code 501 (360° camera) with code 531 (COMMAND APS) A40/8 |
GF54.30-P-6150FQM | |
| Component description for Audio/COMMAND control panel | A40/9 | GF54.21-P-4501FQ | |
| Component description for CDI control unit | Model 218 with engine 642.8 as of model year 2015 with code 218 (Rear view camera) Model 218 with engine 642.8 as of model year 2015 with code 235 (Active Parking Assist with PARKTRONIC) Model 218 with engine 642.8 as of model year 2015 with code 501 (360° camera) N3/9 |
GF07.16-P-6000OG | |
| Model 218 with engine 651.9 as of model year 2015 with code 218 (Rear view camera) Model 218 with engine 651.9 as of model year 2015 with code 235 (Active Parking Assist with PARKTRONIC) Model 218 with engine 651.9 as of model year 2015 with code 501 (360° camera) N3/9 |
GF07.16-P-6000OM | ||
| Component description for ME-SFI (ME) control unit | Model 218 with engine 274.9 as of model year 2015 with code 218 (Rear view camera) Model 218 with engine 274.9 as of model year 2015 with code 235 (Active Parking Assist with PARKTRONIC) Model 218 with engine 274.9 as of model year 2015 with code 501 (360° camera) N3/10 |
GF07.61-P-6000MRB | |
| Model 218 with engine 276.8 as of model year 2015 with code 218 (Rear view camera) Model 218 with engine 276.8 as of model year 2015 with code 235 (Active Parking Assist with PARKTRONIC) Model 218 with engine 276.8 as of model year 2015 with code 501 (360° camera) N3/10 |
GF07.61-P-6000MMP | ||
| Model 218 with engine 276.9 as of model year 2015 with code 218 (Rear view camera) Model 218 with engine 276.9 as of model year 2015 with code 235 (Active Parking Assist with PARKTRONIC) Model 218 with engine 276.9 as of model year 2015 with code 501 (360° camera) N3/10 |
GF07.61-P-6000MM | ||
| Model 218 with engine 157.9 as of model year 2015 with code 218 (Rear view camera) Model 218 with engine 157.9 as of model year 2015 with code 235 (Active Parking Assist with PARKTRONIC) Model 218 with engine 157.9 as of model year 2015 with code 501 (360° camera) Model 218 with engine 278.9 as of model year 2015 with code 218 (Rear view camera) Model 218 with engine 278.9 as of model year 2015 with code 235 (Active Parking Assist with PARKTRONIC) Model 218 with engine 278.9 as of model year 2015 with code 501 (360° camera) N3/10 |
GF07.61-P-6000MMA | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FQ | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030FQ | |
| Component description for trailer recognition control unit | Model 218.9 as of model year 2015 with code 218 (Rear view camera) with code 550 (Trailer coupling) Model 218.9 as of model year 2015 with code 235 (Active Parking Assist with PARKTRONIC) with code 550 (Trailer coupling) Model 218.9 as of model year 2015 with code 501 (360° camera) with code 550 (Trailer coupling) N28/1 |
GF31.19-P-4050FQ | |
| Component description for Electronic Stability Program control unit | N30/4, N30/7 | GF42.45-P-5119FQA | |
| AIRMATIC control unit, component description | Model 218 as of model year 2015 with code 218 (Rear view camera) with code 488 (Steel/air suspension) except code 489 (AIRMATIC) Model 218 as of model year 2015 with code 218 (Rear view camera) with code 489 (AIRMATIC) except code 488 (Steel/air suspension) Model 218 as of model year 2015 with code 235 (Active Parking Assist with PARKTRONIC) with code 488 (Steel/air suspension) except code 489 (AIRMATIC) Model 218 as of model year 2015 with code 235 (Active Parking Assist with PARKTRONIC) with code 489 (AIRMATIC) except code 488 (Steel/air suspension) Model 218 as of model year 2015 with code 488 (Steel/air suspension) with code 501 (360° camera) except code 489 (AIRMATIC) Model 218 as of model year 2015 with code 489 (AIRMATIC) with code 501 (360° camera) except code 488 (Steel/air suspension) N51/3 |
GF32.22-P-5109FQA | |
| Parking system control unit component description | Model 218 as of model year 2015 with code 235 (Active Parking Assist with PARKTRONIC) N62 |
GF54.65-P-5002FQM | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010FQA | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FQ | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FQ | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021FQ | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040FQ | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FQ | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051FQ | |
| Component description for tire pressure monitor control unit | Model 218 as of model year 2015 with code 218 (Rear view camera) with code 475 (Tire pressure monitoring system) SchraderModel 218 as of model year 2015 with code 235 (Active Parking Assist with PARKTRONIC) with code 475 (Tire pressure monitoring system) SchraderModel 218 as of model year 2015 with code 475 (Tire pressure monitoring system) with code 501 (360° camera) Schrader N88 |
GF40.15-P-5124FQA | |
| Component description for 360 degree viewing system control unit | Model 218 as of model year 2015 with code 501 (360° camera) N148 |
GF54.65-P-5003FQM | |
| Component description for fully integrated transmission control unit | Model 218 with transmission 722.9 (except 722.931) as of model year 2015 with code 218 (Rear view camera) Model 218 with transmission 722.9 (except 722.931) as of model year 2015 with code 235 (Active Parking Assist with PARKTRONIC) Model 218 with transmission 722.9 (except 722.931) as of model year 2015 with code 501 (360° camera) Y38n4 |
GF27.60-P-5165AHQ | |
| Model 218 with transmission 722.931 as of model year 2015 with code 218 (Rear view camera) Model 218 with transmission 722.931 as of model year 2015 with code 235 (Active Parking Assist with PARKTRONIC) Model 218 with transmission 722.931 as of model year 2015 with code 501 (360° camera) Y38n4 |
GF27.60-P-5165AHR | ||
| Model 218 with transmission 725.0 as of model year 2015 with code 218 (Rear view camera) Model 218 with transmission 725.0 as of model year 2015 with code 235 (Active Parking Assist with PARKTRONIC) Model 218 with transmission 725.0 as of model year 2015 with code 501 (360° camera) Y38n4 |
GF27.60-P-5165ANB | ||
| Table of contents for function description of parking assistance systems | GF54.00-P-0997FQM |
