Component Description For Audio/Command Display - GF54.30-P-6150FQM

MODEL 218 as of 9/1/14

with CODE 505 (Radio 20 NTG5, not navigation-enabled)

with CODE 522 (Audio 20 radio)

with CODE 531 (COMMAND APS)

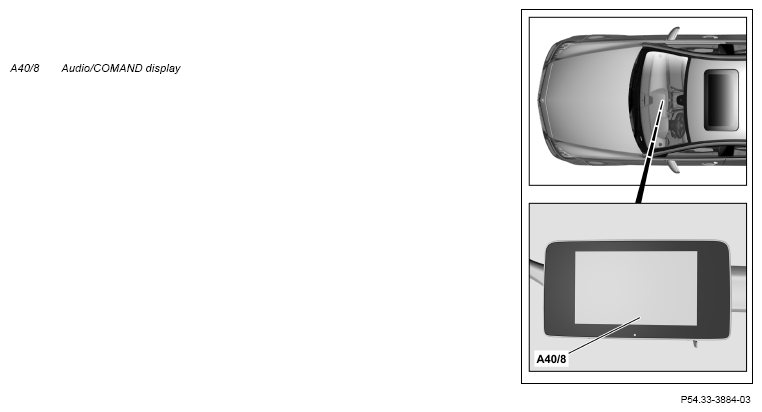

Fig 1: Audio/Command Display Components Location - Model 218 As Of 9/1/14 With Code 505, 522, 531

Courtesy of MERCEDES-BENZ USA

Illustrated on model 218.3

Location

The Audio/COMMAND display is fitted to the top center of the instrument panel.

Task

The Audio/COMMAND display serves the uniform presentation of user-relevant operating and information windows as well as the presentation of video picture information.

The Audio/COMMAND display receives the following signals:

Circuit 30g and circuit 31
Control signals (e.g. switch on) via telematics CAN (CAN A) from the head unit
Picture signals via the low voltage differential signal (LVDS) interface from the head unit

The Audio/COMMAND display evaluates the input factors in the integrated microprocessor and actuates the color screen.

Body

The Audio/COMMAND display is a 8" display (free standing) with the following characteristics:

3-D display
800 x 480 pixel resolution

Wiring diagram for Audio/COMMAND display

PE82.00-P-2080-97XAB
