Component Description For Audio/Command Control Panel - GF54.21-P-4501FQ
MODEL 218

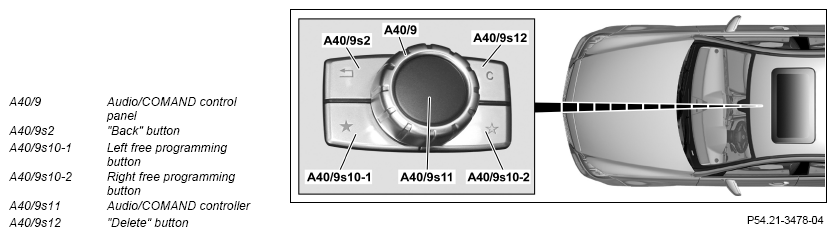

Shown on MODEL 218.3 except ENGINE 157.9 as of 1.9.14

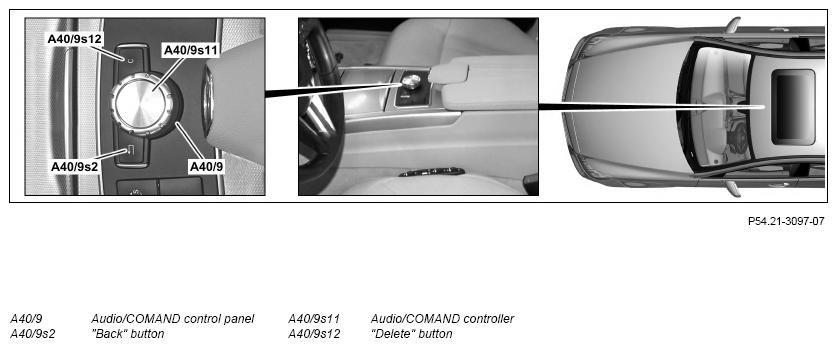

Shown on MODEL 218.3 except CODE 432 (Left and right dynamic multicontour seat) and except ENGINE 157.9, until 31.8.14
Shown on MODEL 218.3 with CODE 432 (Left and right dynamic multicontour seat) and except ENGINE 157.9, until 31.8.14

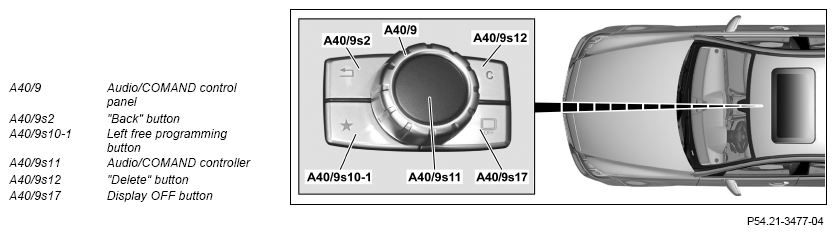

Shown on MODEL 218.3 with ENGINE 157.9, as of 1.9.14

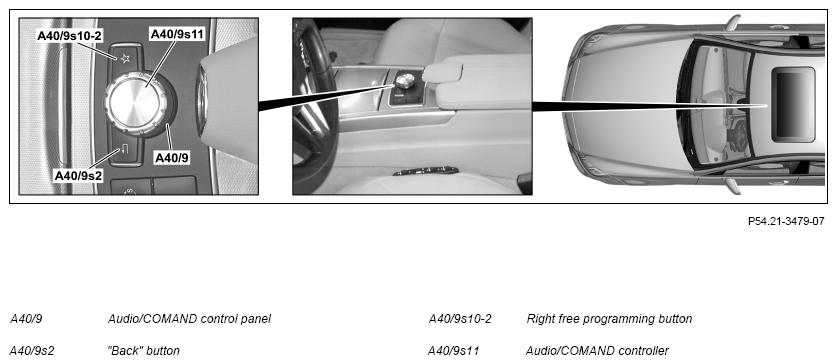

Shown on MODEL 218.3 with ENGINE 157.9, until 31.8.14
Task
The audio system can be operated with the Audio/COMMAND control panel. Operation is carried out with:
- Audio/COMMAND controller, to navigate within the menus, select menu items and confirm entries
- "Back" button e.g. to jump back a level within a menu
- "Delete" button, to delete individual characters or complete entries
The Audio/COMMAND control panel performs the following individual tasks:
- Operating unit for entertainment and communication systems integrated into vehicle
- Read in input signals
- Actuation of system components
Operating unit for entertainment and communication systems integrated into vehicle
The following audio system components can be operated:
- Radio (A2)
- CD (also MP3) and DVD audio
- Music Register (with CODE 512 (COMMAND APS incl. DVD changer) or CODE 527 (COMMAND APS with single DVD drive (with navigation)))
- Bluetooth® Audio (as of 1.6.10) and memory card (with CODE 512 (COMMAND APS incl. DVD changer, CODE (526) COMMAND with single DVD drive (without navigation), CODE (527) COMMAND APS with single DVD drive (with navigation) or CODE (528) COMMAND incl. DVD changer))
- AUX electrical connection (X39/45) (without CODE 518 (Media Interface), up to 28.2.13) or Media Interface electrical connection (X18/70) (with CODE 518 (Media Interface))
- USB electrical connection (X115) (as of 1.7.11 until 31.8.14 with CODE 512 (COMMAND APS incl. DVD changer, CODE (526) COMMAND with single DVD drive (without navigation), CODE (527) COMMAND APS with single DVD drive (with navigation)) or CODE 528 (COMMAND incl. DVD changer); as of 1.6.12 until 31.8.14 for all vehicles)
- Multimedia connection unit (A90/5) (input and output) (as of 1.9.14)
- Telephone
- Video (with CODE 512 (COMMAND APS incl. DVD changer), CODE 526 (COMMAND with single DVD drive (without navigation)), CODE 527 (COMMAND APS with single DVD drive (with navigation)), CODE 528 (COMMAND incl. DVD changer) or CODE 531 (COMMAND APS))
- TV (with CODE 863 (Digital/analog TV tuner) or with CODE 865 (TV tuner))
- Internet (as of 1.7.11 except CODE 494 (USA version), with CODE 512 (COMMAND APS incl. DVD changer) or CODE 527 (COMMAND APS with single DVD drive (with navigation)); with CODE 348 (Emergency call/Assist system) and CODE 512 (COMMAND APS incl. DVD changer); as of 1.9.14 for all vehicles)
- Navigation (with CODE 511 (Audio 50 APS incl. DVD changer), CODE 525 (Radio MB Audio 50 APS), CODE 512 (COMMAND APS incl. DVD changer), CODE 527 (COMMAND APS with single DVD drive (with navigation)), CODE 531 (COMMAND APS), CODE 509 (Navigation box) or CODE 357 (SD map navigation))
Read in input signals
The input factors are read in via the following connections:
- CAN
- Direct lines
CAN
The Audio/COMMAND control panel sends control data to the components of the telematics CAN (CAN A).
Direct lines
The Audio/COMMAND control panel contains the following direct connections:
- Terminal 30g
- Circuit 31
Actuation of system components
The Audio/COMMAND control panel can be used to select the audio equipment functions.
The buttons are designed as push/push buttons.
The following individual operations are possible with the Audio/COMMAND control panel:
- Press: Down vertically
- Turn: To left or right
- Tilt: To four quadrants as well as diagonally
Schematic view of operating functions
| Wiring diagram, front central operating unit | PE82.00-P-2060-97XAA |
