Remove/Install Housing Of High-Pressure Fuel Pump - AR07.02-P-1026MMV
Engine 276.8 in model 205
Engine 276.8 in model 253

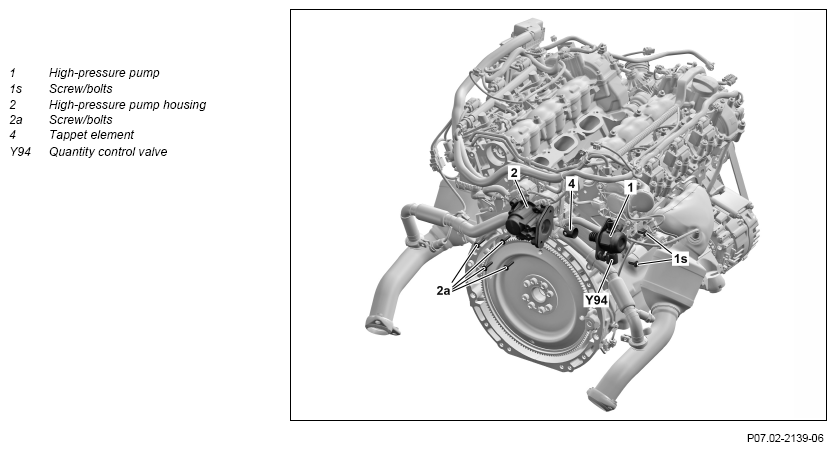

Shown on model 205.066
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| General information on work on gasoline direct injection system | AH07.00-P-2000-01A | ||
| Remove/install | |||
| 1 | Remove high-pressure pump (1) | AR07.02-P-1020MMV | |
| 2 | Detach engine wiring harness bracket at high pressure pump housing (2) | *BA07.03-P-1006-01D | |
| 3 | Remove screw/bolt (2a) | Tightening procedure for housing of fuel system high pressure pump | AR07.02-P-1020-02MM |
| *BA07.02-P-1002-01C | |||
| 4 | Take out high-pressure pump housing (2) upwards | ||
| 5 | Install in the reverse order |
HIGH PRESSURE PUMP
| Number | Designation | Engine 276 | ||
|---|---|---|---|---|
| BA07.02-P-1002-01C | Bolt, high-pressure pump drive housing to cylinder head/cylinder head cover | Stage 1 | Nm | 1 |
| Stage 2 | Nm | 9 | ||
INJECTION NOZZLES, INJECTION VALVES, LINES
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA07.03-P-1006-01D | Screw/bolt, additional bracket for high-pressure line to high pressure pump drive housing | Nm | 9 |
