Remove/Install Charge Air Distributor - AR09.41-P-8683MMV
Engine 276.8 in model 205
Engine 276.8 in model 253
| Remove | |||
| 1 | Remove upper engine cover | ||

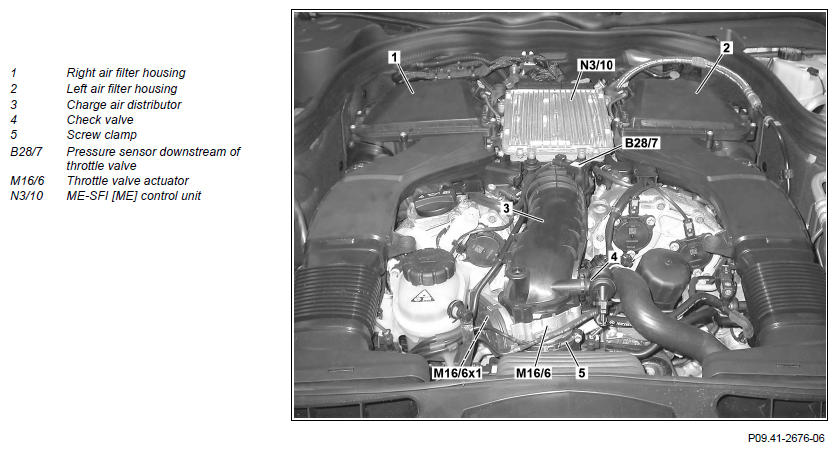

| 2 | Remove right air filter housing (1) | AR09.10-P-1150MMV | |
| 3 | Remove left air filter housing (2) | AR09.10-P-1150MMV | |
| 4 | Remove ME-SFI [ME] control unit (N3/10) | AR07.08-P-7008MMV | |
| 5 | Release and disconnect electrical connection at pressure sensor downstream of throttle valve (B28/7) | ||
| 6 | Detach check valve (4) at charge air distributor (3) | ||
| 7 | Detach engine wiring harness for removal of left and right cylinder head cover | AR01.00-P-2410-04MMV | |
| 8 | Unfasten screw clamp (5) on throttle valve actuator (M16/6) | ||
| 9 | Release and disconnect electrical connection from throttle valve actuator (M16/6) | ||

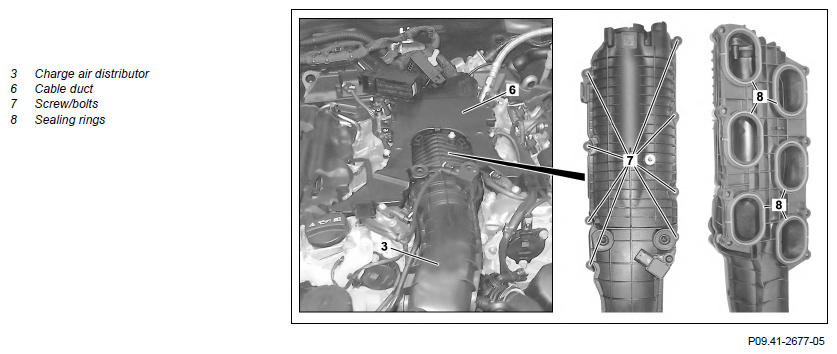

| 10 | Remove screw/bolts (7) crosswise from inside outwards and detach charge air distributor (3) with throttle valve actuator (M16/6) | ||
| 11 | Detach throttle valve actuator (M16/6) from charge air distributor (3) | When replacing the charge air distributor (3). | AR07.51-P-1401MMV |
| Clean | |||
| 12 | Remove sealing residue on charge air distributor (3) and on left connecting flange | Non-observance leads to leakage between the charge air distributor (3) and the left connecting flange. The sealing surfaces can get damaged otherwise. Loctite 7200 |
*BR00.45-Z-1038-04A |
| 13 | Remove sealing residue on charge air distributor (3) and on right connecting flange | Non-observance leads to leakage between the charge air distributor (3) and the right connecting flange. The sealing surfaces can get damaged otherwise. Loctite 7200 |
*BR00.45-Z-1038-04A |
| Install | |||
| 14 | Check seal between the throttle valve actuator (M16/6) and the charge air distributor (3) | When replacing the charge air distributor (3). | |
| 15 | Mount throttle valve actuator (M16/6) on charge air distributor (3) | When replacing the charge air distributor (3). | AR07.51-P-1401MMV |
| 16 | Replace seals (8) | ||
| 17 | Insert charge air distributor (3) | ||
| 18 | Screw in screw/bolts (7) cross-wise from inside to outside | *BA09.41-P-1001-01R | |
| 19 | Connect and lock electrical connection on throttle valve actuator (M16/6) | ||
| 20 | Tighten screw clamp (5) on throttle valve actuator (M16/6) | ||
| 21 | Attach engine wiring harness to the left and right cylinder head cover | AR01.00-P-2410-04MMV | |
| 22 | Mount check valve (4) on charge air distributor (3) | ||
| 23 | Connect and lock electrical connection on pressure sensor downstream of throttle valve (B28/7) | ||
| 24 | Install ME-SFI [ME] control unit (N3/10) | AR07.08-P-7008MMV | |
| 25 | Install left air filter housing (2) | AR09.10-P-1150MMV | |
| 26 | Install right air filter housing (1) | AR09.10-P-1150MMV | |
| 27 | Install upper engine cover | ||
| 28 | Mount ground line on battery | AR54.10-P-0003LW | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear buttoned-up and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 29 | Carry out an engine test run, checking the engine for proper operation and leaktightness |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 276.8 | |
|---|---|---|---|
| BA09.41-P-1001-01R | Screw/bolt, charge air distributor to intermediate flange | Nm | 9 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1038-04A | Loctite 7200 | Henkel AG & Co. KGaA |
