Retrofit rear-entertainment with two screens - AZ82.60-P-0015NKB

MODEL 242, 246

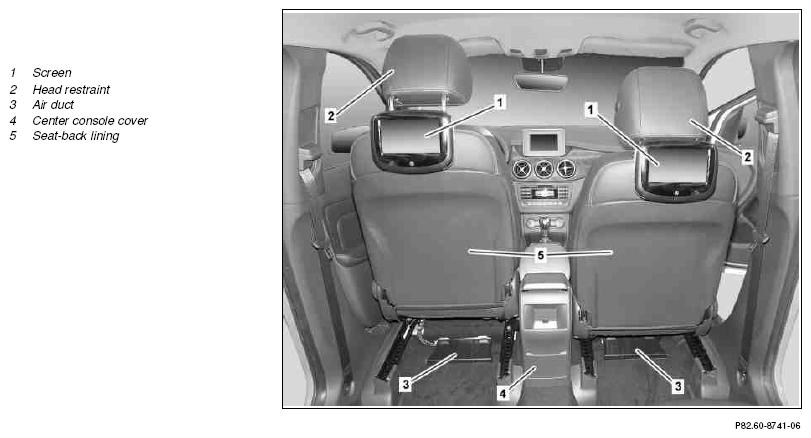

Fig 1: Identifying Retrofitted Rear-Entertainment With Screens

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove cover for center console (4) and detach center console in rear area
			AR68.20-P-2000NKB
2	Remove air duct (3) under left and right front seat
3	Remove seat-back lining (5) from left and right front seat backrest
			AR91.10-P-1910NKB
4.1	Loosen left and right head restraint motor
		With CODE 242 (Electrically adjustable front passenger seat with memory function) or with CODE 275 (Memory package (driver seat, mirrors)) Do not completely remove head restraint (2), simply loosen it.	AR91.29-P-1432NKB
4.2	Move left and right front seat head restraint (2) all the way to the top	Without CODE 242 (Electrically adjustable front passenger seat with memory) or without CODE 275 (Memory package (driver seat, mirrors))
	Install
5	Retrofit bracket for screen (1) to left and right front seat		AZ82.60-P-0015-04NKC
6	Retrofit rear entertainment wiring harness		AZ82.60-P-0015-02NKC
		Ensure that the wiring harnesses are not damaged by chafing or pinching. Otherwise the corresponding wiring harness must be replaced.
7	Attach screens (1) to bracket
8	Install remaining parts
9	Program rear entertainment infrared channel		AZ82.60-P-0015-05GZ
10	Program rear entertainment regional code		AZ82.60-P-0015-06GZ
11	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach "Rear Seat Entertainment system with two screens retrofitted as per AZ82.60-P-0015NKB " note under field organization text to design group 82 and design group 91.
12	Perform function test	See rear entertainment operating instructions.

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98	Parts kit for rear entertainment with two screens	1
