Remove/install front seat heat restraint motor - AR91.29-P-1432NKB
MODEL 117, 156, 176, 242, 246 with CODE 275 (Memory package (driver seat, mirrors))
MODEL 117, 176, 242, 246 with CODE 242 (Front passenger seat, electrically adjustable with memory function)
MODEL 156 with CODE 242 (Electrically adjustable front passenger seat with memory)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove front seat head restraint | AR91.16-P-0040NKB | |

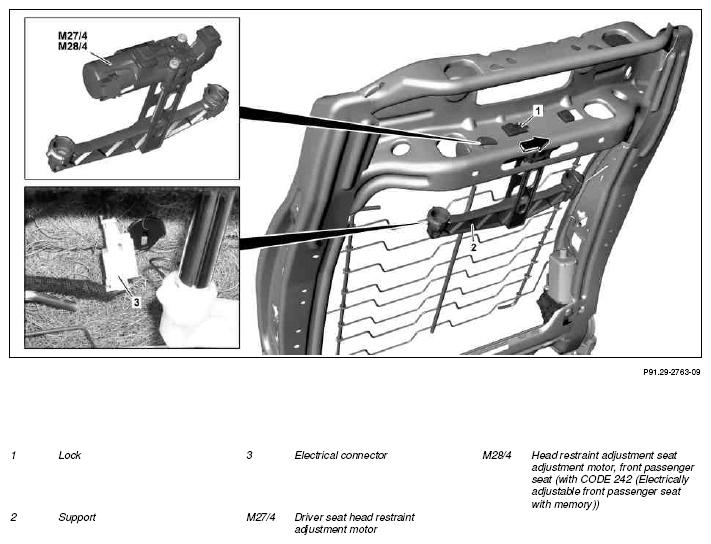

| 2 | Disconnect electrical connector (3) | ||
| 3 | Release lock (1) | ||
| 4 | Slide mount (2) with head restraint adjustment seat adjustment motor, driver seat (M27/4) or head restraint adjustment seat adjustment motor, front passenger seat (M28/4) to right (arrow) and remove downwards | ||
| 5 | Install in the reverse order |
