Remove/install side paneling in trunk - AR68.30-P-4800NKB

MODEL 242, 246

Shown with CODE 942 (EASY-PACK-Fixkit)

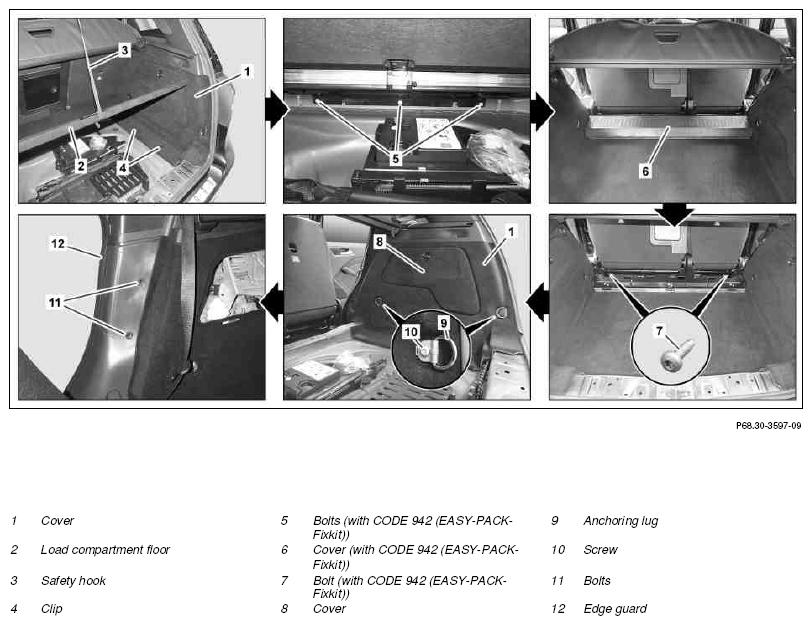

Fig 1: Identifying Trunk Side Paneling Remove/Install Components - Shown With Code 942 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

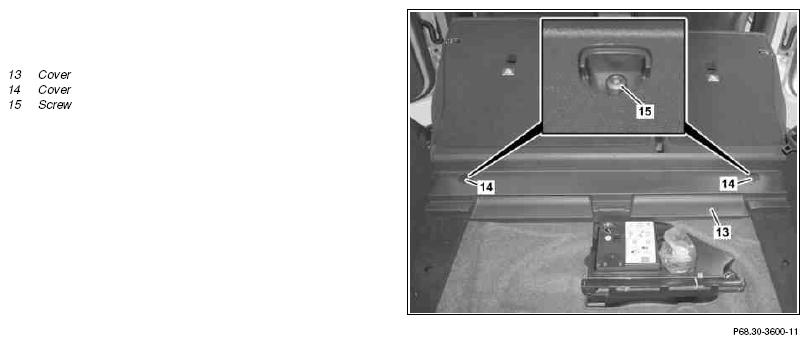

Fig 2: Identifying Trunk Side Paneling Remove/Install Components - Shown With Code 942 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove trim from C-pillar		AR68.30-P-4490NKB
2	Open cargo area floor (2) and secure with safety hook (3)
3	Remove bolts (5)	MODEL 242, 246 with CODE 942 (EASY-PACK-load securing kit)
4	Move left or right front seat forwards	MODEL 246 with CODE U57 (EASY-VARIO-PLUS-system)
5	Move left or right rear seat toward front and fold back rear seat backrest	MODEL 246 with CODE U57 (EASY-VARIO-PLUS-system)
6	Remove rear seat cushion	MODEL 246 with CODE 248 (Rear seat with integrated child seat) without CODE U57 (EASY-VARIO-PLUS-system)	AR91.12-P-1020NKD
		MODEL 242 MODEL 246 without CODE 248 (Rear seat with integrated child seat) without CODE U57 (EASY-VARIO-PLUS-system)	AR91.12-P-1020NKC
7	Remove left or right rear seat backrest	MODEL 246 without CODE U57 (EASY-VARIO-PLUS-system)	AR91.12-P-1720NKB
8	Remove covers (14) and unscrew bolts (15)	MODEL 242, 246 without CODE 942 (Load compartment package)
9	Remove cover (13)	MODEL 242, 246 without CODE 942 (EASY-PACK-load securing kit)
10	Unclip and remove cover (6)	MODEL 242, 246 with CODE 942 (EASY-PACK-load securing kit)
		Clip remover	Figure
11	Raise load compartment floor (2)	MODEL 242, 246 with CODE 942 (EASY-PACK-load securing kit)
12	Remove bolts (5)	MODEL 242, 246 with CODE 942 (EASY-PACK-load securing kit)
13	Lower load compartment floor (2)	MODEL 242, 246 with CODE 942 (EASY-PACK-load securing kit)
14	Remove screw/bolts (7)	MODEL 242, 246 with CODE 942 (EASY-PACK-load securing kit)
15	Remove cargo area floor (2) from vehicle
16	Remove clips (4)	Clip remover	Figure
17	Remove cover (8)
18	Unhook retaining tabs from fixing bolt	Retaining tab is located below cover (8).
19	Remove covers on anchoring lug (9) and unscrew bolts (10)
20	Remove rear door sill molding		AR68.30-P-4100NKB
21	Remove bolts (11)	MODEL 242, 246 with CODE 293 (Sidebag in rear left and right)
22	Detach edge guard (12) in area of paneling (1)	Ensure that edge guard is seated correctly on liftgate opening.
23	Unclip paneling (1)
24	Lift paneling (1) and disconnect electrical connector in trunk socket	When removing left paneling (1).
25	Remove cover (1)
26	Install in the reverse order

Fig 3: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
