Remove/install rear seat cushion - AR91.12-P-1020NKD

MODEL 246 with CODE 248 (Rear seat with integrated child seat) without CODE U57 (EASY-VARIO-PLUS-system)

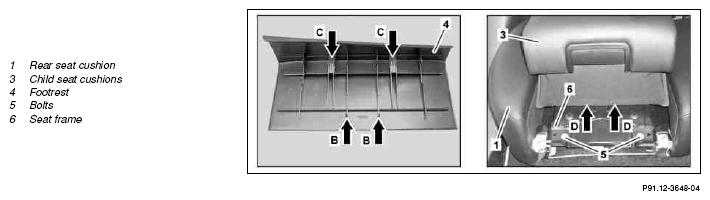

Fig 1: Identifying Rear Seat Cushion Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

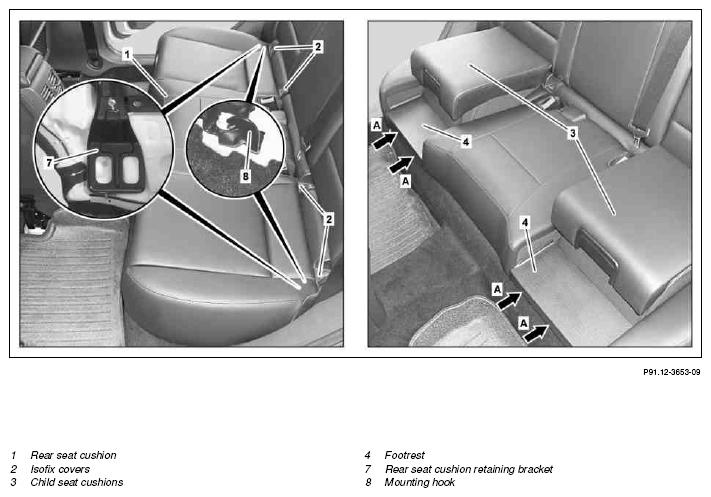

Fig 2: Identifying Rear Seat Cushion Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Extend child seat cushions (3)
2	Remove left and right footrest (4)	Insert a suitable screwdriver at the marks (arrows A) on the footrest (4), alternately push back the catch hooks (arrows C) and then remove footrest (4) horizontally from the seat frame (6). Insert guides (arrows B) of footrest (4) in cutouts (arrows D) of seat frame (6).
3	Remove screws/bolts (5) on left and right seat frame (6) of rear seat cushion (1)	Readjust rear seat cushion (1) after successful installation.
		Bolt, seat cushion with integrated child seat to mounting console	*BA91.12-P-1003-03K
4	At the same time, press rear seat cushion (1) toward rear against rear seat backrest and unhook rear seat cushion retaining brackets (7) upwards from mounting brackets (8)	Ensure that rear seat cushion retaining brackets (7) are seated correctly in mounting brackets (8).
5	Pull rear seat cushion (1) forward and remove	Route the seat belt buckles through the rear seat cushion (1). Smooth folds in seat cover in area of Isofix covers (2).
6	Install in the reverse order
