Remove/install Vario roof - AR77.50-P-3000W
MODEL 172.4
| Removing | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| Risk of injury caused by body parts being trapped or crushed when working on a partially open Vario roof (in stop mode) or in its closing area as a result of the Vario roof suddenly collapsing | Secure Vario roof with a suitable special tool. | AS77.50-Z-0001-01A | |
| Risk of death caused by touching parts conducting high voltages | Do not come into contact with parts that are under high voltage. Persons who are carriers of electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. | AS77.00-Z-0001-01A | |
| Notes on MAGIC SKY CONTROL | With code (412) Vario roof glass version | AH77.00-P-0001-01A | |
| Notes on Vario roof assembly work | AH77.30-P-0002-01R | ||
| 1 | Switch on ignition and actuate Vario roof control switch until the trunk lid is located at the limit stop. Then switch off ignition | ||
| 2 | Remove tank cover above | AR64.20-P-1080W | |
| 3 | Disconnect ground line of battery | AR54.10-P-0003W | |

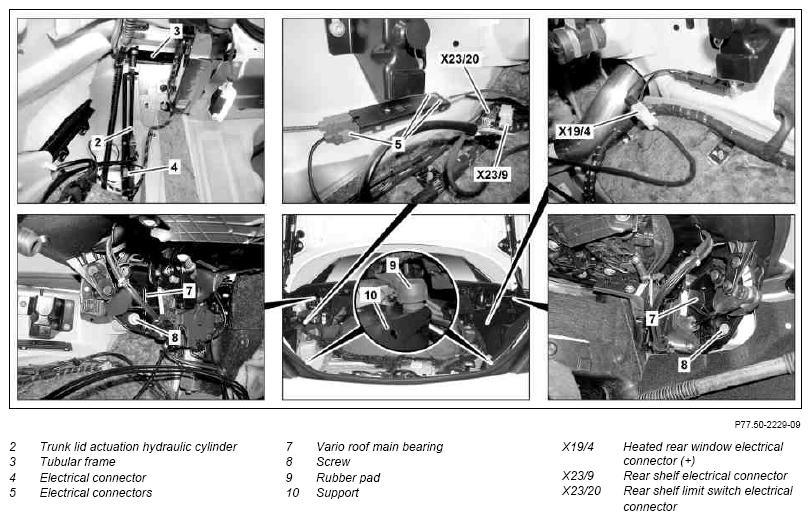

| 4 | Disconnect electrical connector (4) | ||
| 5 | Remove left and right trunk lid actuation hydraulic cylinder (2) from body and tubular frame (3) and lay down to side with hydraulic lines connected. | AR77.37-P-3550W | |
| 6 | Disconnect electrical connectors (5) and expose associated lines up to Vario roof left main bearing (7) | ||
| 7 | Disconnect rear shelf electrical connector (X23/9) and rear shelf limit electrical connector (X23/20) and expose associated lines up to Vario roof left main bearing (7) | ||
| 8 | Disconnect heated rear window electrical connector (+) (X19/4) and expose associated line up to right Vario roof main bearing (7) | ||
| 9 | Expose hydraulic lines of left and right trunk lid actuation hydraulic cylinder (2) up to left and right Vario roof main bearing (7) | ||
| 10 | Unscrew bolts (8) on left and right Vario roof main bearing (7) | ||
| 11 | Install rubber bumper (9) in left and right mount (10) | ||

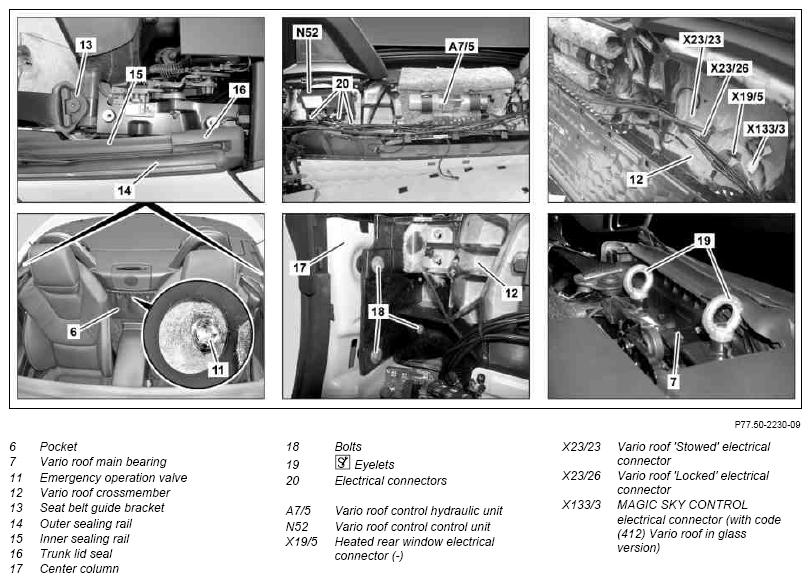

| 12 | Open emergency operation valve (11) | ||

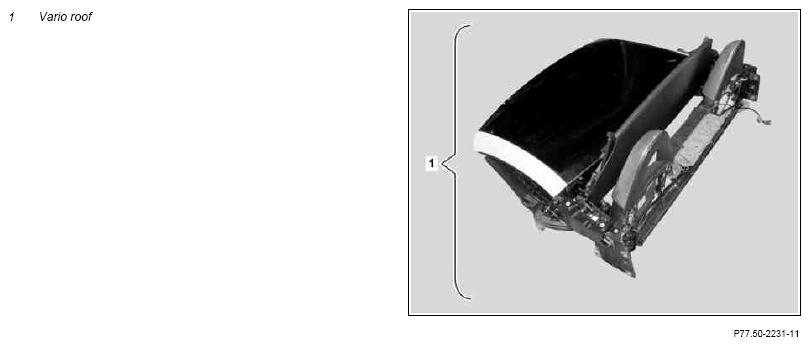

| 13 | Lay Vario roof (1) down into trunk by hand with aid of helper. | ||
| 14 | Expose Vario roof control hydraulic unit (A7/5) in vehicle interior | AR77.37-P-3500W | |
| 15 | Disconnect MAGIC SKY CONTROL electrical connector (X133/3) | With code (412) Vario roof glass version | |
| 16 | Disconnect electrical connectors (20) from Vario roof control unit (N52) | ||
| 17 | Disconnect heated rear window electrical connector (-) (X19/5), Vario roof stowed electrical connector (X23/23) and Vario roof locked electrical connector (X23/26) and remove associated electrical wiring harness from Vario roof cross member (12) | ||
| 18 | Remove both belt guide brackets (13) from Vario roof crossmember (12) | ||
| 19 | Remove left and right outer sealing rail (14) | Figure | |
| 20 | Remove left and right inner sealing rail (15) | Figure | |
| 21 | Loosen both ends on trunk lid seal (16) in area of left and right center pillar (17) | AR88.50-P-5010W | |
| 22 | Install eyelets (19) on both Vario roof main bearing (7) | Fig 7 | |
| 23 | Unscrew bolts (18) on left and right center pillar (17) | ||
| 24 | Fasten left and right trunk lid actuation hydraulic cylinder (2) to Vario roof crossmember (12) | ||
| 25 | Lift Vario roof (1) out of vehicle with engine hoist and aid of helper | Motor-Dirigent engine hoist |
|
| 26 | Remove compensating elements (21) | ||
| Installation | |||
| 27 | Detach overhead control panel control unit and let hang with connected electrical lines | AR82.20-P-1000W | |
| 28 | Remove seal from crossmember above windshield | AR77.50-P-4050W | |

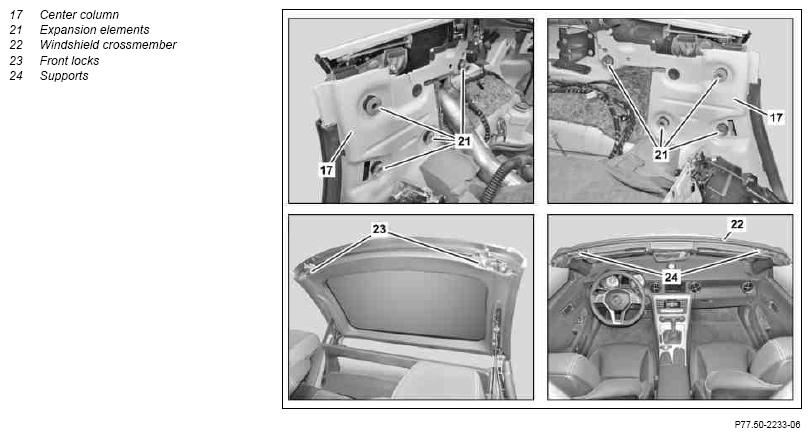

| 29 | Install new expansion elements (21) | ||
| 30 | Fasten suitable hoisting element to eyelets (19) and position Vario roof (1) with engine hoist and aid of helper between both Vario roof main bearings (7) | Motor-Dirigent engine hoist |
|
| 31 | Remove eyelets (19) | ||
| 32 | Align Vario roof (1) | AR77.50-P-3000-04W | |
| *BA77.33-P-1007-01A | |||
| Fig 6 | |||
| 33 | Install seal on crossmember above windshield | AR77.50-P-4050W | |
| 34 | Install overhead control panel control unit. | AR82.20-P-1000W | |
| 35 | Fasten both ends on trunk lid seal (16) in area of left and right center pillar (17) | AR88.50-P-5010W | |
| 36 | Install left and right inner sealing rail (15) | ||
| 37 | Install left and right outer sealing rail (14) | ||
| 38 | Install left and right belt guide bracket (13) on Vario roof crossmember (12) | *BA91.40-P-1002-01A | |
| 39 | Connect heated rear window electrical connector (-) (X19/5), Vario roof stowed electrical connector (X23/23) and Vario roof locked electrical connector (X23/26) and install associated electrical wiring harness on Vario roof cross member (12) | ||
| 40 | Connect electrical connectors (20) to Vario roof control unit (N52) | ||
| 41 | Connect MAGIC SKY CONTROL electrical connector (X133/3) | On vehicles with code (412) Vario roof in glass version | |
| 42 | Reinstall all components removed to expose the Vario roof control hydraulic unit (A7/5). | AR77.37-P-3500W | |
| 43 | Manually set up Vario roof (1) stowed in the trunk with the aid of a helper and lay down toward front on windshield crossmember (22). Insert front locks (23) into mounts (24) | ||
| 44 | Close emergency operation valve (11). | *BA77.37-P-1001-01A | |
| 45 | Tighten bolts (8) on left and right Vario roof main bearing (7) | ||
| *BA77.33-P-1007-01A | |||
| 46 | Fasten line of heated rear window electrical connector (+) (X19/4) in trunk and connect heated rear window electrical connector (+) (X19/4) | ||
| 47 | Fasten line of rear shelf electrical connector (X23/9) and rear shelf limit switch electrical connector (X23/20) in trunk and connect rear shelf electrical connector (X23/9) and rear shelf limit switch electrical connector (X23/20) | ||
| 48 | Fasten lines of electrical connectors (5) in trunk and connect electrical connectors (5) | ||
| 49 | Connect electrical connector (4) | ||
| 50 | Install left and right trunk lid actuation hydraulic cylinder (2) to body and tubular frame (3) | AR77.37-P-3550W | |
| 51 | Fasten hydraulic lines of left and right trunk lid actuation hydraulic cylinder (2) in trunk | ||
| 52 | Install upper tank cover | AR64.20-P-1080W | |
| 53 | Install rubber bumper (9) in left and right mount (10) | ||
| 54 | Connect ground line to on-board electrical system battery | AR54.10-P-0003W |
SOFT TOP MECHANICAL COMPONENTS
| Number | Designation | Model 172 | |
|---|---|---|---|
| BA77.33-P-1007-01A | Bolts, main bearing to B-pillar | Nm | 21 |
SOFT TOP HYDRAULIC COMPONENTS
| Number | Designation | Model 172 | ||
|---|---|---|---|---|
| BA77.37-P-1001-01A | Emergency operation valve at hydraulic unit | Nm | 2.5 | |
| - | - | |||
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 172 | |
|---|---|---|---|
| BA91.40-P-1002-01A | Bolt/nut on front seat belt guide bracket | Nm | 35 |
