Remove/install hydraulic cylinder for trunk lid actuation - AR77.37-P-3550W
MODEL 172.4
| Removing | |||
| Risk of injury caused by moving parts that can pinch, crush or, in extreme cases, even sever extremities | No parts of the body or limbs should be within the operating range of the mechanism when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury to skin or eyes caused by hydraulic fluid spraying out under high pressure. Risk of poisoning caused by swallowing hydraulic fluid | Depressurize hydraulic system completely before starting any work on system. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| 1 | Remove left or right side paneling in trunk | AR68.30-P-4600W | |

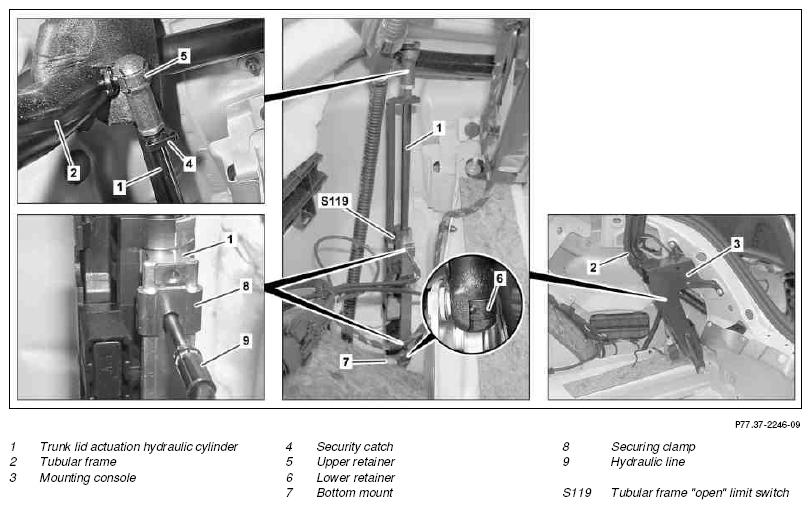

| 2 | Connect tubular frame (2) with cable tie at suitable point. e.g. to left or right console (3) | ||
| 3 | Open lock tab (4) and unclip tubular frame open limit switch (S119) from right trunk lid actuation hydraulic cylinder (1) | When removing right trunk lid actuation hydraulic cylinder (1). | |
| 4 | Lift upper retainer (5) and unclip left or right trunk lid actuation hydraulic cylinder (1) from tubular frame (2) | ||
| 5 | Lift lower retainer (6) on trunk lid actuation hydraulic cylinder (1) and unclip trunk lid actuation hydraulic cylinder (1) from lower mount (7) | ||
| 6 | Move retaining clips (8) on trunk lid actuation hydraulic cylinder (1) with suitable pliers and pull hydraulic lines (9) out of trunk lid actuation hydraulic cylinder (1). | ||
| 7 | Remove trunk lid actuation hydraulic cylinder (1) from trunk | ||
| Install | |||
| 8 | Fasten hydraulic lines (9) on trunk lid actuation hydraulic cylinder (1) and secure with retaining clips (8) | Connect line no. 40 at piston side and line no. 42 at rod side of right trunk lid actuation hydraulic cylinder (1). |
|
| 9 | Clip trunk lid actuation hydraulic cylinder (1) onto bottom mount (7) | ||
| 10 | Remove support to fasten trunk lid assembly position | Fig 2 | |
| 11 | Cable ties at the tubular frame (2), for securing against folding down the tank cap degrade, and lock the boot lid in the rear lid lock | ||
| 12 | Close tubular frame (2) by hand together with trunk lid and lock | ||
| General notes on repairing tubular frame | AH88.50-P-0002-01V | ||
| 13 | Adjust trunk lid actuation hydraulic cylinder (1) | AR88.50-P-5100-02V | |
| 14 | Install tubular frame open limit switch (S119) on right trunk lid actuation hydraulic cylinder (1) and close lock tap (4) | When installing right trunk lid actuation hydraulic cylinder (1). | |
| 15 | Install left and right side paneling in trunk | AR68.30-P-4600W | |
| 16 | Check/correct oil level of hydraulic unit | AR77.37-P-3501W |
