Remove/install front floor covering (left) - AR68.20-P-2050RK
MODEL 231
Separating point shown on removed new part

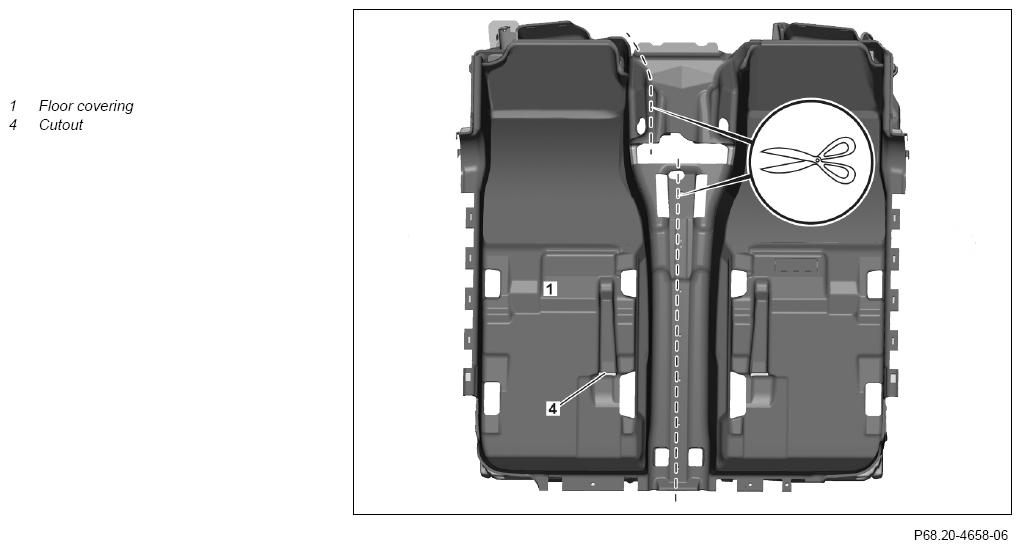

Fig 2: Front Floor Covering (Left) Remove/Install Components - Separating Point Shown On Removed New Part (1 Of 2)

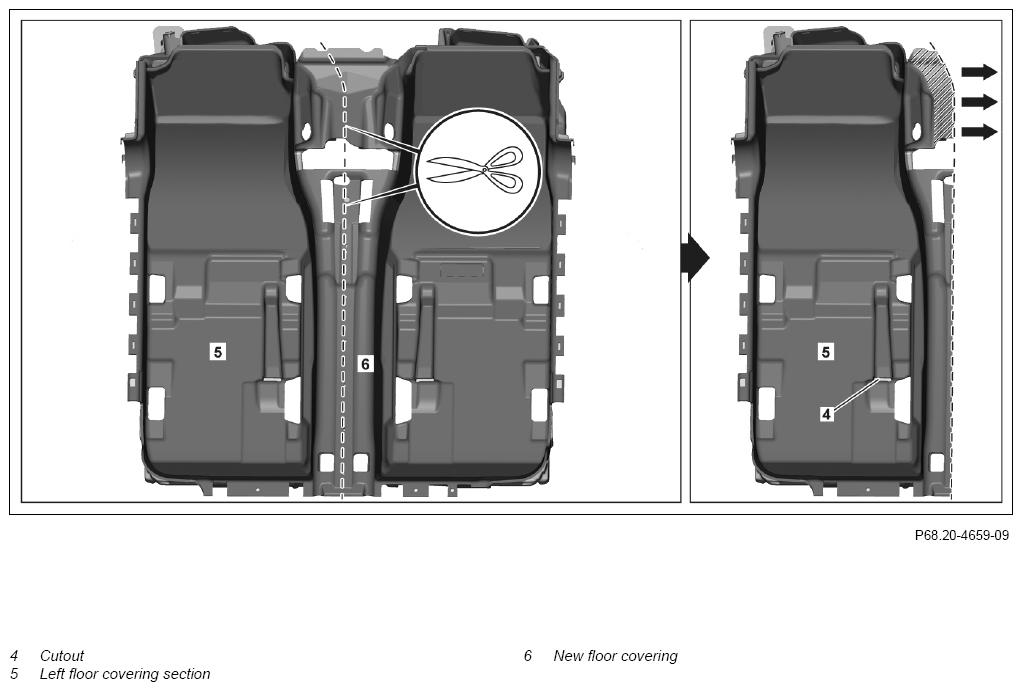

Fig 3: Front Floor Covering (Left) Remove/Install Components - Separating Point Shown On Removed New Part (2 Of 2)
| Remove | |||
| 1 | Remove left front seat | AR91.10-P-1000RK | |
| 2 | Remove left side trim in rear passenger compartment | AR68.30-P-4780RK | |
| 3 | Remove center console | AR68.20-P-2000RK | |
| 4 | Remove accelerator pedal | AR30.12-P-1321RK | |
| 5 | Remove bottom section of dashboard on driver's side | AR68.10-P-1505RK | |
| 6 | Remove left floor mat | ||

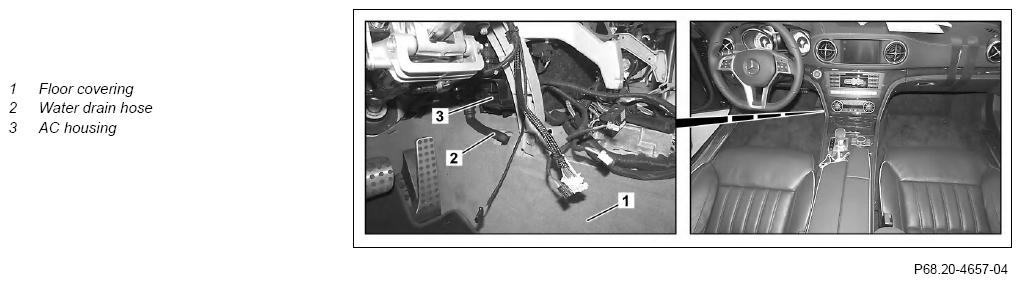

| 7 | Remove water drain hose (2) from vehicle floor | ||
| 8 | Cut floor covering (1) along separating lines | Carefully cut floor covering (1). Otherwise the electrical and pneumatic lines below the floor covering (1) can be damaged. |
|
| 9 | Lift old left floor coveirng (1) at rear and remove from vehicle | Guide supply lines on front seats along cutout (4). |
|
| Install | |||
| 10 | Cut new floor covering (6) along separating lines | ||
| 11 | Push new left floor covering section (5) below instrument panel and position on vehicle floor | ||
| 12 | Push crosshatched area on new left floor covering section (5) in direction of arrow | ||
| 13 | Install water drain hose (2) | ||
| 14 | Install left floor mat | ||
| 15 | Install dashboard bottom section on driver side | AR68.10-P-1505RK | |
| 16 | Install accelerator pedal | AR30.12-P-1321RK | |
| 17 | Install center console | AR68.20-P-2000RK | |
| 18 | Install left side trim panel in rear | AR68.30-P-4780RK | |
| 19 | Install left front seat | AR91.10-P-1000RK |
