Remove/install front seat - AR91.10-P-1000RK

MODEL 231

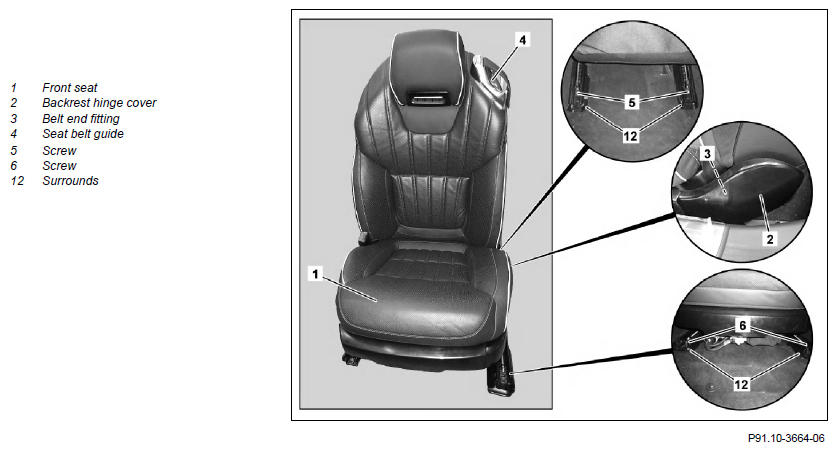

Fig 1: Front Seat Remove/Install Components

Courtesy of MERCEDES-BENZ USA

Shown on left front seat with code 432 (Active multicontour seat)

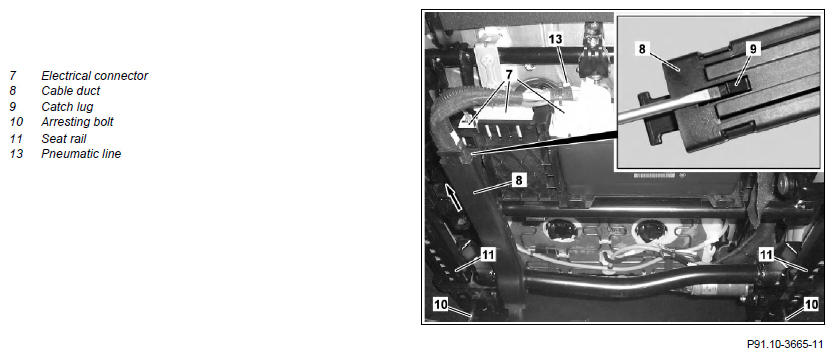

Fig 2: Front Seat Remove/Install Components - Shown On Code 432

Courtesy of MERCEDES-BENZ USA

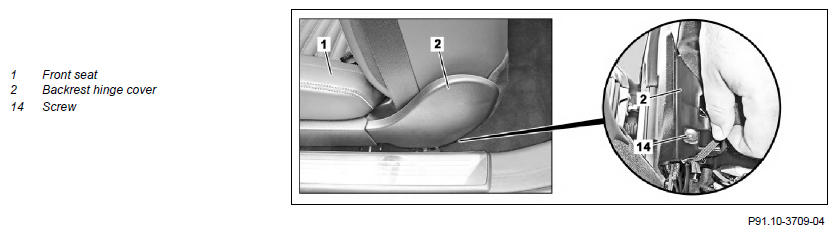

Fig 3: Front Seat Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  caused by backrest suddenly folding forward if release lever is accidentally operated during inspection and repair work	When working on the seat, be careful not to accidentally release the backrest mechanism, allowing the seat to fold forward. Keep body parts clear of the backrest travel area.	AS91.00-Z-0005-01V
	Risk of injury  caused by performing testing or repair work on airbag or emergency tensioning retractor units.	Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply.	AS91.00-Z-0001-01A
	Notes on performing repair, body work and welding on vehicles with airbags and RTE units		AH91.00-P-0002-01M
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Assessment of airbag and belt tensioner units in accident vehicles		AH91.00-P-0006-01B
	Legal requirements on handling and storing airbags and emergency tensioning retractor units		AH91.00-P-0004-01A
1	Open Vario roof fully
2	Move front seat (1) upwards and forward
3	Move backrest to front
4	Remove screw (14)
5	Unclip backrest hinge cover (2) and remove
6	Remove belt end fitting (3) at front seat (1)	Detach/attach belt end fitting	AR91.40-P-1030-02A
7	Remove seat belt from belt guide (4)
8	Remove screws (5) at the back of the seat rails	Screw/bolt, seat to vehicle floor	*BA91.10-P-1002-01Q
9	Position front seat (1) to rear
10	Move backrest into upright position
11	Remove screws/bolts (6) at the front of the seat rails	Screw/bolt, seat to vehicle floor	*BA91.10-P-1002-01Q
12	Disconnect battery ground line		AR54.10-P-0003RK
13	Expose electrical wiring harness.
14	Disconnect connector of pneumatic line (13) and seal	With code 409 (Left/right front multicontour seats) or code 432 (Active multicontour seat).
		Pliers	Fig 4
15	Disconnect electrical connectors (7)	The number of electrical connectors (7) can vary depending on the equipment.
16	Remove cable duct (8).	To do so, release catch tab (9) using suitable tool and remove cable duct (8) in direction of arrow.
17	Remove front seat (1) from vehicle	Carefully lift front seat (1) out of vehicle. Otherwise components in the interior will be damaged. Helper required. Ensure that locking bolts (10) of seat rails (11) are seated correctly in vehicle floor.
18	Unclip covers (12) at seat rails (11) and remove
19	Put down front seat (1) and secure it against tipping over
20	Install in the reverse order

Fig 4: Identifying Pliers (000 589 04 37 00)

Courtesy of MERCEDES-BENZ USA
