Remove/install dashboard lower section on driver side - AR68.10-P-1505RK
MODEL 231
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Notes on performing repair, body work and welding on vehicles with airbags and RTE units | AH91.00-P-0002-01M | ||
| Legal requirements on handling and storing airbags and emergency tensioning retractor units | AH91.00-P-0004-01A | ||
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| Remove/install | |||
| 1 | Disconnect battery ground line | MODEL 231 with CODE 294 (Kneebag driver's side) |
AR54.10-P-0003RK |
| 2 | Remove electric parking brake switch | AR42.20-P-0505RK | |
| 3 | Remove light switch module | AR54.25-P-3270RK | |
| 4 | Remove side cover on center console | AR68.20-P-2355RK | |

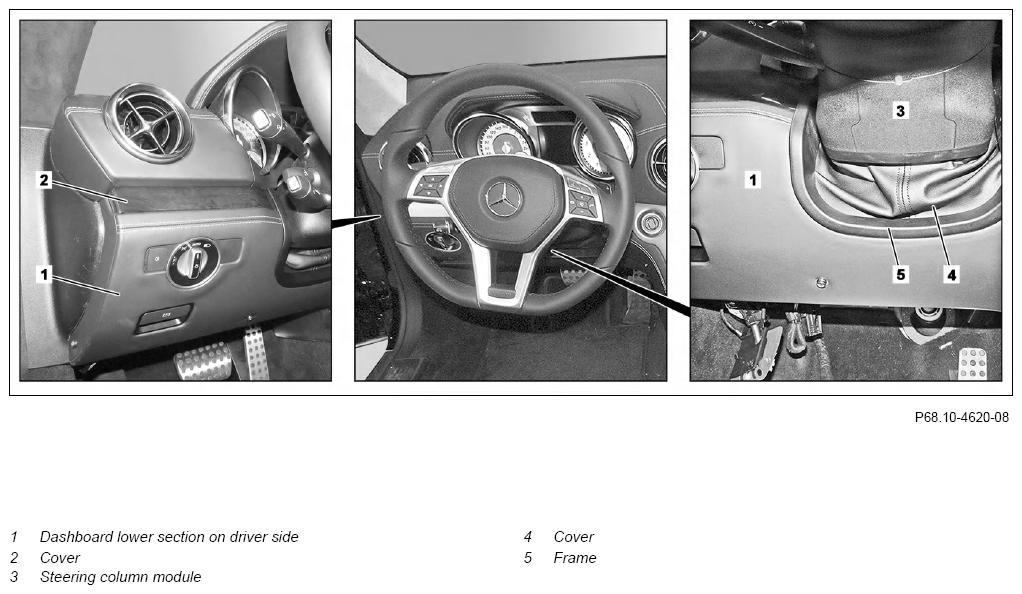

| 5 | Release cover (4) from steering column tube module (3) | Figure | |
| 6 | Unclip cover (2) | Figure | |

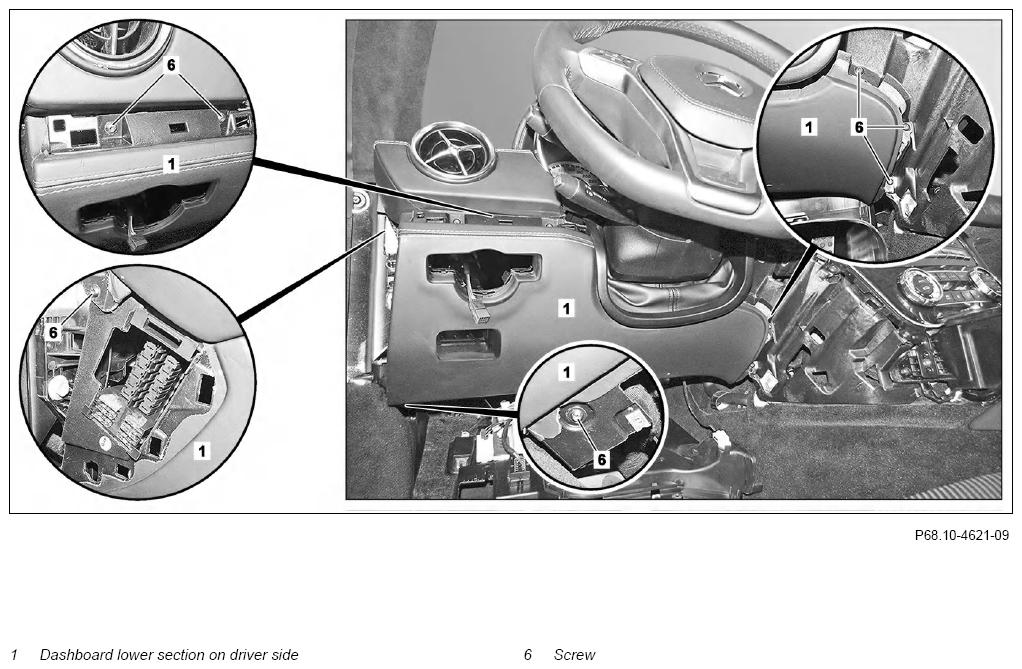

| 7 | Remove screw/bolts (6) | ||
| 8 | Lower driver side instrument panel bottom section (1) | ||

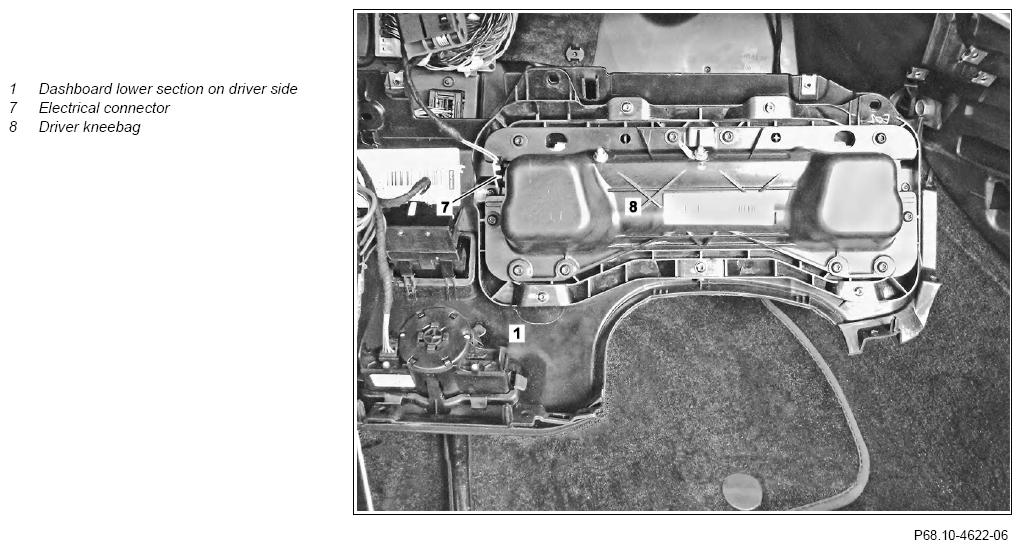

| 9 | Disconnect electrical connector (7) from driver kneebag (8) | MODEL 231 with CODE 294 (Kneebag driver's side) |
|
| 10 | Remove dashboard bottom section on driver's side (1) | ||
| 11 | Install in the reverse order |
