Attach Vehicle Identification Number - Ar60.00-S-0800E

Model 447, 448

MODIFICATION NOTES

11.10.2016	Method supplemented, special tools updated	Operation step 2
11.10.2016	Five-pointed star stamp (character height 6 mm)	Operation step 2
11.10.2016	Method supplemented, special tools updated	Operation steps 1 to 3	AR60.00-S-0800-02E

Courtesy of MERCEDES-BENZ USA

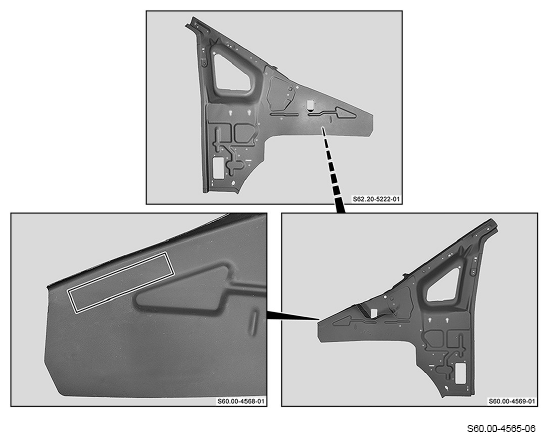

	Vehicle identification number		AH60.00-S-0800-02KOV
	Product liability, trademark and traffic laws		AH60.00-P-0800-01Z
	Attachment
1	Mount stamping guide	Punch vehicle identification number (VIN) into new part before installing.	AR60.00-S-0800-01E
		Number punch guide	Fig 2
2	Punch in VIN	Model 448 Commercially available devices/tools  Five-pointed star stamp (character height 6 mm)	AR60.00-S-0800-02E
		Model 447 Star marking punch	Fig 1
		Die stamp numbers	Fig 3
		Letter marking punch	Fig 4
3	Remove stamping guide	Number punch guide	Fig 2

Fig 1: Identifying Star Marking Punch (000 589 02 39 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Number Punch Guide (168 589 01 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Die Stamp Numbers (000 589 01 39 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Letter Marking Punch (000 589 00 39 00)

Courtesy of MERCEDES-BENZ USA
