Mount Stamping Guide - Ar60.00-S-0800-01E

Model 447, 448

Fig 1: Identifying Number Punch Guide (168 589 01 63 00)
G16483076Courtesy of MERCEDES-BENZ USA

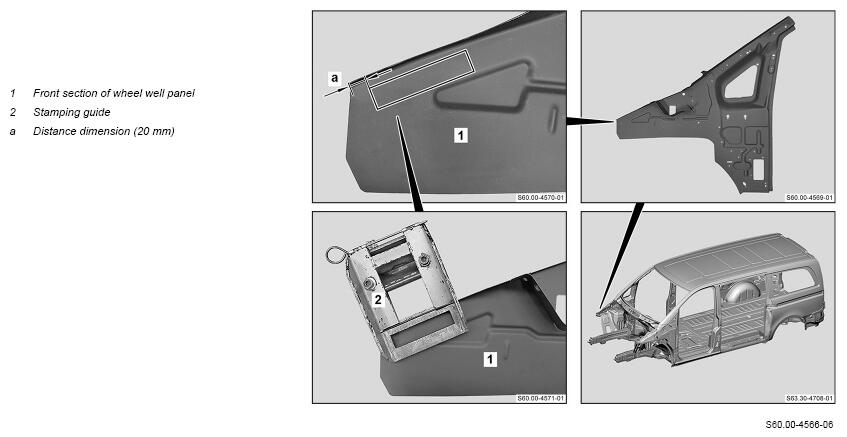

  1. SPECIAL TOOL Install stamping guide (2) o wheel well paneling front section (1), align and fasten.
    G16483077Courtesy of MERCEDES-BENZ USA
