Lower Engine Compartment Lining Removal And Installation - Ar61.20-S-1105E
Model 447, 448

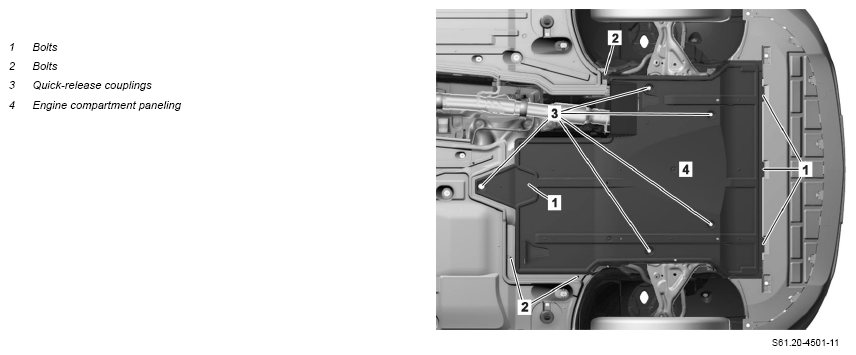

Shown on model 447 with engine 651 with code MX0 (BlueEFFICIENCY package)

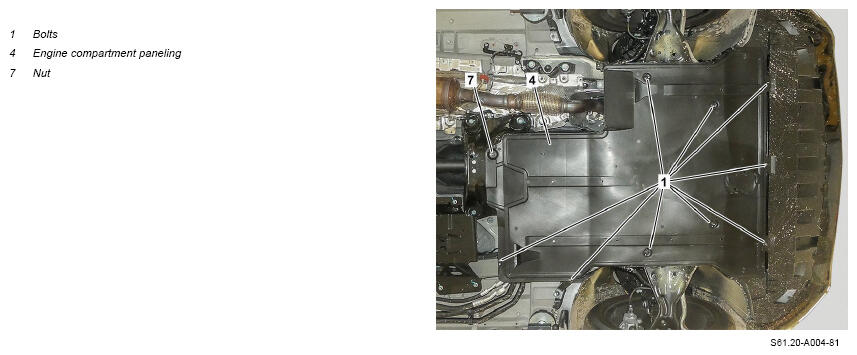

Shown on model 447 with engine 780.702

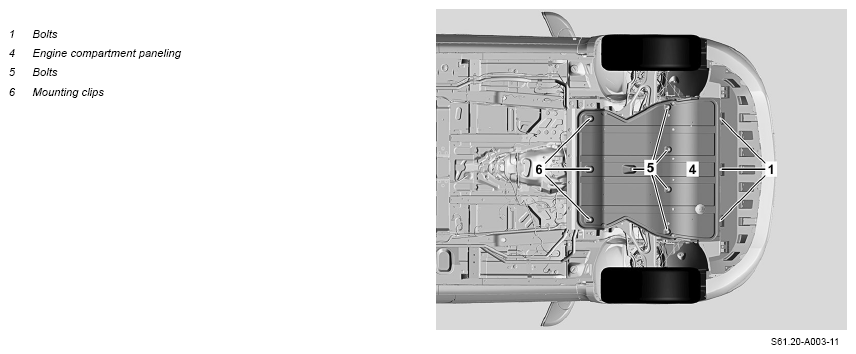

Shown on model 448 with engine 274
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. Model 447 with engine 780 |
AS00.00-Z-0035-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 447 with engine 780 | AH00.00-Z-0300-01A |
| Notice | Notes on battery | Model 447 with engine 780 | AH54.10-P-0001-01A |
| Remove/install | |||
| 1 | Raise vehicle. | AR00.60-S-1000E | |
| 2 | Remove retaining clips (6). | Model 447 with engine 780.702/705 If necessary, ↓ Replace damaged retaining clips (6). |
|
| 3 | Remove screws (1). | ||
| 4 | Remove screws (2). | Model 447 with engine 651 with code MX0 (BlueEFFICIENCY package) Model 447 with engine 654 |
|
| 5.1 | Open quick-release fasteners (3). | Model 447 with engine 274, 651, 654 Model 448 with engine 274 |
|
| 5.2 | Remove screws (5). | Model 447 with engine 780.702/705 | |
| 6 | Remove nut (7). | Model 447, 448 with engine 274 with transmission 725.0 | |
| 7 | Remove engine compartment lining (4). | ||
| 8 | Install in the reverse order. |
