Remove/Install Rear-End Door Hinge - AR72.20-S-2650E
Model 447.6/7
With Code W50 (Rear-end door, double-wing, 180 degrees without window)
Model 447.6/7
With Code W54 (Hinged rear doors, opening to side wall)

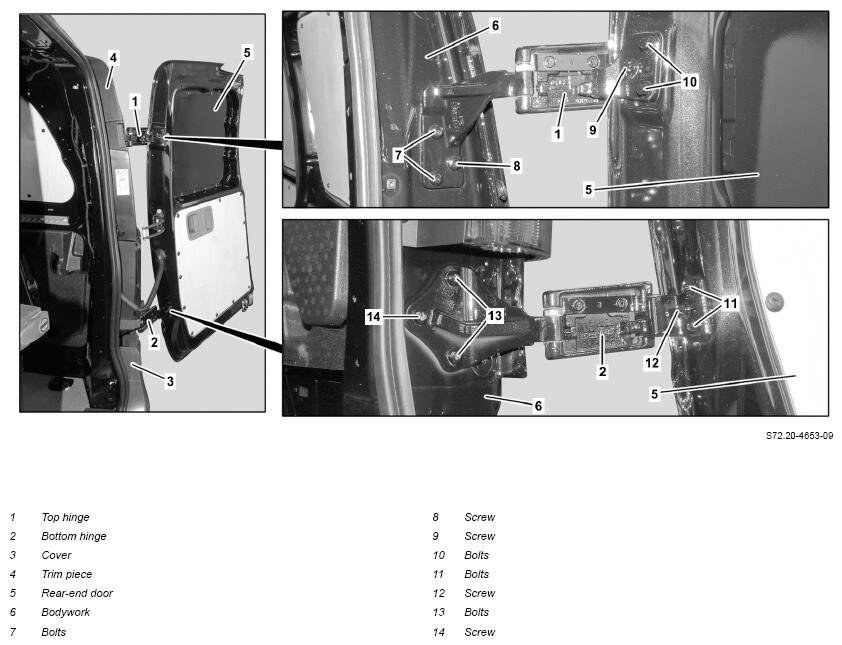

Shown On right rear-end door (5)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Removing and installing upper hinge (1) | |||
| 1 | Remove corresponding trim piece (4) | AR88.85-S-5474E | |
| 2 | Mark installation position of upper hinge (1) on body (6) and rear-end door (5) | ||
| 3 | Unscrew screws/bolts (7, 10) | ||
| 4 | Secure corresponding rear-end door (5) against falling down | ||
| 5 | Unscrew bolts (8, 9) and remove upper hinge (1) | ||
| 6 | Install top hinge (1) in reverse order | ||
| Removing and installing lower hinge (2) | |||
| 7 | Remove corresponding paneling (3) | ||
| 8 | Mark installation position of lower hinge (2) on body (6) and rear-end door (5) | ||
| 9 | Secure corresponding rear-end door (5) against falling down | ||
| 10 | Unscrew screws/bolts (11, 13) | ||
| 11 | Unscrew bolts (12, 14) and remove lower hinge (2) | ||
| 12 | Install bottom hinge (2) in reverse order | ||
| Adjust | |||
| 13 | Adjust upper hinge (1) and lower hinge (2) | AR72.20-S-1032E |
