Remove/Install Trim On Rear Pillar - AR88.85-S-5474E
Model 447 with CODE W50 (Rear-end door, double-wing, 180 degrees without window)
Model 447 with CODE W54 (Hinged rear doors, opening to side wall)

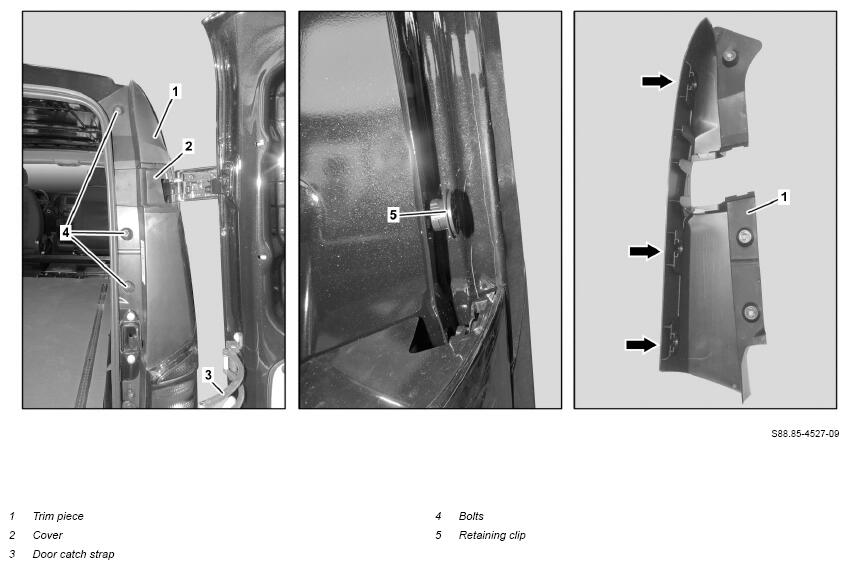

Shown on right side of vehicle
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove | |||
| 1 | Open corresponding rear-end door and unhook door check strap (3) | ||
| 2 | Remove cover (2) | ||
| 3 | Remove screws (4) | ||
| 4 | Pull trim piece (1) toward rear and remove | ||
| Install | |||
| 5 | Position mount (arrows) on trim piece (1) on corresponding retaining clip (5) and position trim piece (1) | ||
| 6 | Align trim piece (1) along vehicle contour and tighten with bolts (4) | ||
| 7 | Install cover (2) | ||
| 8 | Hook in door check strap (3) and close corresponding rear-end door |
