Disassemble/Assemble Rear-End Door (Left Door Wing) - AR72.20-S-2401E
Model 447.6/7
Shown On vehicle With Code W78 (Window in liftgate/rear-end door with wipe/wash system)
| Remove | |||
| 1 | Remove rear-end door (1) | Model 447.6/7 with code W50 (Rear-end door, double-wing, 180 degrees without window) Model 447.6/7 with code W54 (2-wing rear-end door, 270 degrees) If necessary. |
AR72.20-S-1901E |
| Disassemble/assemble | |||
| 2 | Remove door paneling from rear door (1) | AR72.20-S-6615E | |
| 3 | Remove door foil from rear-end door (1) | If the rear door (1) is replaced or repaired: ↓ Perform hollow cavity preservation on rear-end door (1). |
AR72.20-S-4100E |
| AR97.20-S-1500E | |||
| 4 | Remove left rear-end door wiper motor (M6/10) | AR82.30-S-6551E | |
| 5 | Remove left inner lock at top of rear-end door (7) | AR72.40-S-4430E | |
| 6 | Remove left inner lock at bottom of rear-end door (11) | AR72.40-S-4436E | |
| 7 | Remove inside door opener (4) from rear-end door (1) | ||
| 8 | Remove rear window (8) | MODEL 447.6/7 with CODE W78 (Window in liftgate/rear-end door with wiper/washer system) | AR67.20-S-5145EE |
| 9 | Remove license plate lamp bracket (10) | Model 447.6/7 with code W50 (Rear-end door, double-wing, 180 degrees without window) Model 447.6/7 with code W54 (2-wing rear-end door, 270 degrees) |
AR72.20-S-1010E |
| 10 | Remove license plate | ||
| 11 | Remove bracket (9) | ||

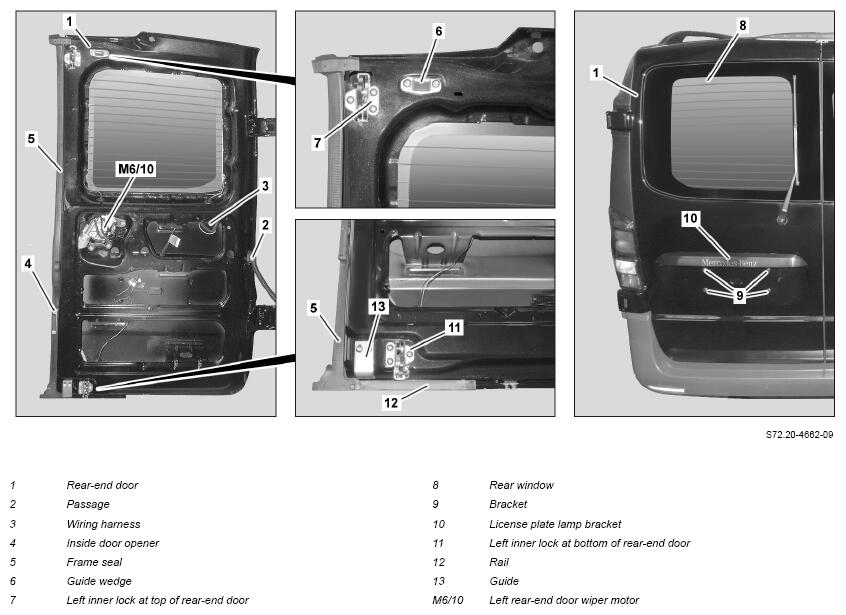

| 12 | Remove passage (2) and wiring harness (3) | Fig 1 | |
| 13 | Remove guide wedge (6) | ||
| 14 | Remove guide (13) | ||
| 15 | Remove sealing frame (5) | ||
| 16 | Drill rivet out of strip (12) and remove strip (12) General information on riveting |
AH60.00-P-0003-01N | |
| 17 | Remove door retaining strap from rear-end door (1) | Model 447.6/7 with code W54 (2-wing rear-end door, 270 degrees) |
*BA72.20-Z-1010-01KOJ |
| 18 | Remove door holder (magnetic) from rear-end door (1) | Model 447.6/7 with code W54 (2-wing rear-end door, 270 degrees) | AR72.20-S-2792E |
| 19 | Drill out rivet on mounting rail for door holder (magnetic) and remove mounting rail from rear-end door (1) General information on riveting |
AH60.00-P-0003-01N | |
| 20 | Remove hinges from rear-end door (1) | Model 447.6/7 with code W50 (Rear-end door, double-wing, 180 degrees without window) Model 447.6/7 with code W54 (2-wing rear-end door, 270 degrees) If rear-end door (1) is removed. |
AR72.20-S-2650E |
| 21 | Heat model badge with hot air blower and remove | If installed. Attach model badge to rear-end door (1) |
AR72.15-S-0001E |
| 22 | Remove all cable ducts, retaining clips and clamps from rear-end door (1) | ||
| 23 | Assemble in the reverse order | ||
| Install | |||
| 24 | Install rear-end door (1) | Model 447.6/7 with code W50 (Rear-end door, double-wing, 180 degrees without window) Model 447.6/7 with code W54 (2-wing rear-end door, 270 degrees) If rear-end door (1) is removed. |
AR72.20-S-1901E |
| Check | |||
| 25 | Check electrical consumers on rear-end door (1) for proper function |
REAR-END DOOR
| Number | Designation | Model 447.6/7 with code W54 | Model 447.6/7 with code W50 | |
|---|---|---|---|---|
| BA72.20-Z-1010-01KOJ | Bracket, door arrester to door | Nm | 23 | 23 |
