Remove/Install Door Holder (Magnetic) With Stop - AR72.20-S-2792E

Model 447.6/7

With Code W54 (Hinged rear doors, opening to side wall)

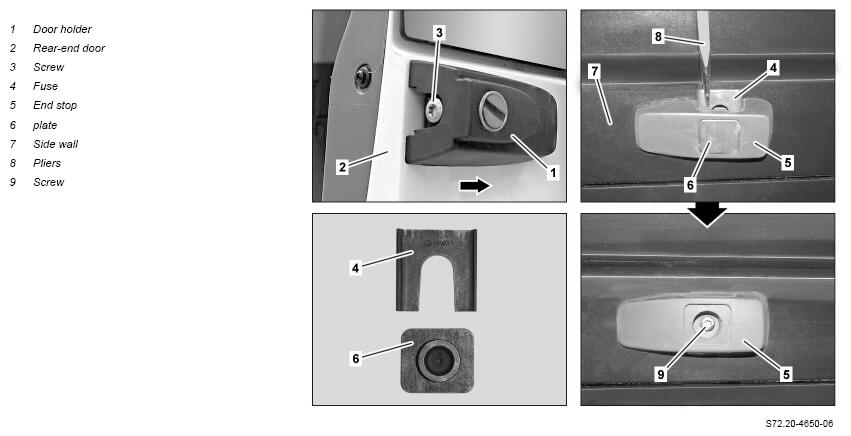

Shown On right side of vehicle

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove/install
1	Open corresponding rear-end door (2)
2	Unscrew bolt (3)	When removing door holder (1).
3	Remove door holder (1) in direction of arrow	When removing door holder (1). If necessary, moisten door holder (1) in area of mount with lubricant. Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
4	Remove retainer (4) upward with pliers (8) as shown	When removing end stop (5). Cover side wall (7) with suitable adhesive tape if necessary. Otherwise the side wall (7) can be damaged.
5	Remove plate (6)	When removing end stop (5). Observe assembly position of plate (6).
6	Unscrew bolts (9) and remove stop (5)	When removing end stop (5). Observe assembly position of end stop (5).
7	Install in the reverse order
