Remove/Install Panoramic Sliding Sunroof - AR77.21-S-6923E
Model 447.7/8, 448.8
MODIFICATION NOTES
| 31.10.2018 | Operation step added. | Operation step 1 |

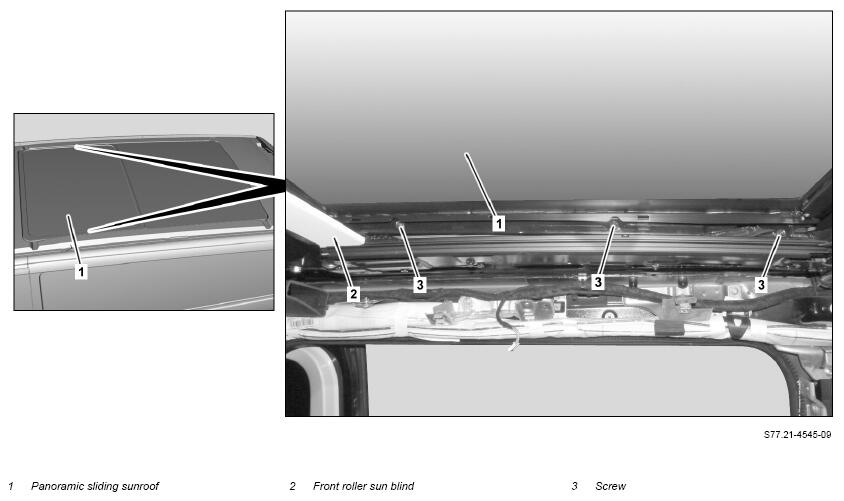

Shown with removed headliner
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove | |||
| 1 | Remove left and right side cover panel for panoramic sliding sunroof (1). | AR77.21-S-0116E | |
| 2 | Remove all screws (3) at left and right side of panoramic sliding sunroof (1). | ||
| 3 | Remove panoramic sliding sunroof (1) from panorama roof frame, guide downwards into vehicle interior and remove from vehicle. | ||
| Install | |||
| 4 | Position panoramic sliding sunroof (1) at panorama roof frame. | ||
| 5 | Screw in screws (3) at left and right side of panoramic sliding sunroof (1) up to end stop. | ||
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Adjust | |||
| 6 | Adjust panoramic sliding sunroof (1). | AR77.21-S-6924E |
