Outer Rear Wheel Well Partial Replacement - Ar63.10-S-0660E

Model 447, 448

Shown on left side of vehicle

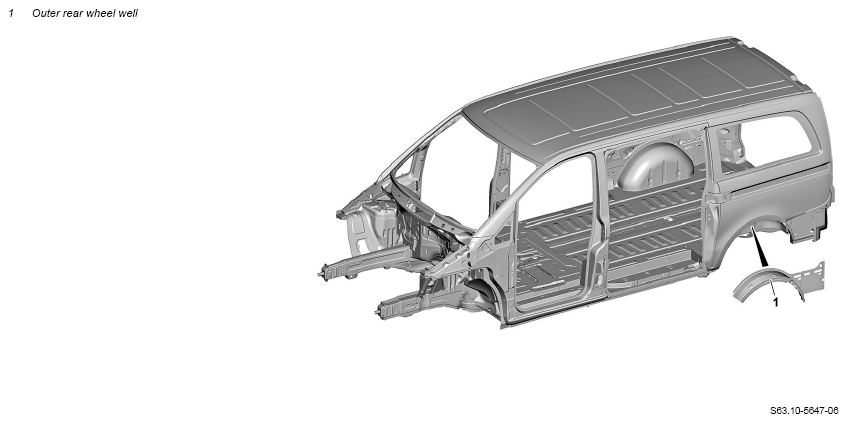

Fig 1: Outer Rear Wheel Well Component Location
G16483483Courtesy of MERCEDES-BENZ USA
DANGER The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. AS00.00-Z-0007-01A
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.
Model 447 with engine 780		 AS00.00-Z-0035-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.		 AS00.00-Z-0017-01A
Notice General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment Model 447 with engine 780 AH00.00-Z-0300-01A
Notice Special instructions for lifting and supporting vehicle   AH00.60-S-0100-01KOA
Notice General information on body repair   AH60.00-P-0001-01KOA
Notice Measures for preventing damage to components when performing electric welding and soldering work   AH60.00-P-0001-02A
  General information on riveting   AH60.00-P-0003-01N
  General information on MB materials   AH98.00-P-9409-03A
REMOVING Remove
1 Remove all detachable parts in area of repair point.
2 Cover all detachable parts remaining in vehicle with welding protection blankets. IMPORTANTCommercially available devices/tools
Welding protection blanket
3.1 Remove respective sidewall paneling up to window cutout. Only with corresponding damage profile.
Model 447.601/603/605
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W29 (Window fixed behind)
except code T19 (Sliding door left)
Model 447.701/703/705
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W29 (Window fixed behind)
except code T19 (Sliding door left)
Model 447.701/703/705
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W32 (Rear passenger compartment electric pop-out windows)
except code T19 (Sliding door left)
Model 447.701/703/705
with code W18 (Sliding window front left in side/sliding door)
with code W29 (Window fixed behind)
except code T19 (Sliding door left)
Model 447.701/703/705
with code W18 (Sliding window front left in side/sliding door)
with code W32 (Rear passenger compartment electric pop-out windows)
except code T19 (Sliding door left)
Model 447.811/813/815
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W29 (Window fixed behind)
except code T19 (Sliding door left)
Model 447.811/813/815
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W32 (Rear passenger compartment electric pop-out windows)
except code T19 (Sliding door left)
Model 448.705
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W29 (Window fixed behind)
except code T19 (Sliding door left)
Model 448.705
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W32 (Rear passenger compartment electric pop-out windows)
except code T19 (Sliding door left)		 AR63.10-S-0002E
    Model 447.601/603/605
with code T19 (Sliding door left)
with code W29 (Window fixed behind)
Left side of vehicle Model 447.601/603/605
with code W29 (Window fixed behind)
Right side of vehicle Model 447.701/703/705
with code T19 (Sliding door left)
with code W29 (Window fixed behind)
with code ZK4 (Mixto)
Left side of vehicle Model 447.701/703/705
with code W29 (Window fixed behind)
with code ZK4 (Mixto)
Right side of vehicle Model 447.811/813/815
Right side of vehicle Model 447.811/813/815
with code T19 (Sliding door left)
Left side of vehicle Model 448.705
with code T19 (Sliding door left)
with code W29 (Window fixed behind)
Left side of vehicle Model 448.705
with code W29 (Window fixed behind)
Right side of vehicle Model 448.813/815
Right side of vehicle Model 448.813/815
with code T19 (Sliding door left)
Left side of vehicle		 AR63.10-S-5893E
3.2 Remove respective sidewall paneling up to sliding door guide rail. Only with corresponding damage profile.
Model 447.601/603/605
with code T19 (Sliding door left)
with code W29 (Window fixed behind)
Left side of vehicle Model 447.601/603/605
with code W29 (Window fixed behind)
Right side of vehicle Model 447.701/703/705
with code T19 (Sliding door left)
with code W29 (Window fixed behind)
with code ZK4 (Mixto)
Left side of vehicle Model 447.701/703/705
with code W29 (Window fixed behind)
with code ZK4 (Mixto)
Right side of vehicle Model 447.811/813/815
Right side of vehicle Model 447.811/813/815
with code T19 (Sliding door left)
Left side of vehicle Model 448.705
with code T19 (Sliding door left)
with code W29 (Window fixed behind)
Left side of vehicle Model 448.705
with code W29 (Window fixed behind)
Right side of vehicle Model 448.813/815
Right side of vehicle Model 448.813/815
with code T19 (Sliding door left)
Left side of vehicle		 AR63.10-S-5815E
3.3 Remove respective complete sidewall paneling. Only with corresponding damage profile.
Model 447.601/603/605
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W29 (Window fixed behind)
except code T19 (Sliding door left)
Model 447.701/703/705
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W29 (Window fixed behind)
except code T19 (Sliding door left)
Model 447.701/703/705
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W32 (Rear passenger compartment electric pop-out windows)
except code T19 (Sliding door left)
Model 447.701/703/705
with code W18 (Sliding window front left in side/sliding door)
with code W29 (Window fixed behind)
except code T19 (Sliding door left)
Model 447.701/703/705
with code W18 (Sliding window front left in side/sliding door)
with code W32 (Rear passenger compartment electric pop-out windows)
except code T19 (Sliding door left)
Model 447.811/813/815
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W29 (Window fixed behind)
except code T19 (Sliding door left)
Model 447.811/813/815
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W32 (Rear passenger compartment electric pop-out windows)
except code T19 (Sliding door left)
Model 448.705
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W29 (Window fixed behind)
except code T19 (Sliding door left)
Model 448.705
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W32 (Rear passenger compartment electric pop-out windows)
except code T19 (Sliding door left)		 AR63.10-S-0120E
    Model 447.601/603/605
with code T19 (Sliding door left)
with code W29 (Window fixed behind)
Left side of vehicle Model 447.601/603/605
with code W29 (Window fixed behind)
Right side of vehicle Model 447.701/703/705
with code T19 (Sliding door left)
with code W29 (Window fixed behind)
with code ZK4 (Mixto)
Left side of vehicle Model 447.701/703/705
with code W29 (Window fixed behind)
with code ZK4 (Mixto)
Right side of vehicle Model 447.811/813/815
Right side of vehicle Model 447.811/813/815
with code T19 (Sliding door left)
Left side of vehicle Model 448.705
with code T19 (Sliding door left)
with code W29 (Window fixed behind)
Left side of vehicle Model 448.705
with code W29 (Window fixed behind)
Right side of vehicle Model 448.813/815
Right side of vehicle Model 448.813/815
with code T19 (Sliding door left)
Left side of vehicle		 AR63.10-S-0126E
    Model 447.601/603/605
except code T19 (Sliding door left)
except code W16 (Window front left, fixed, in sidewall/sliding door)
except code W29 (Window fixed behind)		 AR63.10-S-0100E
    Model 447.601/603/605
except code W29 (Window fixed behind)
Right side of vehicle Model 447.601/603/605
with code T19 (Sliding door left)
except code W29 (Window fixed behind)
Left side of vehicle Model 447.701/703/705
except code W29 (Window fixed behind)
except code W32 (Rear passenger compartment electric pop-out windows)
Right side of vehicle Model 447.701/703/705
with code T19 (Sliding door left)
except code W29 (Window fixed behind)
except code W32 (Rear passenger compartment electric pop-out windows)
Left side of vehicle		 AR63.10-S-0110E
4 Remove rear sidewall paneling lower section. Only if removing sidewall paneling up to sliding door guide rail or sidewall paneling up to window cutout. AR63.10-S-5665E
5 Remove outer rear wheel well (1) section. IMPORTANTCommercially available devices/tools
Body power jigsaw
Spot weld milling machine
Rotary wire brush
Wet and dry vacuum cleaner		 AR63.10-S-0660-02E
    Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
6 Partially prepare rear outer wheel well (1). IMPORTANTCommercially available devices/tools
Body power jigsaw
Rotary wire brush
Wet and dry vacuum cleaner		 AR63.10-S-0660-03E
    Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
INSTALLING Install
7 Install and weld in outer rear wheel well (1) section.   AR63.10-S-0660-04E
REFER TO SPECIAL TOOLS 000 588 13 84 00 Welder IMPORTANTCommercially available devices/tools
Clamping pliers (Standard)
Hand drill
Rotary wire brush
Blind riveting tool (set force > 19 kN)
Wet and dry vacuum cleaner		 WS60.00-P-0437K
    Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
    Blind rivet 6.4x14 (clamping range 1 mm to 8.5 mm, draw-off strength min. 10.8 kN) *BR00.45-Z-1001-13A
8 Install rear sidewall paneling lower section. Only if removing sidewall paneling up to sliding door guide rail or sidewall paneling up to window cutout. AR63.10-S-5665E
9.1 Install respective sidewall paneling up to window cutout. Only with corresponding damage profile.
Model 447.601/603/605
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W29 (Window fixed behind)
except code T19 (Sliding door left)
Model 447.701/703/705
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W29 (Window fixed behind)
except code T19 (Sliding door left)
Model 447.701/703/705
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W32 (Rear passenger compartment electric pop-out windows)
except code T19 (Sliding door left)
Model 447.701/703/705
with code W18 (Sliding window front left in side/sliding door)
with code W29 (Window fixed behind)
except code T19 (Sliding door left)
Model 447.701/703/705
with code W18 (Sliding window front left in side/sliding door)
with code W32 (Rear passenger compartment electric pop-out windows)
except code T19 (Sliding door left)
Model 447.811/813/815
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W29 (Window fixed behind)
except code T19 (Sliding door left)
Model 447.811/813/815
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W32 (Rear passenger compartment electric pop-out windows)
except code T19 (Sliding door left)
Model 448.705
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W29 (Window fixed behind)
except code T19 (Sliding door left)
Model 448.705
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W32 (Rear passenger compartment electric pop-out windows)
except code T19 (Sliding door left)		 AR63.10-S-0002E
    Model 447.601/603/605
with code T19 (Sliding door left)
with code W29 (Window fixed behind)
Left side of vehicle Model 447.601/603/605
with code W29 (Window fixed behind)
Right side of vehicle Model 447.701/703/705
with code T19 (Sliding door left)
with code W29 (Window fixed behind)
with code ZK4 (Mixto)
Left side of vehicle Model 447.701/703/705
with code W29 (Window fixed behind)
with code ZK4 (Mixto)
Right side of vehicle Model 447.811/813/815
Right side of vehicle Model 447.811/813/815
with code T19 (Sliding door left)
Left side of vehicle Model 448.705
with code T19 (Sliding door left)
with code W29 (Window fixed behind)
Left side of vehicle Model 448.705
with code W29 (Window fixed behind)
Right side of vehicle Model 448.813/815
Right side of vehicle Model 448.813/815
with code T19 (Sliding door left)
Left side of vehicle		 AR63.10-S-5893E
9.2 Remove respective sidewall paneling up to sliding door guide rail. Only with corresponding damage profile.
Model 447.601/603/605
with code T19 (Sliding door left)
with code W29 (Window fixed behind)
Left side of vehicle Model 447.601/603/605
with code W29 (Window fixed behind)
Right side of vehicle Model 447.701/703/705
with code T19 (Sliding door left)
with code W29 (Window fixed behind)
with code ZK4 (Mixto)
Left side of vehicle Model 447.701/703/705
with code W29 (Window fixed behind)
with code ZK4 (Mixto)
Right side of vehicle Model 447.811/813/815
Right side of vehicle Model 447.811/813/815
with code T19 (Sliding door left)
Left side of vehicle Model 448.705
with code T19 (Sliding door left)
with code W29 (Window fixed behind)
Left side of vehicle Model 448.705
with code W29 (Window fixed behind)
Right side of vehicle Model 448.813/815
Right side of vehicle Model 448.813/815
with code T19 (Sliding door left)
Left side of vehicle		 AR63.10-S-5815E
9.3 Install respective complete sidewall paneling. Only with corresponding damage profile.
Model 447.601/603/605
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W29 (Window fixed behind)
except code T19 (Sliding door left)
Model 447.701/703/705
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W29 (Window fixed behind)
except code T19 (Sliding door left)
Model 447.701/703/705
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W32 (Rear passenger compartment electric pop-out windows)
except code T19 (Sliding door left)
Model 447.701/703/705
with code W18 (Sliding window front left in side/sliding door)
with code W29 (Window fixed behind)
except code T19 (Sliding door left)
Model 447.701/703/705
with code W18 (Sliding window front left in side/sliding door)
with code W32 (Rear passenger compartment electric pop-out windows)
except code T19 (Sliding door left)
Model 447.811/813/815
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W29 (Window fixed behind)
except code T19 (Sliding door left)
Model 447.811/813/815
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W32 (Rear passenger compartment electric pop-out windows)
except code T19 (Sliding door left)
Model 448.705
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W29 (Window fixed behind)
except code T19 (Sliding door left)
Model 448.705
with code W16 (Window front left, fixed, in sidewall/sliding door)
with code W32 (Rear passenger compartment electric pop-out windows)
except code T19 (Sliding door left)		 AR63.10-S-0120E
    Model 447.601/603/605
with code T19 (Sliding door left)
with code W29 (Window fixed behind)
Left side of vehicle Model 447.601/603/605
with code W29 (Window fixed behind)
Right side of vehicle Model 447.701/703/705
with code T19 (Sliding door left)
with code W29 (Window fixed behind)
with code ZK4 (Mixto)
Left side of vehicle Model 447.701/703/705
with code W29 (Window fixed behind)
with code ZK4 (Mixto)
Right side of vehicle Model 447.811/813/815
Right side of vehicle Model 447.811/813/815
with code T19 (Sliding door left)
Left side of vehicle Model 448.705
with code T19 (Sliding door left)
with code W29 (Window fixed behind)
Left side of vehicle Model 448.705
with code W29 (Window fixed behind)
Right side of vehicle Model 448.813/815
Right side of vehicle Model 448.813/815
with code T19 (Sliding door left)
Left side of vehicle		 AR63.10-S-0126E
    Model 447.601/603/605
except code W29 (Window fixed behind)
Right side of vehicle Model 447.601/603/605
with code T19 (Sliding door left)
except code W29 (Window fixed behind)
Left side of vehicle Model 447.701/703/705
except code W29 (Window fixed behind)
except code W32 (Rear passenger compartment electric pop-out windows)
Right side of vehicle Model 447.701/703/705
with code T19 (Sliding door left)
except code W29 (Window fixed behind)
except code W32 (Rear passenger compartment electric pop-out windows)
Left side of vehicle		 AR63.10-S-0110E
    Model 447.601/603/605
except code T19 (Sliding door left)
except code W16 (Window front left, fixed, in sidewall/sliding door)
except code W29 (Window fixed behind)		 AR63.10-S-0100E
10 Remove welding protection blankets. IMPORTANTCommercially available devices/tools
Welding protection blanket
11 Install all detachable parts in area of repair point.
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1001-07A Zinc dust paint suitable for spot welding A 000 986 34 42
BR00.45-Z-1001-13A Blind rivet 6.4x14 (clamping range 1 mm to 8.5 mm, draw-off strength min. 10.8 kN) A 003 990 35 97
scientia non olet · About LEMON Manuals
