Remove/Install Automatic Transmission Oil Pan - AR27.10-P-7030EWM

TRANSMISSION 725.0

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove/install
1	Secure vehicle on vehicle lift	Transmission 725.0 in model 172	AR00.60-P-0100T
		Transmission 725.0 in model 231	AR00.60-P-0100TX
		Transmission 725.0 in model 166, 292	AR00.60-P-0100GZ
		Transmission 725.0 in model 205, 207, 213, 217, 222, 238, 253	AR00.60-P-0100CW
		Transmission 725.0 in model 212, 218 Only release vehicle after leak test.	AR00.60-P-0100EWS
2.1	Remove center and rear sections of lower engine compartment lining	Transmission 725.0 in model 172.4 with engine 274 Transmission 725.0 in model 172.4 with engine 276 Transmission 725.0 in model 205, 213, 217, 222, 231, 238, 253 Transmission 725.0 in model 218 with engine 276 Transmission 725.0 in model 218 with engine 278
		Transmission 725.0 in model 217, 222	AR61.20-P-1105LF
		Transmission 725.0 in model 205, 253	AR61.20-P-1105LW
		Transmission 725.0 in model 213, 238	AR61.20-P-1105LWE
		Transmission 725.0 in model 231	AR61.20-P-1105RK
		Transmission 725.0 in model 172.4 with engine 274 Transmission 725.0 in model 172.4 with engine 276	AR61.20-P-1105W
		Transmission 725.0 in model 218 with engine 276 Transmission 725.0 in model 218 with engine 278 Only install center and rear lower rear engine compartment paneling again after leak test.	AR61.20-P-1105EW
2.2	Remove middle and rear underfloor paneling	Transmission 725.0 in model 166, 292
			AR61.30-P-1001GQ
		Install center and rear underfloor paneling only after leak test has been performed.
2.3	Remove center and rear bottom section of soundproofing	Transmission 725.0 in model 172.4 with engine 651 Transmission 725.0 in model 207, 212, 218 with engine 642 Transmission 725.0 in model 207, 212, 218 with engine 651
		Transmission 725.0 in model 207, 212, 218 with engine 642 Transmission 725.0 in model 207, 212, 218 with engine 651	AR94.30-P-5300EW
		Transmission 725.0 in model 172.4 with engine 651 Install center and rear bottom section of soundproofing only after leak test.	AR94.30-P-5300W

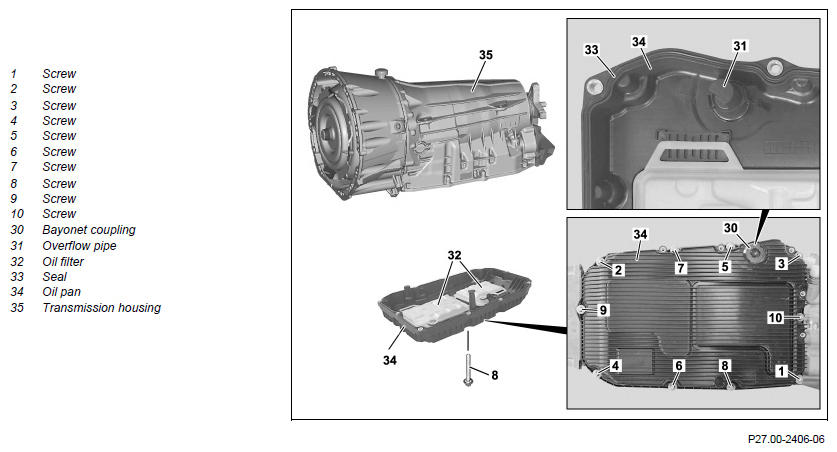

3	Clean oil pan (34) and surrounding area thoroughly	Assembly cleaner	*BR00.45-Z-1028-04A
4	Drain the transmission oil and collect for determining the quantity of transmission	Open bayonet coupling (30) and pry off overflow pipe (31) from the base using a suitable tool. The remaining transmission oil drains out immediately after prying off. Replace sealing ring of bayonet coupling (30).
5.1	Remove rear engine support	Transmission 725.0 in model 217, 222 except code M005 (4MATIC)
		Transmission 725.0 in model 217, 222 with engine 278 except code M005 (4MATIC) Transmission 725.0 in model 222 with engine 276 except code M005 (4MATIC) Transmission 725.0 in model 222 with engine 642 except code M005 (4MATIC)	AR22.10-P-1180LF
		Transmission 725.0 in model 217, 222 with engine 176 except code M005 (4MATIC) Transmission 725.0 in model 222 with engine 656	AR22.10-P-4360OIA
5.2	Remove rear engine mount	Transmission 725.0 in model 217, 222 with code M005 (4MATIC)
		Transmission 725.0 in model 217, 222 with engine 276 with code M005 (4MATIC) Transmission 725.0 in model 217, 222 with engine 278 with code M005 (4MATIC) Transmission 725.0 in model 222 with engine 642 with code M005 (4MATIC)	AR22.10-P-1180LF
		Transmission 725.0 in model 217, 222 with engine 176 with code M005 (4MATIC) Transmission 725.0 in model 222 with engine 656 with code M005 (4MATIC)	AR22.10-P-1160OIA
6	Remove screws/bolts (9, 10)	Replace screws/bolts (9, 10). Tighten screws/bolts (9, 10) of oil pan (34) in numerical sequence.
		Screw/bolt, oil pan to transmission housing	*BA27.10-P-1010-04H
7.1	Install rear engine support	Transmission 725.0 in model 217, 222 except code M005 (4MATIC)
		Transmission 725.0 in model 217, 222 with engine 278 except code M005 (4MATIC) Transmission 725.0 in model 222 with engine 276 except code M005 (4MATIC) Transmission 725.0 in model 222 with engine 642 except code M005 (4MATIC)	AR22.10-P-1180LF
		Transmission 725.0 in model 217, 222 with engine 176 except code M005 (4MATIC) Transmission 725.0 in model 222 with engine 656 except code M005 (4MATIC)	AR22.10-P-4360OIA
7.2	Install rear engine mount	Transmission 725.0 in model 217, 222 with code M005 (4MATIC)
		Transmission 725.0 in model 217, 222 with engine 276 with code M005 (4MATIC) Transmission 725.0 in model 217, 222 with engine 278 with code M005 (4MATIC) Transmission 725.0 in model 222 with engine 642 with code M005 (4MATIC)	AR22.10-P-1180LF
		Transmission 725.0 in model 217, 222 with engine 176 with code M005 (4MATIC) Transmission 725.0 in model 222 with engine 656 with code M005 (4MATIC)	AR22.10-P-1160OIA
8	Remove screws/bolts (1 to 8)	Replace screws/bolts (1 to 8). Tighten screws/bolts (1 to 8) of oil pan (34) in numerical sequence.
		Screw/bolt, oil pan to transmission housing	*BA27.10-P-1010-04H
9	Remove oil pan (34) from transmission housing (35)	When exchanging oil filter, replace oil pan (34). Oil filters (32) cannot be obtained individually. Replace O-rings on oil filters (32).
10	Remove overflow pipe (31) from oil pan (34)	Press overflow pipe (31) firmly onto base of oil pan (34).
11	Check overflow pipe (31) for signs of damage	If damage is present ↓ Replace overflow pipe (31).
12	Remove seal (33)	Do not apply any sealant or sealing compound to oil pan (34) and transmission housing (35). Leaks can occur otherwise. Replace seal (33).
13	Clean sealing surfaces of oil pan (34) and magnets	Sealing surfaces must be absolutely free of oil and grease. Leaks can occur otherwise. Allow assembly cleaner to flash off completely.
		Assembly cleaner	*BR00.45-Z-1028-04A
14	Install in the reverse order
15	Fill transmission with oil	Transmission 725.0 as of model year 2015	AR27.00-P-0270EWN
		Transmission 725.0 up to model year 2015 Always follow the work procedure and observe the Specifications for Operating Fluids. Otherwise the transmission may be damaged.	AR27.00-P-0270EWM
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
16	Test run engine and check transmission for leak tightness and proper operation
17.1	Install center and rear sections of lower engine compartment lining	Transmission 725.0 in model 172.4 with engine 274 Transmission 725.0 in model 172.4 with engine 276 Transmission 725.0 in model 205, 213, 217, 222, 231, 238, 253 Transmission 725.0 in model 218 with engine 276 Transmission 725.0 in model 218 with engine 278
		Transmission 725.0 in model 217, 222	AR61.20-P-1105LF
		Transmission 725.0 in model 205, 253	AR61.20-P-1105LW
		Transmission 725.0 in model 213, 238	AR61.20-P-1105LWE
		Transmission 725.0 in model 231	AR61.20-P-1105RK
		Transmission 725.0 in model 172.4 with engine 274 Transmission 725.0 in model 172.4 with engine 276	AR61.20-P-1105W
		Transmission 725.0 in model 218 with engine 276 Transmission 725.0 in model 218 with engine 278	AR61.20-P-1105EW
17.2	Install center and rear underfloor paneling	Transmission 725.0 in model 166, 292
			AR61.30-P-1001GQ
17.3	Install center and rear bottom section of soundproofing	Transmission 725.0 in model 172.4 with engine 651 Transmission 725.0 in model 207, 212, 218 with engine 642 Transmission 725.0 in model 207, 212, 218 with engine 651
		Transmission 725.0 in model 207, 212, 218 with engine 642	AR94.30-P-5300EW
		Transmission 725.0 in model 207, 212, 218 with engine 651 Transmission 725.0 in model 172.4 with engine 651	AR94.30-P-5300W
18	Disconnect vehicle from vehicle lift	Transmission 725.0 in model 172	AR00.60-P-0100T
		Transmission 725.0 in model 231	AR00.60-P-0100TX
		Transmission 725.0 in model 166, 292	AR00.60-P-0100GZ
		Transmission 725.0 in model 205, 207, 213, 217, 222, 238, 253	AR00.60-P-0100CW
		Transmission 725.0 in model 212, 218	AR00.60-P-0100EWS

AUTOMATIC TRANSMISSION COMPLETE

Number	Designation			Transmission 725.0
BA27.10-P-1010-04H	Screw/bolt, oil pan to transmission housing	Stage 1	Nm	4
		Stage 2	∠°	90

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1028-04A	Assembly cleaner	Adolf Wurth GmbH & Co. KG
