Fill Automatic Transmission With Transmission Oil - AR27.00-P-0270EWN

TRANSMISSION 725.0 as of model year 2015

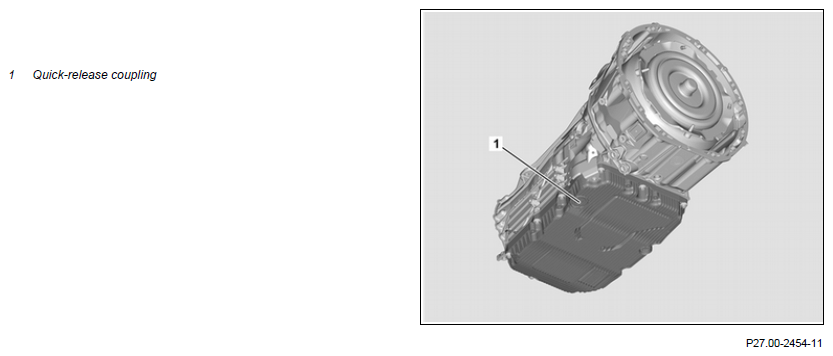

Shown on transmission 725.004

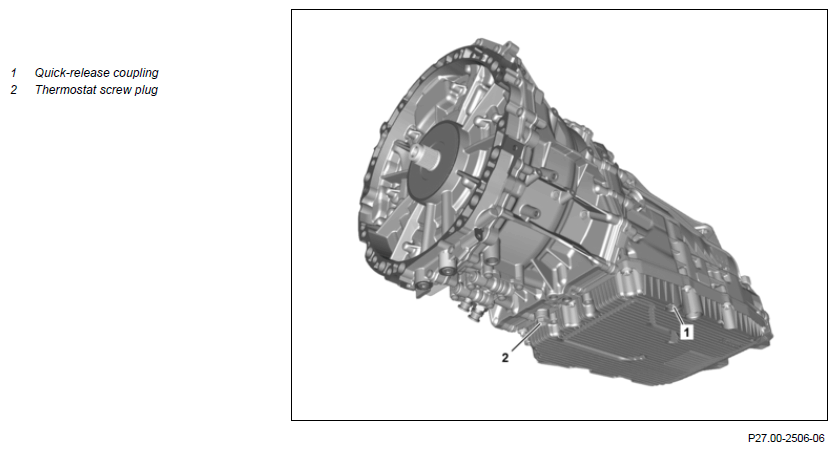

Shown on transmission 725.007

	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Fill with transmission oil
1	Shift transmission to neutral position and secure vehicle against rolling away.
2	Lift vehicle with lifting platform.	Transmission 725.0 in model 257 as of model year 2015	AR00.60-P-1005-02FR
		Transmission 725.0 in model 205, 213, 238, 253 as of model year 2015	AR00.60-P-1002LWG
		Transmission 725.0 in model 172 as of model year 2015	AR00.60-P-1000V
		Transmission 725.0 in model 166, 292 as of model year 2015	AR00.60-P-1000GZ
		Transmission 725.0 in model 231 as of model year 2015	AR00.60-P-1000TX
		Transmission 725.0 in model 217, 222 as of model year 2015	AR00.60-P-1000LF
		Transmission 725.0 in model 207 as of model year 2015	AR00.60-P-0100CW
		Transmission 725.0 in model 212, 218 as of model year 2015 Ensure that vehicle is level in longitudinal and transverse direction on vehicle lift.	AR00.60-P-0100EWS
3	Remove trim under transmission.	Transmission 725.0 in model 257 as of model year 2015	AR61.20-P-1105FR
		Transmission 725.0 in model 172.4 with engine 651 as of model year 2015	AR94.30-P-5300W
		Transmission 725.0 in model 207, 212, 218 with engine 642 as of model year 2015 Transmission 725.0 in model 207, 212, 218 with engine 651 as of model year 2015	AR94.30-P-5300EW
		Transmission 725.0 in model 172.4 with engine 274 as of model year 2015 Transmission 725.0 in model 172.4 with engine 276 as of model year 2015	AR61.20-P-1105W
		Transmission 725.0 in model 205, 253 with engine 177 as of model year 2015 Transmission 725.0 in model 205, 253 with engine 274 as of model year 2015 Transmission 725.0 in model 205, 253 with engine 276 as of model year 2015 Transmission 725.0 in model 205, 253 with engine 651 as of model year 2015 Transmission 725.0 in model 253 with engine 642 as of model year 2015	AR61.20-P-1105LW
		Transmission 725.0 in model 231 with engine 276 as of model year 2015 Transmission 725.0 in model 231 with engine 278 as of model year 2015	AR61.20-P-1105RK
		Transmission 725.0 in model 213 with engine 177 as of model year 2015 Transmission 725.0 in model 213 with engine 642 as of model year 2015 Transmission 725.0 in model 213, 238 with engine 274 as of model year 2015 Transmission 725.0 in model 213, 238 with engine 276 as of model year 2015 Transmission 725.0 in model 213, 238 with engine 654 as of model year 2015	AR61.20-P-1105LWE
		Transmission 725.0 in model 217, 222 with engine 176 as of model year 2015 Transmission 725.0 in model 217, 222 with engine 177 as of model year 2015 Transmission 725.0 in model 217, 222 with engine 278 as of model year 2015 Transmission 725.0 in model 222 with engine 256 as of model year 2015 Transmission 725.0 in model 222 with engine 276 as of model year 2015 Transmission 725.0 in model 222 with engine 642 as of model year 2015 Transmission 725.0 in model 222 with engine 656 as of model year 2015	AR61.20-P-1105LF
		Transmission 725.0 in model 218 with engine 276 as of model year 2015 Transmission 725.0 in model 218 with engine 278 as of model year 2015	AR61.20-P-1105EW
		Transmission 725.0 in model 166 with engine 651 as of model year 2015 Transmission 725.0 in model 166, 292 with engine 276 as of model year 2015 Transmission 725.0 in model 166, 292 with engine 278 as of model year 2015 Transmission 725.0 in model 166, 292 with engine 642 as of model year 2015	AR61.30-P-1001GQ
4	Position suitable oil receptacle under thermostat screw plug (2).
5	Remove thermostat screw plug (2) with spring and thermostat element.	Transmission 725.007/017/033/047 as of model year 2015 The thermostat element is under spring preload.
6	Screw in adapter with sealing ring into opening for thermostat element.	Transmission 725.007/017/033/047 as of model year 2015
6		Adapter	Fig 5
7	Position suitable oil receptacle under quick-release fastener (1) of oil pan.
8	Remove quick-release fastener (1).	Socket wrench	Fig 1
9	Attach adapter and connect oil dispenser.
	000 588 06 82 00 Oil dispenser		WS18.00-P-0026B
		Adjust air pressure at oil dispenser to 2 bar at the highest before filling transmission. Otherwise the oil pan may be damaged.	WS18.00-P-0026B
		Transmission 725.007/017/033/047 as of model year 2015 Adapter	Fig 4
		Transmission 725.0 (except 725.007/017/033/047) as of model year 2015 Adapter	Fig 2
10	Pump transmission oil into transmission.
	Automatic transmission fluids (ATF) (specification 236.17)		BB00.40-P-0236-17A
		If transmission oil was drained off, pour in the amount drained off + approx. 0.5 l of transmission oil. If no transmission oil was drained off, pump approx. 0.5 l of transmission oil into transmission.	BB00.40-P-0236-17A
		Filling capacity	*BF27.00-P-1001-01I
11	Disconnect adapter and oil dispenser and screw in quick-release fastener (1).
	000 588 06 82 00 Oil dispenser		WS18.00-P-0026B
		Transmission 725.007/017/033/047 as of model year 2015 Adapter	Fig 4
		Transmission 725.0 (except 725.007/017/033/047) as of model year 2015 Adapter	Fig 2
12.1	Start test routine, check transmission oil level and correct if necessary.	If an oil level sensor is used.
12.1		If an oil level sensor is used.	AR27.00-P-0270-02EWN
		Transmission 725.0 in model 257 as of model year 2015	AD00.00-P-2000-06FR
		Transmission 725.0 in model 205, 213, 217, 222, 253 as of model year 2015	AD00.00-P-2000-04B
		Transmission 725.0 in model 166, 172, 207, 212, 218, 231, 292 as of model year 2015	AD00.00-P-2000-04A
		Transmission 725.0 in model 238 as of model year 2015	AD00.00-P-2000-06LWO
	000 588 09 19 00 Oil level sensor		WS27.00-P-0188B
	000 588 06 82 00 Oil dispenser		WS18.00-P-0026B
	Automatic transmission fluids (ATF) (specification 236.17)		BB00.40-P-0236-17A
		MB Plastilube brake paste (brownish)	*BR00.45-Z-1084-06A
		Socket wrench	Fig 2
		Transmission 725.0 (except 725.007/017/033/047) as of model year 2015 Adapter	Fig 2
		Transmission 725.007/017/033/047 as of model year 2015 Adapter	Fig 4
		Socket wrench	Fig 1
12.2	Start test routine, check transmission oil level and correct if necessary.	If no oil level sensor is used.
12.2		If no oil level sensor is used.	AR27.00-P-0270-03EWN
		Transmission 725.0 in model 257 as of model year 2015	AD00.00-P-2000-06FR
		Transmission 725.0 in model 238 as of model year 2015	AD00.00-P-2000-06LWO
		Transmission 725.0 in model 166, 172, 207, 212, 218, 231, 292 as of model year 2015	AD00.00-P-2000-04A
		Transmission 725.0 in model 205, 213, 217, 222, 253 as of model year 2015	AD00.00-P-2000-04B
		Socket wrench	Fig 3
		Socket wrench	Fig 1
13	Remove adapter with sealing ring from opening for thermostat element.	Transmission 725.007/017/033/047 as of model year 2015
13		Adapter	Fig 5
14	Screw in thermostat screw plug (2) with spring and thermostat element.	Transmission 725.007/017/033/047 as of model year 2015
15	Install trim under transmission.	Transmission 725.0 in model 257 as of model year 2015	AR61.20-P-1105FR
		Transmission 725.0 in model 172.4 with engine 651 as of model year 2015	AR94.30-P-5300W
		Transmission 725.0 in model 207, 212, 218 with engine 642 as of model year 2015 Transmission 725.0 in model 207, 212, 218 with engine 651 as of model year 2015	AR94.30-P-5300EW
		Transmission 725.0 in model 172.4 with engine 274 as of model year 2015 Transmission 725.0 in model 172.4 with engine 276 as of model year 2015	R61.20-P-1105W
		Transmission 725.0 in model 205, 253 with engine 177 as of model year 2015 Transmission 725.0 in model 205, 253 with engine 274 as of model year 2015 Transmission 725.0 in model 205, 253 with engine 276 as of model year 2015 Transmission 725.0 in model 205, 253 with engine 651 as of model year 2015 Transmission 725.0 in model 253 with engine 642 as of model year 2015	AR61.20-P-1105LW
		Transmission 725.0 in model 231 with engine 276 as of model year 2015 Transmission 725.0 in model 231 with engine 278 as of model year 2015	AR61.20-P-1105RK
		Transmission 725.0 in model 213 with engine 177 as of model year 2015 Transmission 725.0 in model 213 with engine 642 as of model year 2015 Transmission 725.0 in model 213, 238 with engine 274 as of model year 2015 Transmission 725.0 in model 213, 238 with engine 276 as of model year 2015 Transmission 725.0 in model 213, 238 with engine 654 as of model year 2015	AR61.20-P-1105LWE
		Transmission 725.0 in model 217, 222 with engine 176 as of model year 2015 Transmission 725.0 in model 217, 222 with engine 177 as of model year 2015 Transmission 725.0 in model 217, 222 with engine 278 as of model year 2015 Transmission 725.0 in model 222 with engine 256 as of model year 2015 Transmission 725.0 in model 222 with engine 276 as of model year 2015 Transmission 725.0 in model 222 with engine 642 as of model year 2015 Transmission 725.0 in model 222 with engine 656 as of model year 2015	AR61.20-P-1105LF
		Transmission 725.0 in model 218 with engine 276 as of model year 2015 Transmission 725.0 in model 218 with engine 278 as of model year 2015	AR61.20-P-1105EW
		Transmission 725.0 in model 166 with engine 651 as of model year 2015 Transmission 725.0 in model 166, 292 with engine 276 as of model year 2015 Transmission 725.0 in model 166, 292 with engine 278 as of model year 2015 Transmission 725.0 in model 166, 292 with engine 642 as of model year 2015	AR61.30-P-1001GQ
16	Lower the vehicle from the vehicle lift.	Transmission 725.0 in model 257 as of model year 2015	AR00.60-P-1005-02FR
		Transmission 725.0 in model 205, 213, 238, 253 as of model year 2015	AR00.60-P-1002LWG
		Transmission 725.0 in model 166, 292 as of model year 2015	AR00.60-P-1000GZ
		Transmission 725.0 in model 172 as of model year 2015	AR00.60-P-1000V
		Transmission 725.0 in model 231 as of model year 2015	AR00.60-P-1000TX
		Transmission 725.0 in model 217, 222 as of model year 2015	AR00.60-P-1000LF
		Transmission 725.0 in model 207 as of model year 2015	AR00.60-P-0100CW
		Transmission 725.0 in model 212, 218 as of model year 2015	AR00.60-P-0100EWS

AUTOMATIC TRANSMISSION

Number	Designation			Transmission 725.0 (except 725.007/017/033/047)	Transmission 725.007/017/033/047
BF27.00-P-1001-01I	Filling capacity	with complete refill	Liter	≈ 10	≈ 11
BF27.00-P-1001-01I	Filling capacity	Specifications for Operating Fluids, sheet		BB00.40-P-0236-17A	BB00.40-P-0236-17A

Fig 1: Identifying Socket Wrench (724 589 01 09 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Adapter (725 589 00 90 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Socket Wrench (725 589 00 09 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Adapter (725 589 03 90 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Adapter (724 589 00 21 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1084-06A	MB Plastilube brake paste (brownish)	A 002 989 37 51
