Remove/Install Parktronic System (PTS) Control Unit - AR54.65-P-0006GQC

MODEL 292 with CODE 235 (Active Parking Assist with PARKTRONIC)

MODEL 292 with CODE P44 (Parking package)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Connect diagnostic system and store basic data of Parktronic system control unit (2)	When replacing the Parktronic system control unit (2).
			AD00.00-P-2000-04A
2	Switch off ignition and keep transmitter key at a location beyond transmitter range (at least 2 m)
3	Remove rear seat cushion		AR91.12-P-1021GQC
4	Remove folding rear seat backrest		AR91.12-P-1721GQC
5	Remove door sills in rear		AR68.30-P-4100GQ
6	Fold floor covering forward

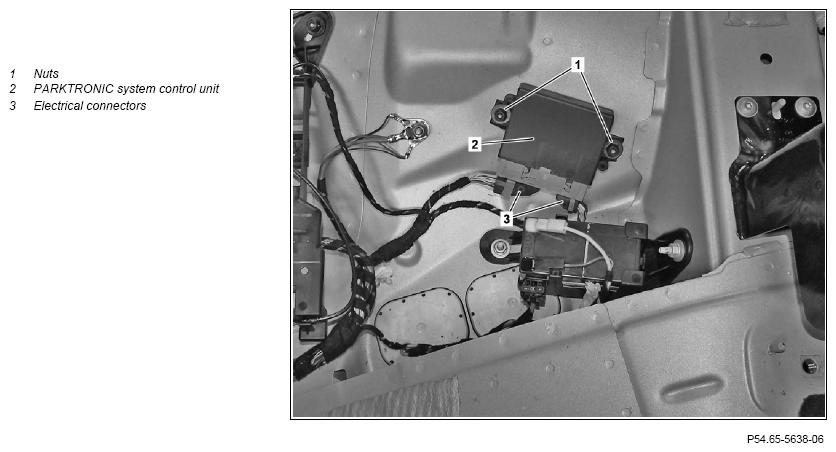

7	Unscrew nuts (1)
8	Remove Parktronic system control unit (2)
9	Disconnect electrical connectors (3)
10	Install in the reverse order
	Initial startup
11	Perform SCN coding of Parktronic system control unit (2) using diagnostic system	When replacing the Parktronic system control unit (2).	AR54.21-P-0015X
12	Transfer previously stored basic data to Parktronic system control unit (2)	When replacing the Parktronic system control unit (2).
			AD00.00-P-2000-04A
13	Perform initial startup of Parktronic system control unit (2)	When replacing the Parktronic system control unit (2).
