Remove/Install Rear Folding Backrest - AR91.12-P-1721GQC
MODEL 292
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical components to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such components. |
AS91.00-Z-0008-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating range of the mechanism when moving components. | AS00.00-Z-0009-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Disconnect battery ground line | AR54.10-P-0003GZ | |
| 2 | Fold over seat cushion | ||

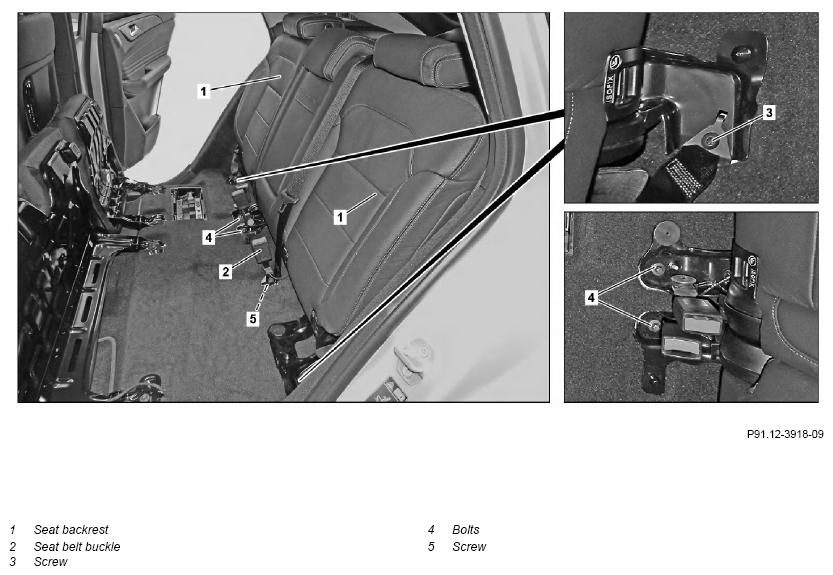

| 3 | Remove screws/bolts (3, 4, 5) | *BA91.40-P-1007-01R | |
| *BA91.12-P-1001-03F | |||

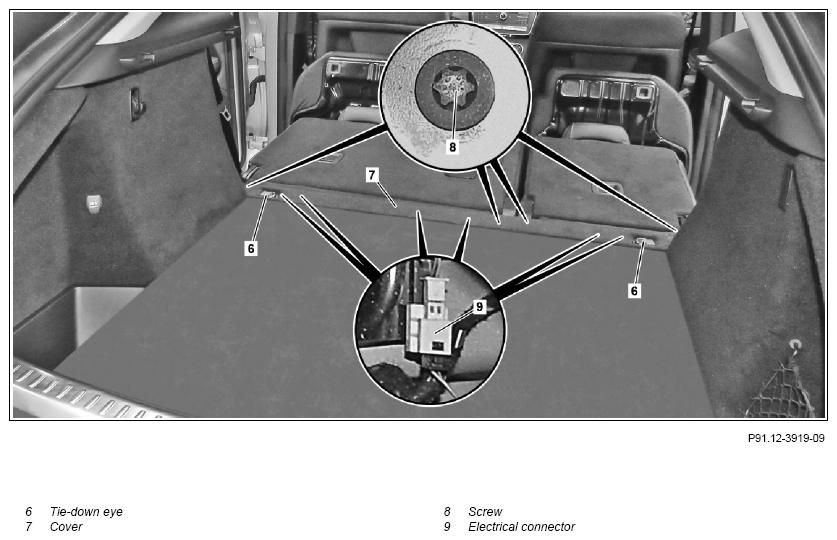

| 4 | Remove tie-down eyes (6) | *BA68.50-P-1002-03F | |
| 5 | Unclip and remove paneling (7) | ||
| 6 | Disconnect electrical connections (9) | ||
| 7 | Slightly fold backrest forward | ||
| 8 | Unclip and unthread electrical wiring harness from belt buckle (2) | Only on left backrest. | |
| 9 | Remove belt buckle (2) | Only on left backrest. | |
| 10 | Completely fold backrest forward | ||
| 11 | Remove screws/bolts (8) | *BA91.12-P-1001-03F | |
| 12 | Remove backrest (1) | ||
| 13 | Install in the reverse order |
CARGO RETAINERS
| Number | Designation | Model 292 | |
|---|---|---|---|
| BA68.50-P-1002-03F | Screw/bolt, tie-down eye to body/trunk floor | Nm | 24 |
REAR SEATS
| Number | Designation | Model 292 | |
|---|---|---|---|
| BA91.12-P-1001-03F | Screw/bolt, rear seat console to vehicle floor | Nm | 50 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 292 | |
|---|---|---|---|
| BA91.40-P-1007-01R | Bolt, belt end fitting/seat belt lock, rear seat on body/seat | Nm | 35 |
