Remove/Install Rear Seat Cushion - AR91.12-P-1021GQC
MODEL 292
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating range of the mechanism when moving components. | AS00.00-Z-0009-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

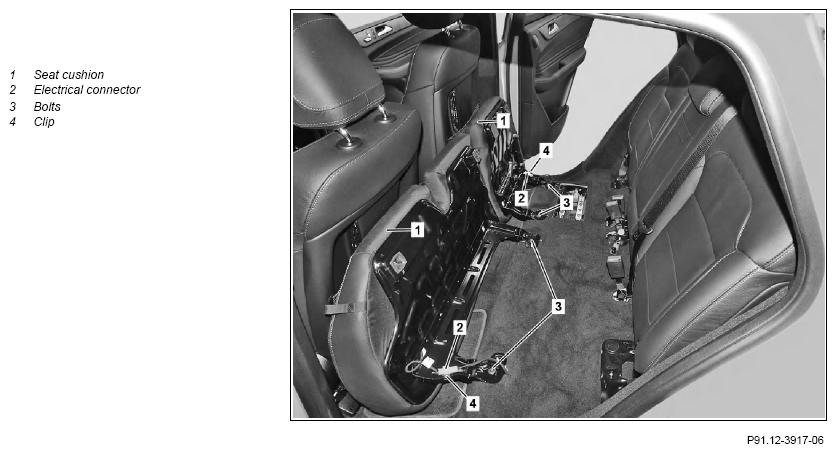

| 1 | Fold over seat cushion (1) | ||
| 2 | Disconnect electrical connection (2) | ||
| 3 | Remove clip (4) | ||
| 4 | Remove bolts (3) | *BA91.12-P-1001-03F | |
| 5 | Remove seat cushion (1) | ||
| 6 | Install in the reverse order |
REAR SEATS
| Number | Designation | Model 292 | |
|---|---|---|---|
| BA91.12-P-1001-03F | Screw/bolt, rear seat console to vehicle floor | Nm | 50 |
