Retrofit Rear Entertainment System - AN82.60-P-0013GQC

MODEL 292.3 with CODE 866 (Pre-installation for Rear Seat Entertainment System)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Preparatory tasks
1	Fabricate Rear Seat Entertainment system template and mark cutting area on front seats		AN82.60-P-0013-03GQC
	Remove
2	Remove head restraints from both front seats
		Model 292 with code 866 (Pre-installation for Rear Seat Entertainment System) except code 399 (Multicontour front seats with massage function)	AR91.16-P-0040GQA
		Model 292 with code 399 (Multicontour front seats with massage function) with code 866 (Pre-installation for Rear Seat Entertainment System) Head restraints are no longer required.	AR91.16-P-0040GQ
3	Remove left head restraint guides from both front seats	Model 292 with code 866 (Pre-installation for Rear Seat Entertainment System) except code 399 (Multicontour front seats with massage function)
			AR91.16-P-0050GQC
		Head restraint guides are no longer required.
4	Switch on ignition and store transmitter key outside of transmission range (min. 2 m)
5	Remove rear center console
			AR68.20-P-2020GQ
6	Remove center console
			AR68.20-P-2000GQ
7	Remove stowage box	Model 292 with code 581 (Automatic air conditioning) with code 866 (Pre-installation for Rear Seat Entertainment System) Model 292 with code 866 (Pre-installation for Rear Seat Entertainment System) with code 876 (ambient lighting)
			AR68.20-P-2320GQ
8	Remove cover on center console
			AR68.20-P-2350GQA
9	Remove lower control panel control unit
			AR54.21-P-1263GQ
10	Disassemble rear center console cover
			AR68.20-P-2150-01GQ
		Pliers	Fig 2
	Install
11	Install new left head restraint guides on both front seats
		Model 292 with code 866 (Pre-installation for Rear Seat Entertainment System) except code 399 (Multicontour front seats with massage function)	AR91.16-P-0050GQC
12	Retrofit wiring harness in center console		AN82.00-P-0010-01GQC
		Mounting wedge	Fig 1

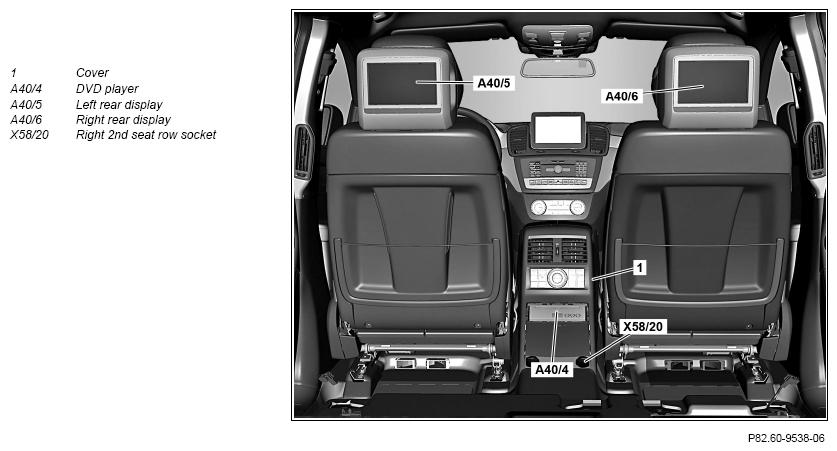

13	Assemble rear center console with new cover (1) and right 2nd seat row socket (X58/20)
			AR68.20-P-2150-01GQ
14	Retrofit left rear display (A40/5) and right rear display (A40/6)		AN82.60-P-0013-02GQC
15	Install lower control panel control unit
			AR54.21-P-1263GQ
16	Install cover on center console
			AR68.20-P-2350GQA
17	Install stowage box	Model 292 with code 581 (Automatic air conditioning) with code 866 (Pre-installation for Rear Seat Entertainment System) Model 292 with code 866 (Pre-installation for Rear Seat Entertainment System) with code 876 (ambient lighting)
			AR68.20-P-2320GQ
18	Install center console
			AR68.20-P-2000GQ
19	Install rear center console
			AR68.20-P-2020GQ
20	Retrofit DVD player (A40/4)		AN82.60-P-0013-01GQC
	Update Vehicle Documentation (VeDoc)
21	Delete code 866 (Preinstallation for Rear Seat Entertainment system) from online vehicle data card
22	Enter code 864 (Rear Seat Entertainment system) into online vehicle data card
23	Attach note "Rear Seat Entertainment system retrofitted as per "AN82.60-P-0013GQC" under field organization texts to design groups 68 and 82
24	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
25	Carry out variant coding using software calibration number (SCN)
			AR54.21-P-0015X
	Left rear display (A40/5) and right rear display (A40/6)
26	Enter corresponding country code	Menu item Rear audio/video unit/Left and right display.
27	Disconnect diagnostic system
	Check
28	Insert DVD into DVD player (A40/4) and check operation of rear entertainment system using remote control included in scope of supply

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Pliers (169 589 00 37 00)

Courtesy of MERCEDES-BENZ USA
