Retrofit Screen - AN82.60-P-0013-02GQC

MODEL 292 with CODE 866 (Pre-installation for Rear Seat Entertainment System)

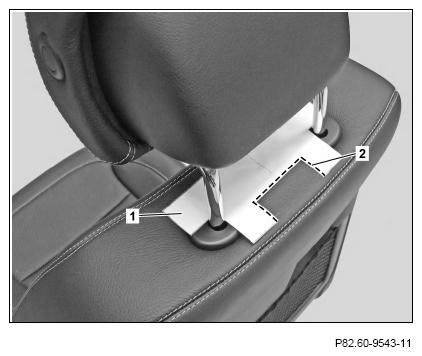

1. Cut cover and foam material of backrest along marked cutting line (2) and remove.

   Be very careful when cutting.

   Otherwise, the seat cover may be damaged in the visible area.

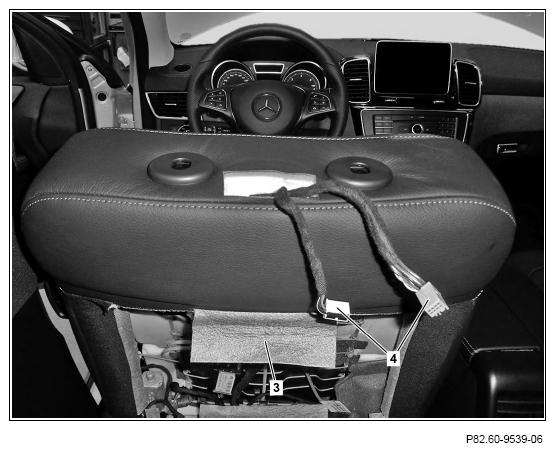

2. Unhook shackle from seat cover (3) on front seat backrest frame.
3. Route 8-pin connectors (4) through cutout in cover of backrest.

   The 8-pin connectors (4) are fixed in place with duct tape on the backrest frame.

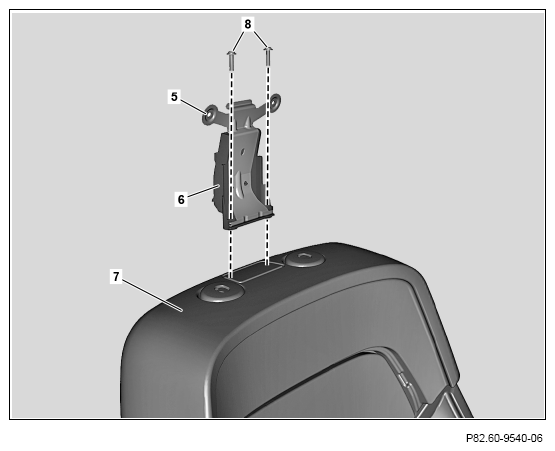

4. Position screen bracket (5) together with reinforcement (6) on the backrest frame.

   Carefully route screen bracket (5) together with reinforcement (6) through cover of backrest (7).

   Otherwise, the cover of the backrest (7) may tear at a visible area.

5. Screw in screws/bolts (8).
6. Slip shackle of cover on backrest (7), that was created when the seat cover was cut, inwards.

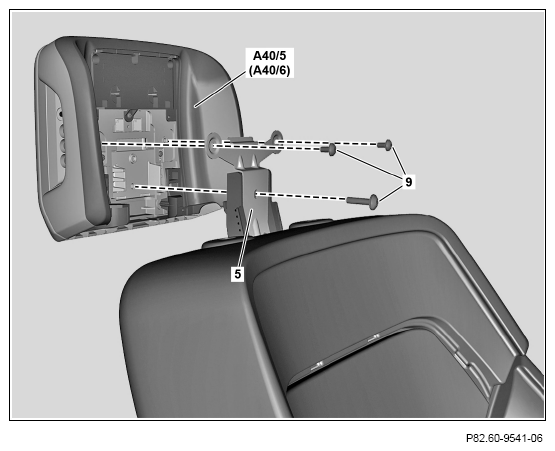

7. Secure left rear display (A40/5) or right rear display (A40/6) using screws/bolts (9) to screen bracket (5).

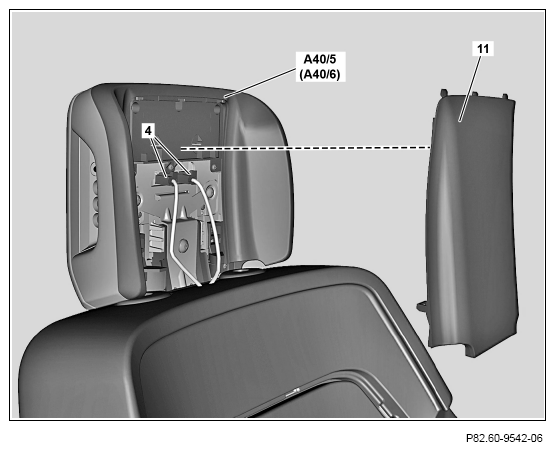

8. Connect 8-pin connectors (4) to left rear display (A40/5) or right rear display (A40/6).
9. Install cover (11).
10. Hook shackle for seat cover into front seat backrest frame again.
