Retrofit Wiring Harness In Center Console - AN82.00-P-0010-01GQC

MODEL 292.3 with CODE 866 (Pre-installation for Rear Seat Entertainment System)

Courtesy of MERCEDES-BENZ USA

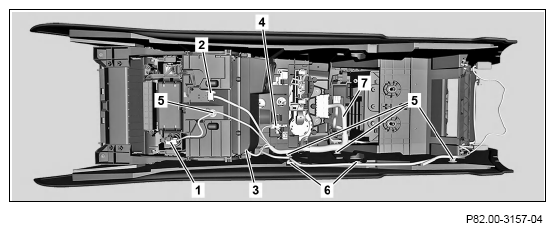

1. Disconnect electrical connector (1) from cigarette lighter with front ashtray illumination or 12 V socket.
2. Model 292.3 with code 311 (Temperature-controlled cup holder) Disconnect electrical connector (2) from cup holder.
3. Model 292.3 with code 876 (Ambiance illumination) Disconnect electrical connector (3) from cup holder.
4. Model 292.3 with code 889 (KEYLESS-GO) Disconnect electrical connector (4) from center console KEYLESS-GO antenna.
5. Detach cable tie with mounting clip (5) using from center console.
6. Unhook retaining clamps (6) from center console.
7. Remove center console electrical wiring harness (7) from center console.

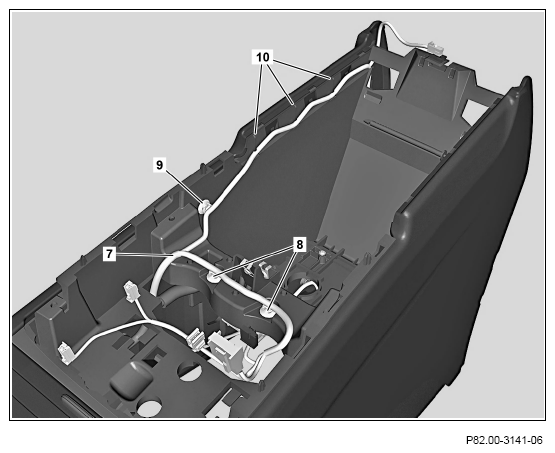

8. Detach cable tie with mounting clips (8) using console. from center
9. Model 292.3 with code 581 (Automatic air conditioning), Model 292.3 with code 876 (Ambiance illumination) Detach cable tie with mounting clip (9) using from center console.
10. Model 292.3 with code 581 (Automatic air conditioning), Model 292.3 with code 876 (Ambiance illumination) Unhook center console electrical wiring harness (7) from cable brackets (10).
11. Remove center console electrical wiring harness (7).
12. Install new center console electrical wiring harness with additional electric feed line for right 2nd seat row socket.

Use the routing diagram and the attachment points of the old center console electrical wiring harness as a basis.
