Retrofit Comand Online - AN82.85-P-0009GQC

MODEL 292.3 with CODE 3U1 (Head unit europe/CIS-states/Monoglei) with CODE 522 (Audio 20 radio) except CODE 531 (COMAND APS)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove

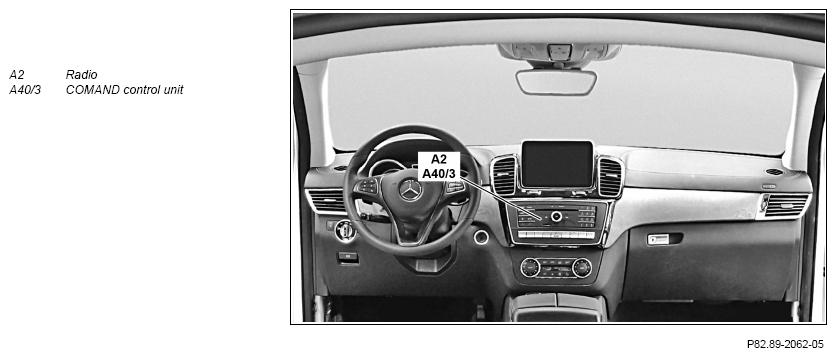

1	Remove radio (A2)
			AR82.60-P-7502GQ
		The radio (A2) is no longer required.
2	Remove upper control panel control unit.
			AR54.21-P-1262GQC
3	Remove 7-inch audio/COMAND display
		Model 292.3 except code 857 (8" display for Audio 20) The 7 inch Audio/COMAND display is no longer required.	AR82.60-P-7722GQC
4	Remove side air vent on driver side
			AR68.10-P-1100GQ
5	Remove instrument cluster and place onto instrument panel
		Position protective cover between instrument cluster and instrument panel. Otherwise, the instrument panel surface may be damaged. Do not disconnect electrical connector.	AR54.30-P-6015GQ
6	Remove glove compartment
			AR68.10-P-1400GQ
7	Remove cover below dashboard on driver's side
		Model 292.3## 2# except code 810 (Sound system) and except code 811 (Advanced sound system)	AR68.10-P-1500GQ
8	Disconnect battery ground line
		Model 292.3 except code 810 (Sound system) and except code 811 (Advanced sound system)	AR54.10-P-0003GZ
	Install
9	Retrofit WLAN antenna		AN82.85-P-0005-05GQC
10	Retrofit Bluetooth® antenna
11	Install wiring harness of additional fan for COMAND	Model 292.3 except code 810 (Sound system) and except code 811 (Advanced sound system)	AN82.85-P-0005-02GQC
	Notes on the use of paint scraping nuts on ground connections		AH00.19-P-1000-20A
		Cockpit ground point	*BA00.19-P-1002-01G
		New passenger car wiring harness repair kit	Fig 1
		Wiring harness repair kit, basic	Fig 2
12	Retrofit additional fan for COMAND	Model 292.3 except code 810 (Sound system) and except code 811 (Advanced sound system)	AN82.85-P-0005-01GQC
13	Retrofit 8-inch audio/COMAND display
		Model 292.3 except code 857 (8" display for Audio 20)	AR82.60-P-7722GQC
14	Mount upper control panel control unit to COMAND controller unit (A40/3)
			AR54.21-P-1262GQC
15	Install COMAND controller unit (A40/3)
			AR82.60-P-7502GQ
16	Install remaining parts
	Update Vehicle Documentation (VeDoc)
17	Delete special equipment in online vehicle data card	Code 522  (Audio 20 radio) Code 818  (Single CD drive)
18	Enter special equipment in online vehicle data card	Code 531  (COMAND APS) Code 815  (Single DVD drive)
19	Enter special equipment into the online vehicle data card	Model 292.3 except code 857 (8" display for Audio 20) Code 857  (8" display for audio 20)
20	Attach note "COMAND Online retrofitted as per AN82.85-P-0009GQC " under field organization texts to design group 82
21	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
22	Carry out variant coding using software calibration number (SCN)
		SAM control unit Instrument cluster COMAND controller unit (A40/3) Communications module	AR54.21-P-0015X
23	Carry out variant coding using software calibration number (SCN)	Model 292.3 with code 218 (Reversing camera) Backup camera
24	Carry out variant coding using software calibration number (SCN)	Model 292.3 with code 501 (360° camera) 360° camera control unit
25	Carry out variant coding using software calibration number (SCN)	Model 292.3 with code 22P (Lane package) Multifunction camera Radar sensors
26	Carry out variant coding using software calibration number (SCN)	Model 292.3 with code 23P (Driving Assistance package Plus) Stereo multifunction camera Radar sensors
27	Disconnect diagnostic system
			AD00.00-P-2000-04A
	Check
28	Perform function test	See COMAND controller unit operator's manual.

Fig 1: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA
